ATC P6

AudioStereo logo

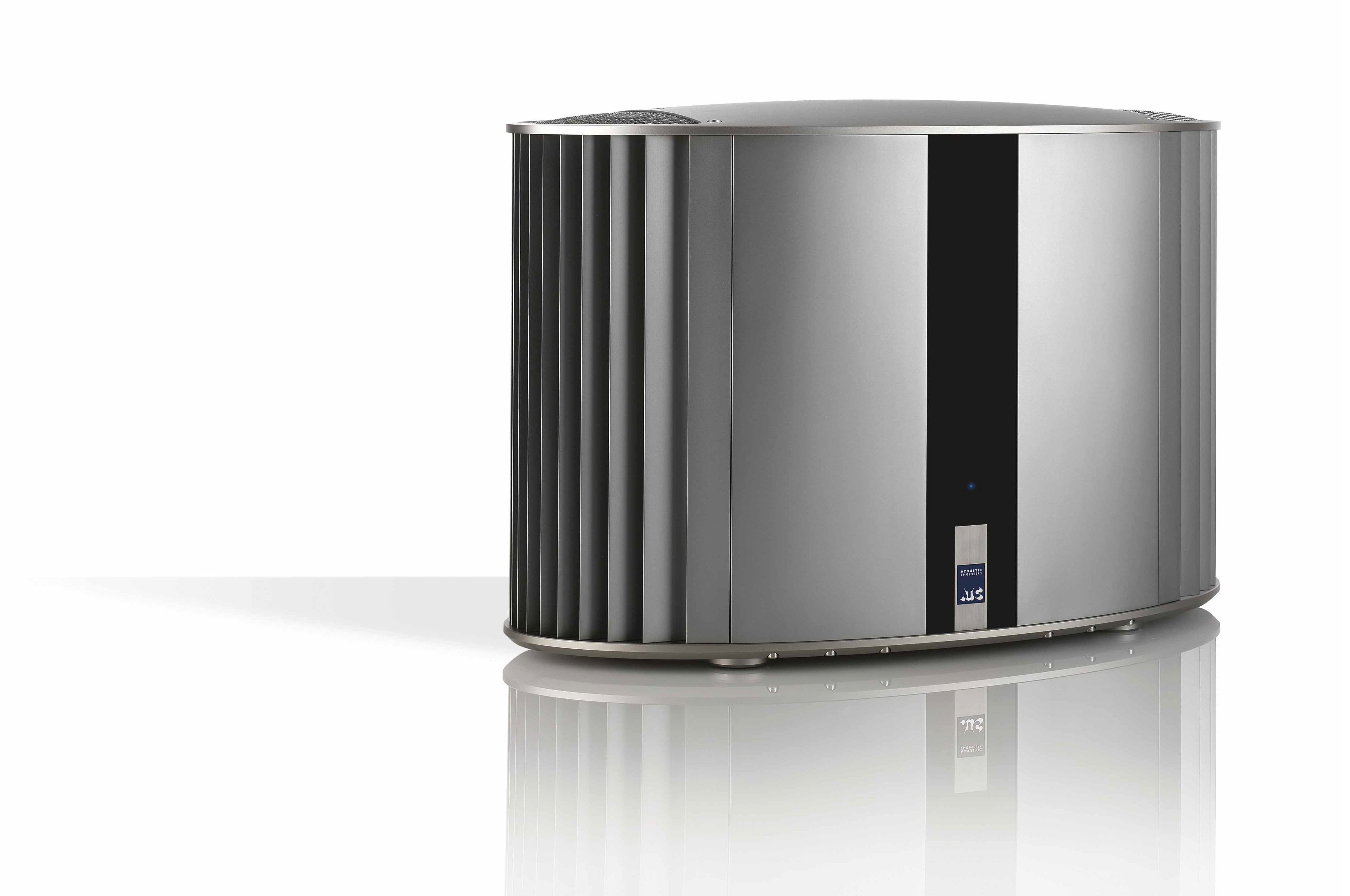

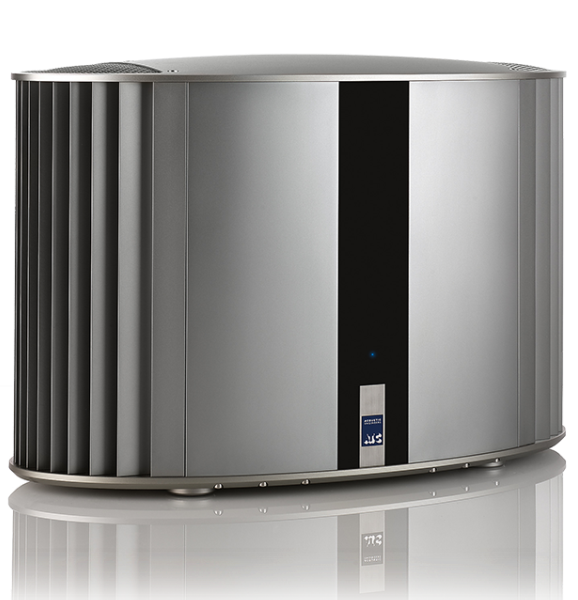

ATC P6 stereo power amplifier

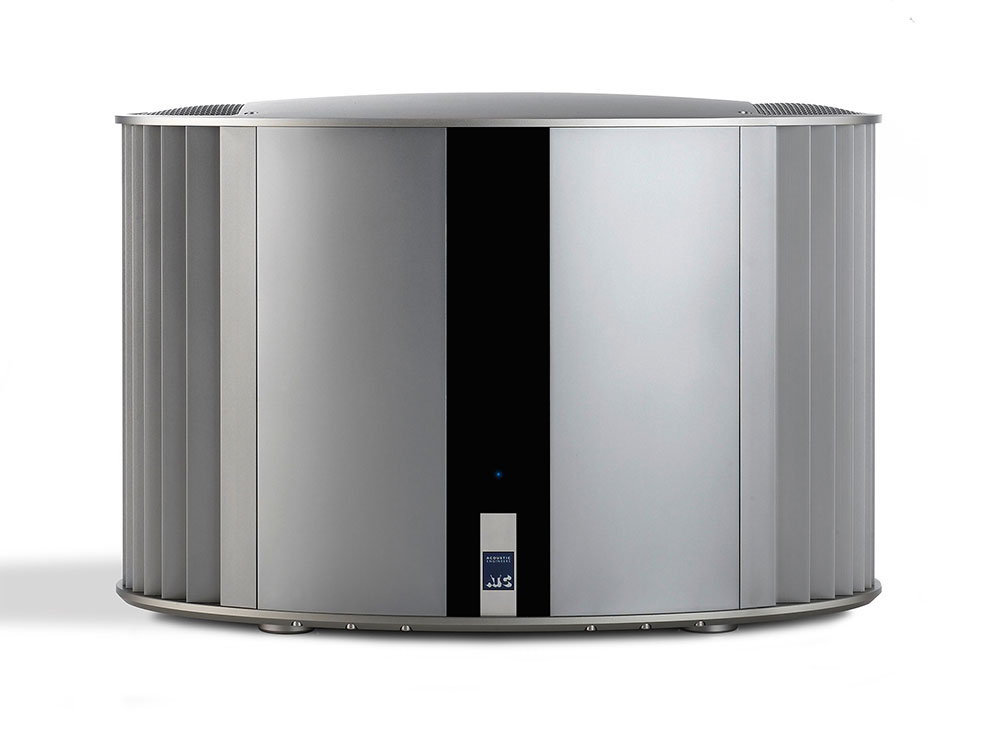

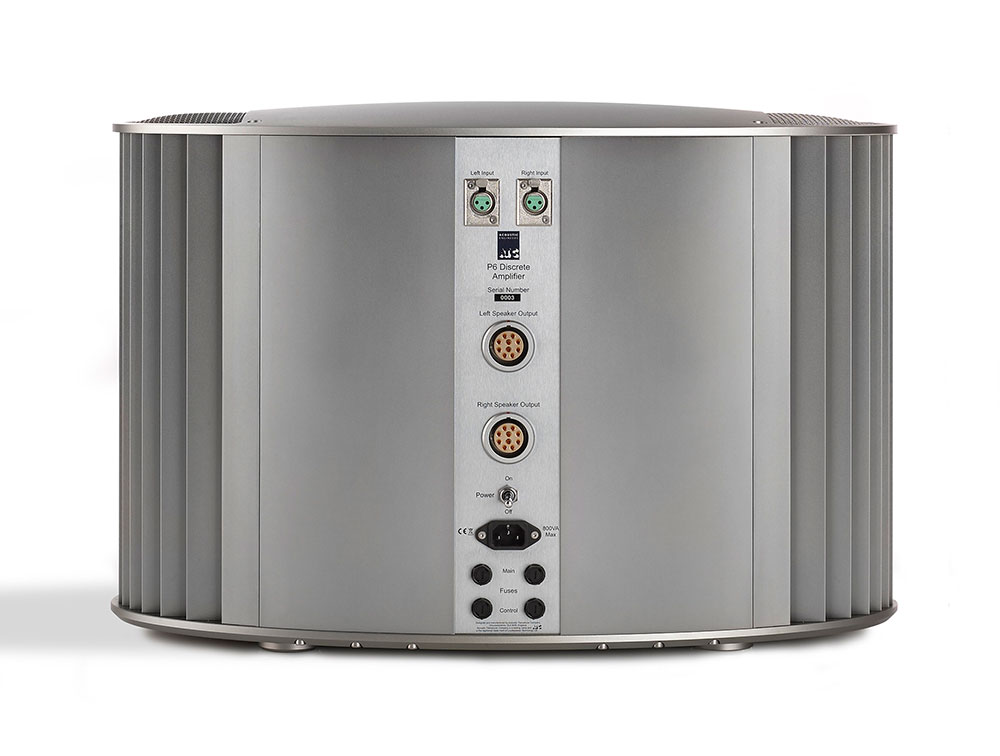

ATC P6 front ATC P6 side ATC P6 back

£19750



ATC P6 Features:

  • Dual-Mono active 3-way design (total 6 channels)
  • 2 x 350W total output power: 2x (200W LF +100W MF + 50W HF)
  • Ultra low noise discrete design throughout
  • 3-way active crossovers with phase equalization
  • Billet and extruded aluminium chassis construction
  • 6 year warranty
  • Designed and built by ATC to provide dedicated amplification and optimally matched active crossovers for the SCM 150 ASLT LE
  • Can be used with all ATC 3-way products with an ATC adaptor kit

Specifications

Output Power (RMS): HF: 2x 50 Watts into 6 ohm, MF: 2x 100 Watts into 16 ohms, LF: 2x 200 Watts into 8 ohms
Input Sensitivity: 1V RMS
Input Impedance: 5k ohms
Frequency Response: 5Hz – 200KHz ±0.1dB (ignoring mid amp filters)
Signal/Noise Ratio: Better than 105dB
TDH: Better than 90dB/0.0032%
Filters: All active with overload protection
Crossover Frequencies: 380Hz and 3.5kHz
Power Requirements: Voltage: 110, 115, 230 (factory set)
Frequency: 50/60Hz (region dependent, factory set)
Dimensions (HxWxD): 427 x 634 x 318 mm
Weight: 50.5kg
Power Requirements: Voltage : 110, 115, 230V (factory set), Frequency : 50/60Hz (factory set)
Suitable Preamps:  ATC SCA2, CA2 Mk2, CDA2 Mk2

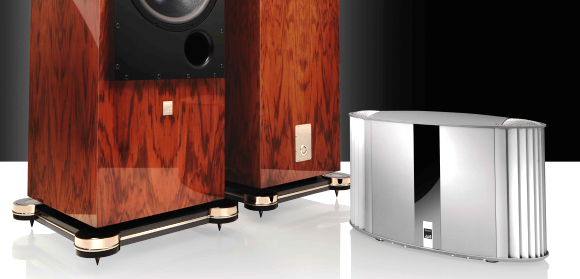

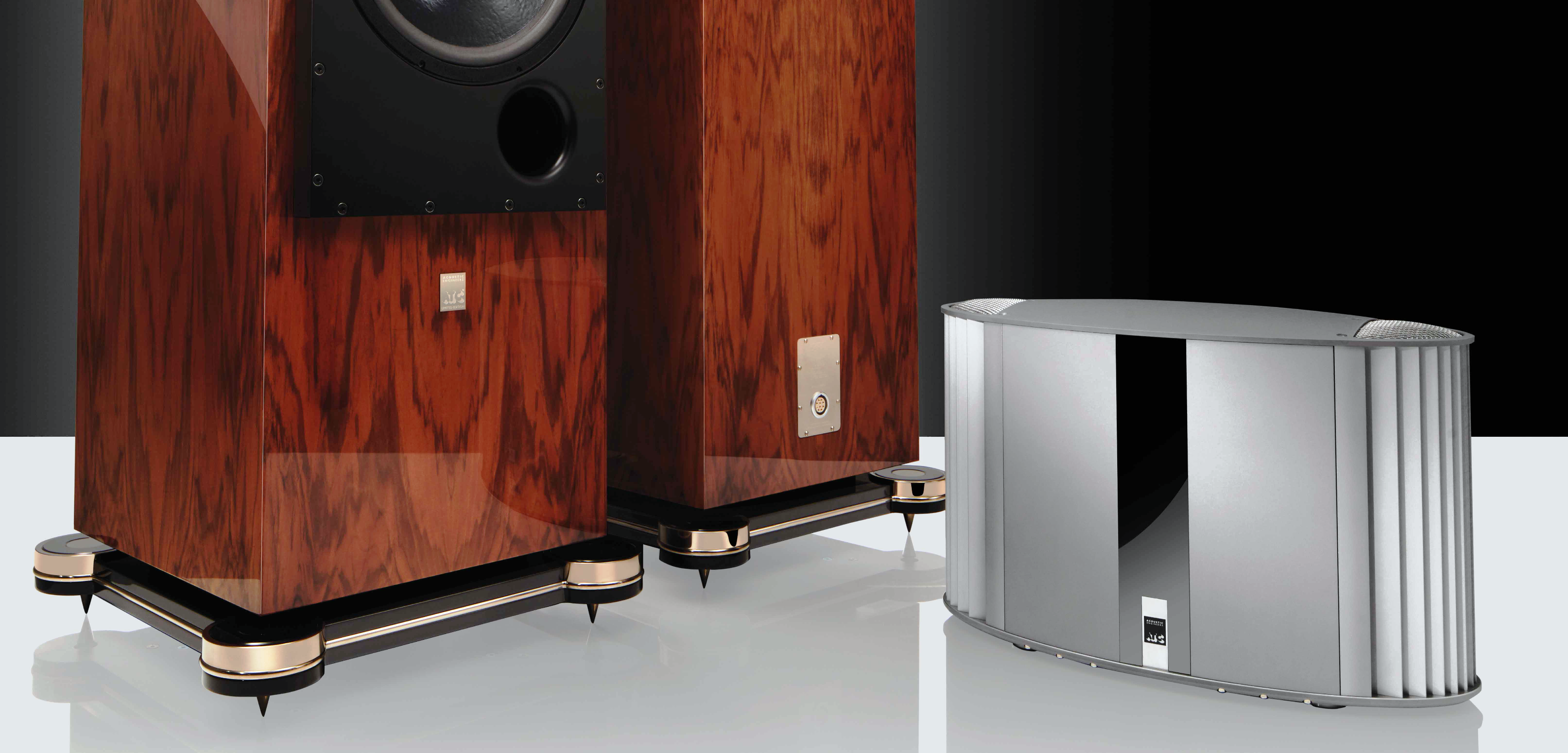

ATC SCM 150 ASLT LE loudspeakers and P6 active power amplifier
ATC SCM 150 ASLT LE loudspeakers and P6 active power amplifier

ATC SCM 150 ASLT LE brochure
Brochure



Stereo Setup - partnering electronics

ATC SCA2 Preamplifier ATC CDA2 DAC-Preamplifier ATC CA2 MK2 Preamplifier
SCA2 CDA2 Mk2 CA2 MK2

Stereo Setup - partnering loudspeakers

ATC SCM 50 SE Stereo Setup
ATC SCM 100 SE Stereo Setup ATC SCM 150 LE Stereo Setup
SCM 100 SE SCM 150 SE
