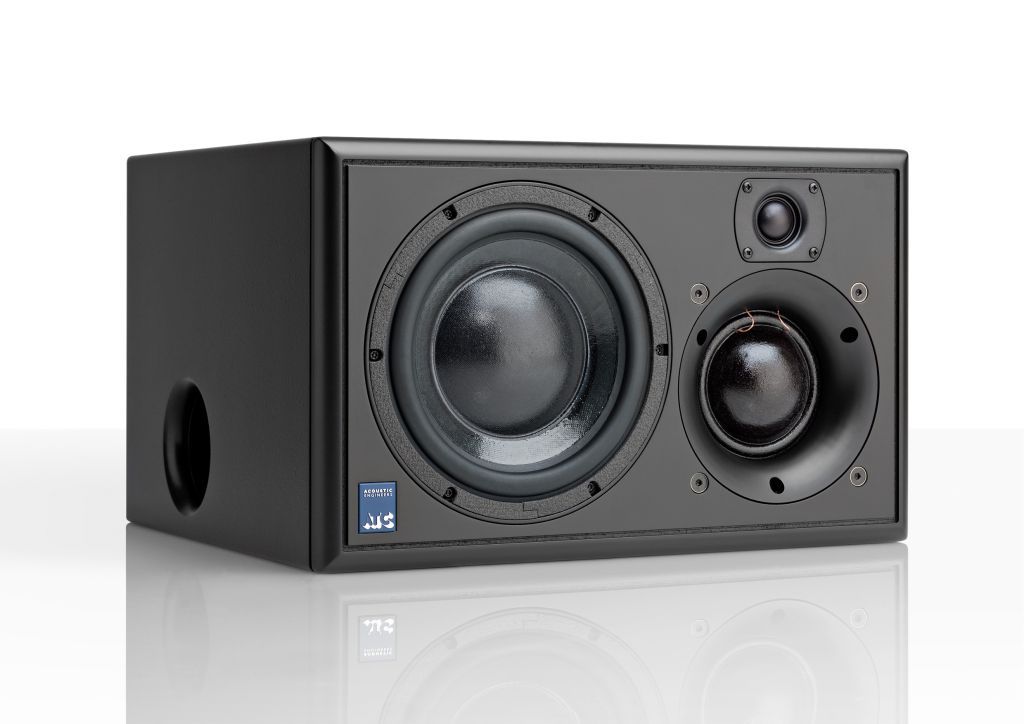

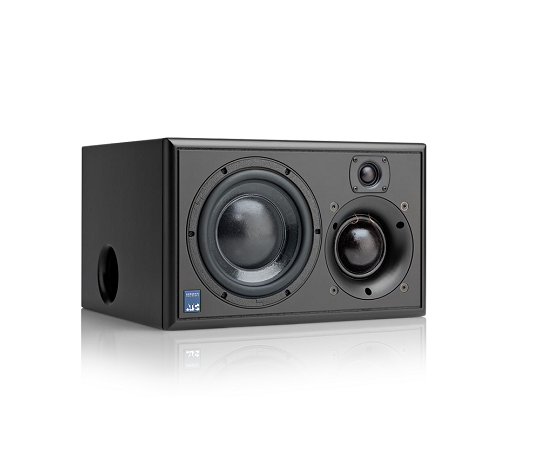

ATC SCM 25A Pro

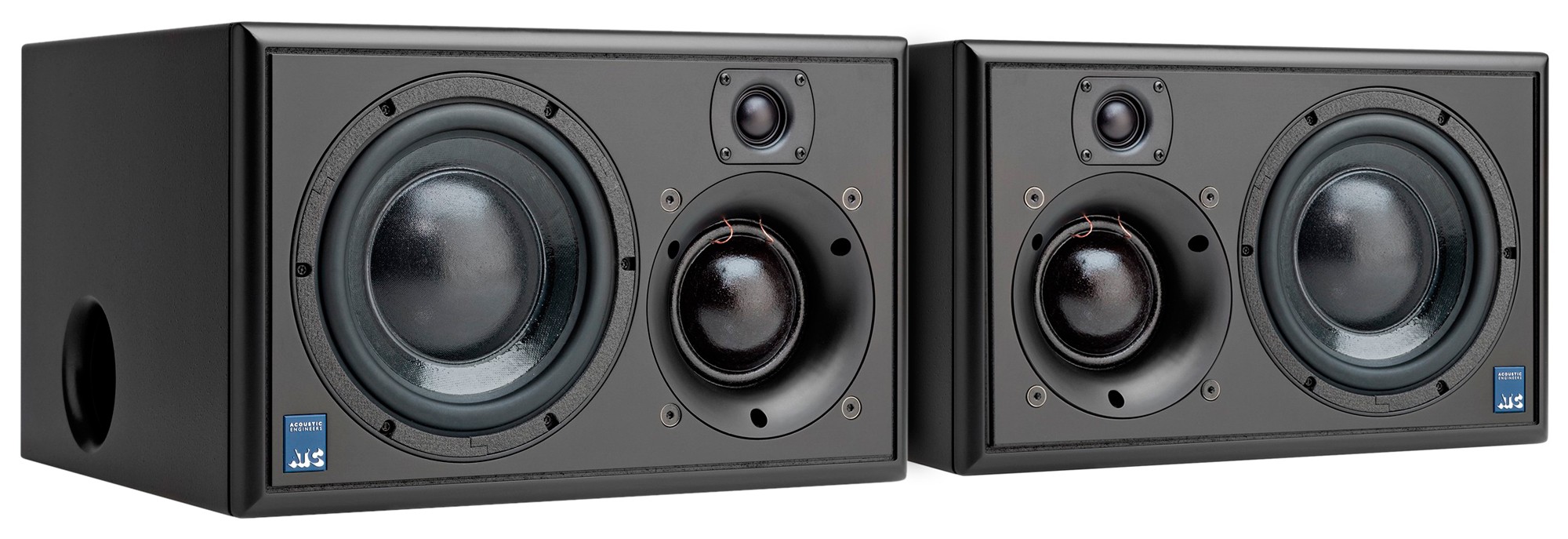

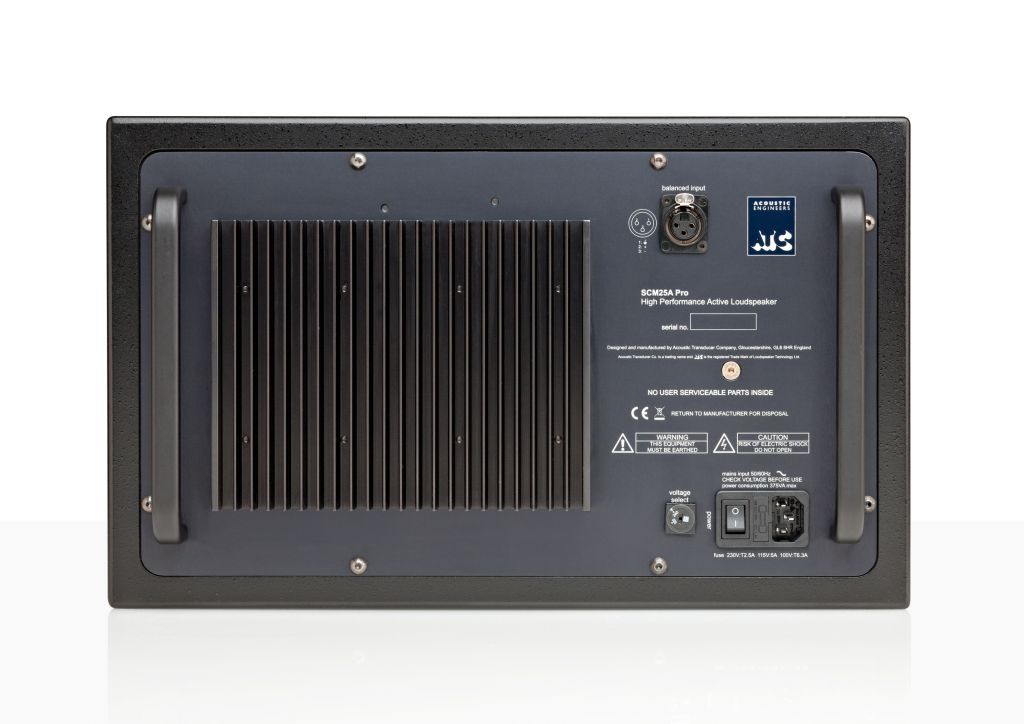

  ATC SCM 25A Pro back ATC SCM 25A Pro back ATC SCM 25A Pro pair

£7440

ATC SCM 25A Pro: compact very high performance active 3-way studio monitor

Designed for positioning on a meter bridge, or rack-mountable for broadcast applications, the ATC SCM 25A Pro offers very high-performance in the most compact possible form factor.

The SCM 25A Pro features a built in three way amplifier with frequency, gain and phase correction which has been individually optimised at the ATC manufacturing facility. Adjustment of input sensitivity and bass boost are available to the user via controls on the rear panel of the unit.

ATC has become synonymous with active systems. Choosing to offer active loudspeakers (where the passive crossover network is replaced by active filters and multiple power amplifiers) is simply a result of the uncompromising attitude to loudspeaker design.While passive systems still have their place, and ATC engineering skills can still bring remarkable results from them,“active” is a fundamentally better solution to the problems posed by accurate, high level music reproduction.The ATC instinct is always for the better solution. Not cheaper, not quicker, but better.

It was the development of active loudspeakers that first brought ATC into electronics design and engineering. Active speakers demand multiple power amplifiers so ATC from the mid 1980s became not just a loudspeaker manufacturing company but an electronics manufacturer too.The further step from electronics for active speakers to a range of stand-alone amplifier products was natural and now means that ATC engineering is available from the recording desk or CD player output to the ears.

From modest beginnings ATC has grown to become one of the very few manufacturers successful across both domestic and professional audio. By selecting ATC you join a group of music lovers, professional audio engineers, studios and musicians across theWorld that understand and value the engineering that goes into an ATC product - and the sound that comes out.

ATC SCM 25A Pro Features:

  • Compact very high performance active 3-way studio monitor
  • 25mm neodymium soft dome tweeter.
  • ATC hand built 75mm soft dome mid driver.
  • ATC hand built 180mm carbon-paper cone bass driver.
  • Discrete MOSFET class A/B tri-amp pack with 150W/60W/25W continuous power output
  • Compact size with high output and low cut-off frequency.
  • 19˝ rack mountable.
  • 6 year warranty.
ATC SCM 25A Pro Dome midrange ATC SCM 25A Pro SC bass
Dual Suspension Dome Midrange 180mm SC Bass Driver

Specifications

Drivers: HF 25mm soft dome, Mid 75mm ATC Soft Dome, LF 180mm ATC short-coil carbon-paper cone
Amplitude Linearity (±2dB): 74Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 47Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max. Continuous SPL (1 metre): 109dB
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V rms (ref. full output)
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output Power: Bass 150W rms, Mid 60W rms, High 25W rms
Crossover Frequencies: 380Hz & 3.5Khz
Crossover Filters: 4th order critically damped with phase compensations
Low Frequency Boost: 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer)
Overload Protection: Active FET momentary gain reduction
Dimensions (HxWxD): 264 x 430 x 369mm.  Handles add an 39mm to depth.
Weight: 30k (per cabinet)


ATC SCM 25A Pro datasheet ATC SCM 25A Pro user manual
Datasheet Manual

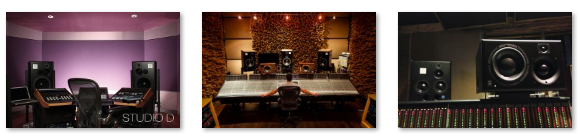

ATC PRO Users

  ATC Loudspeakers

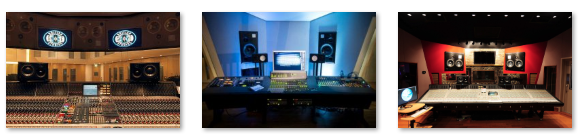

ATC PRO Users
