ATC SCM 150 SLT

AudioStereo logo

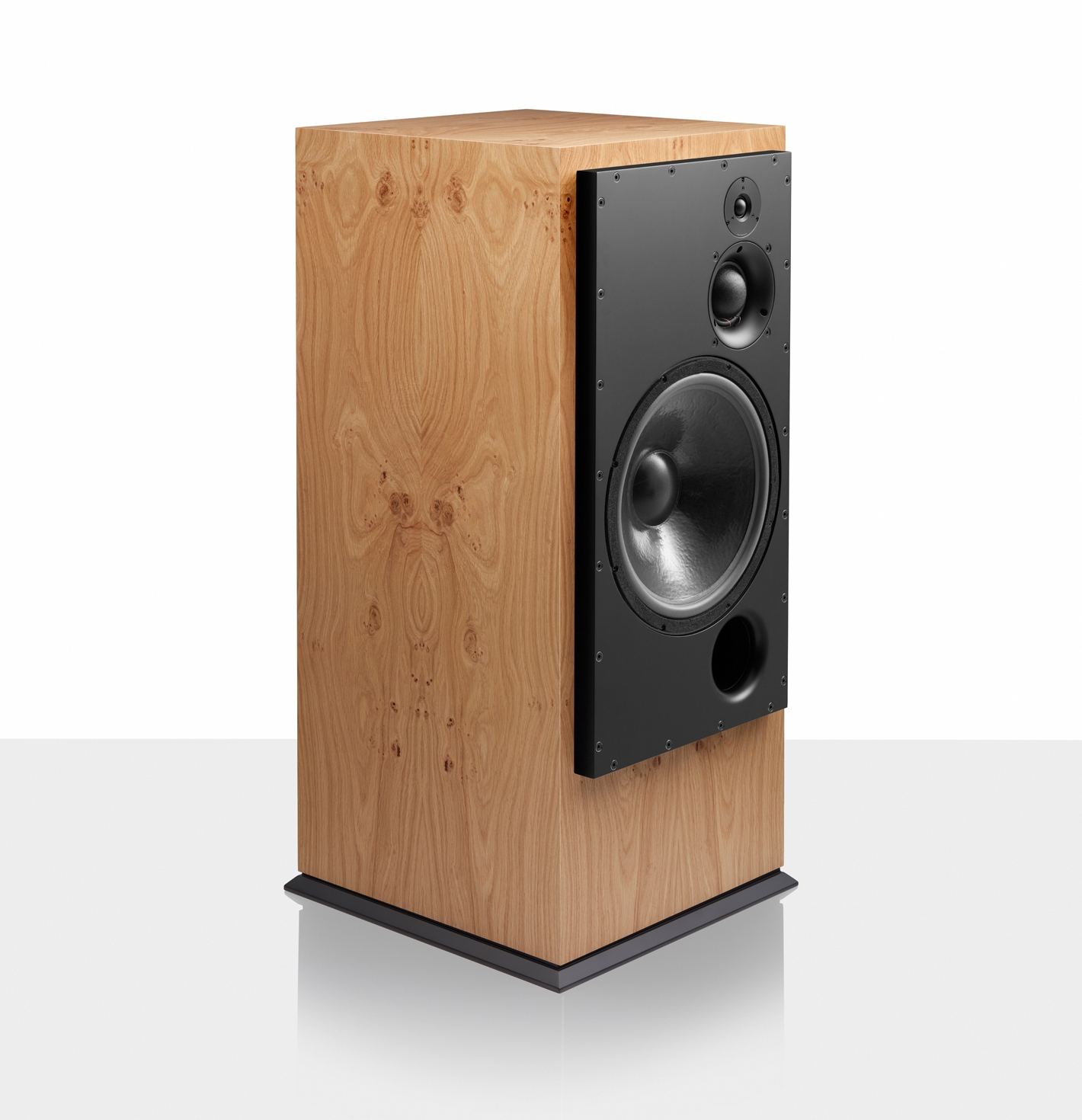

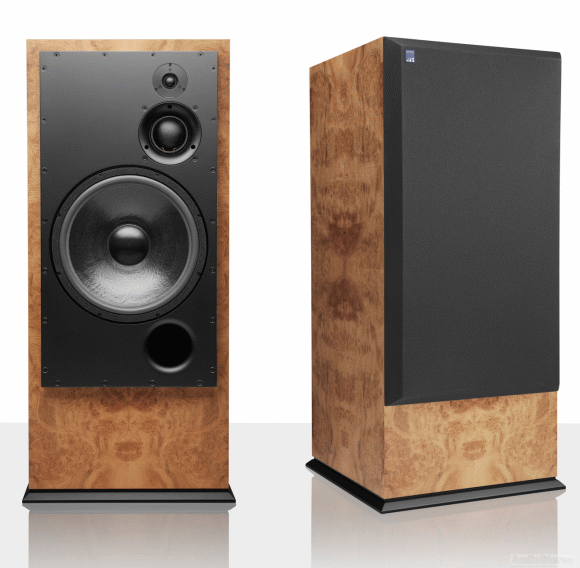

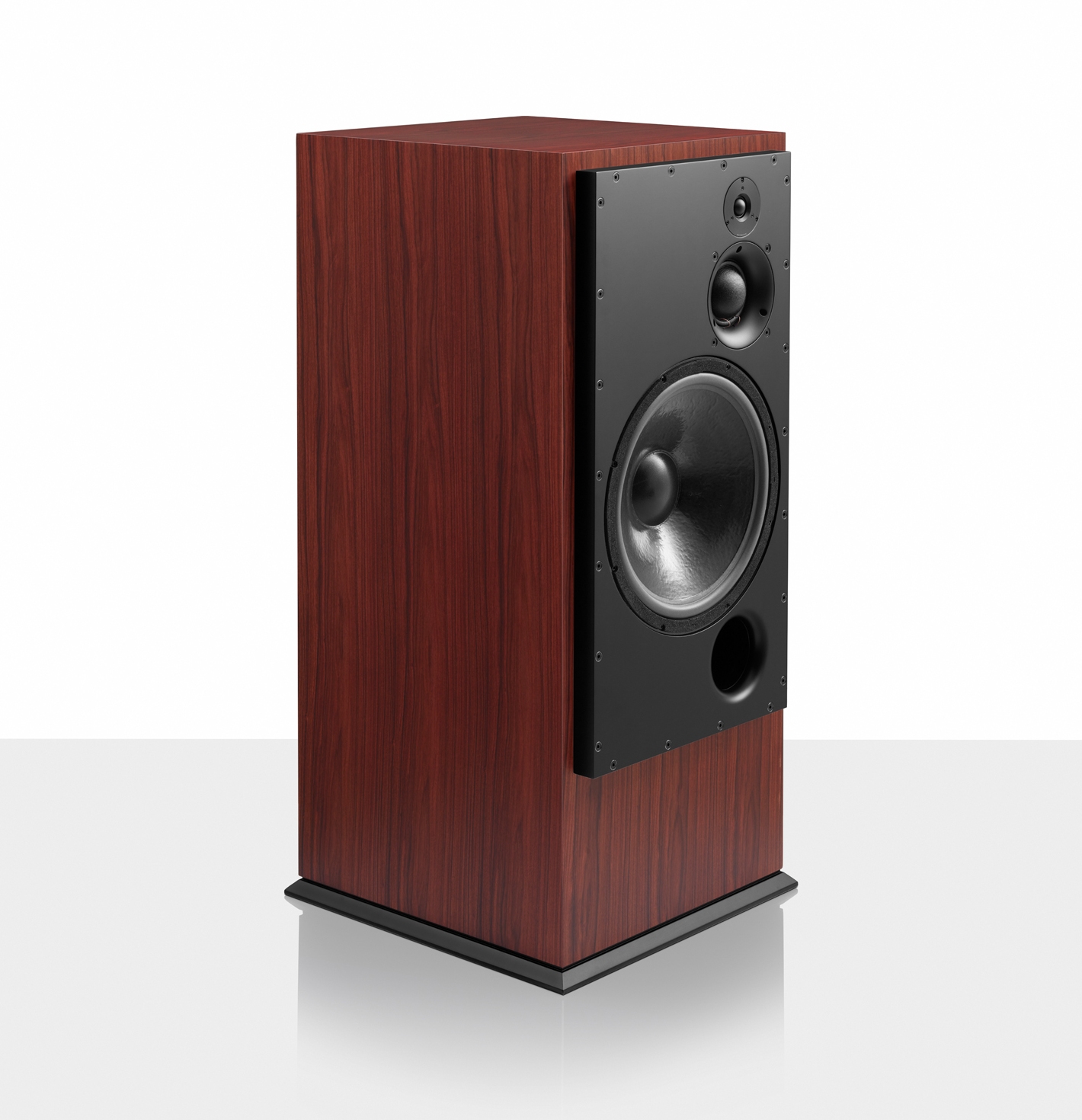

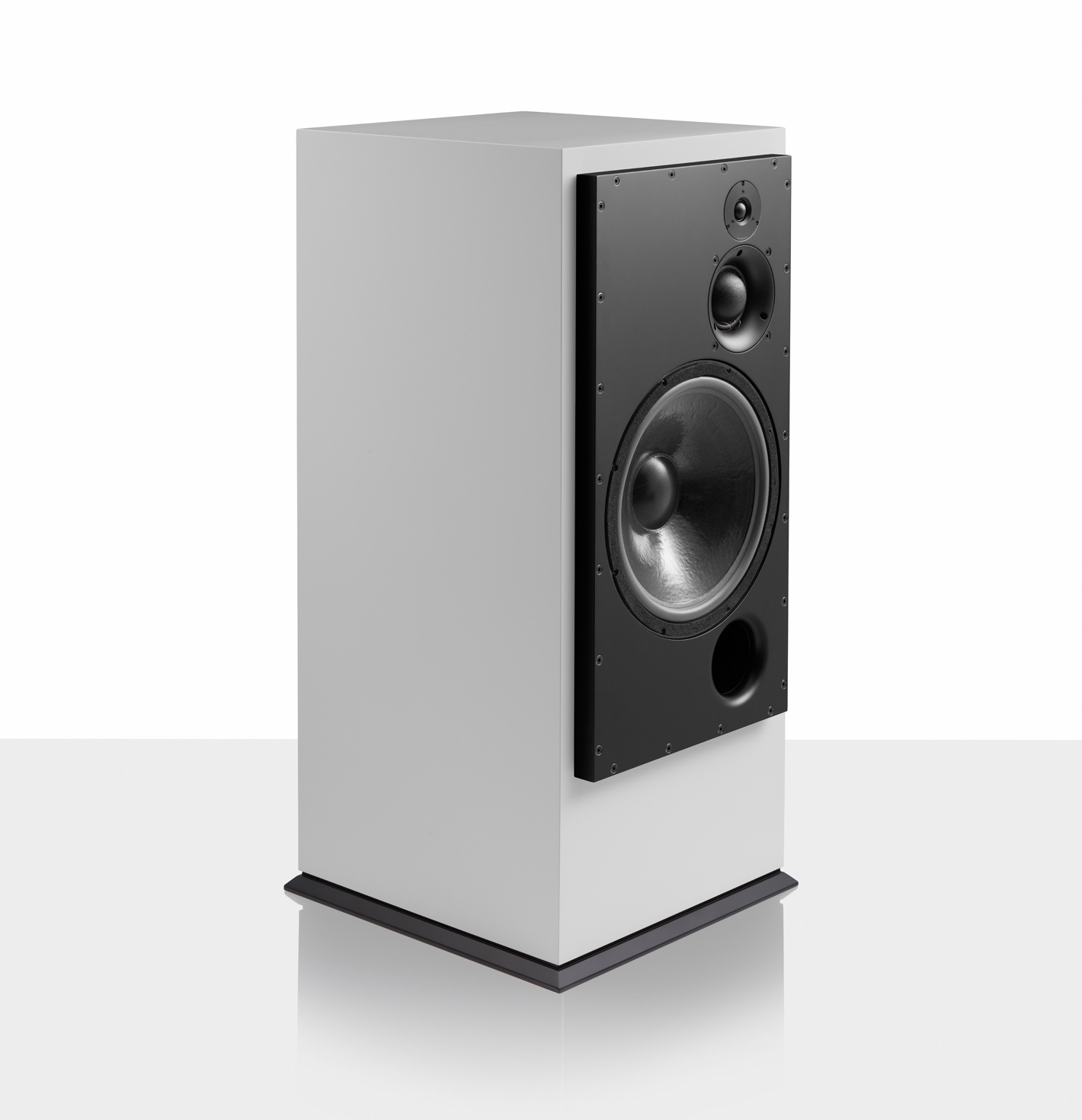

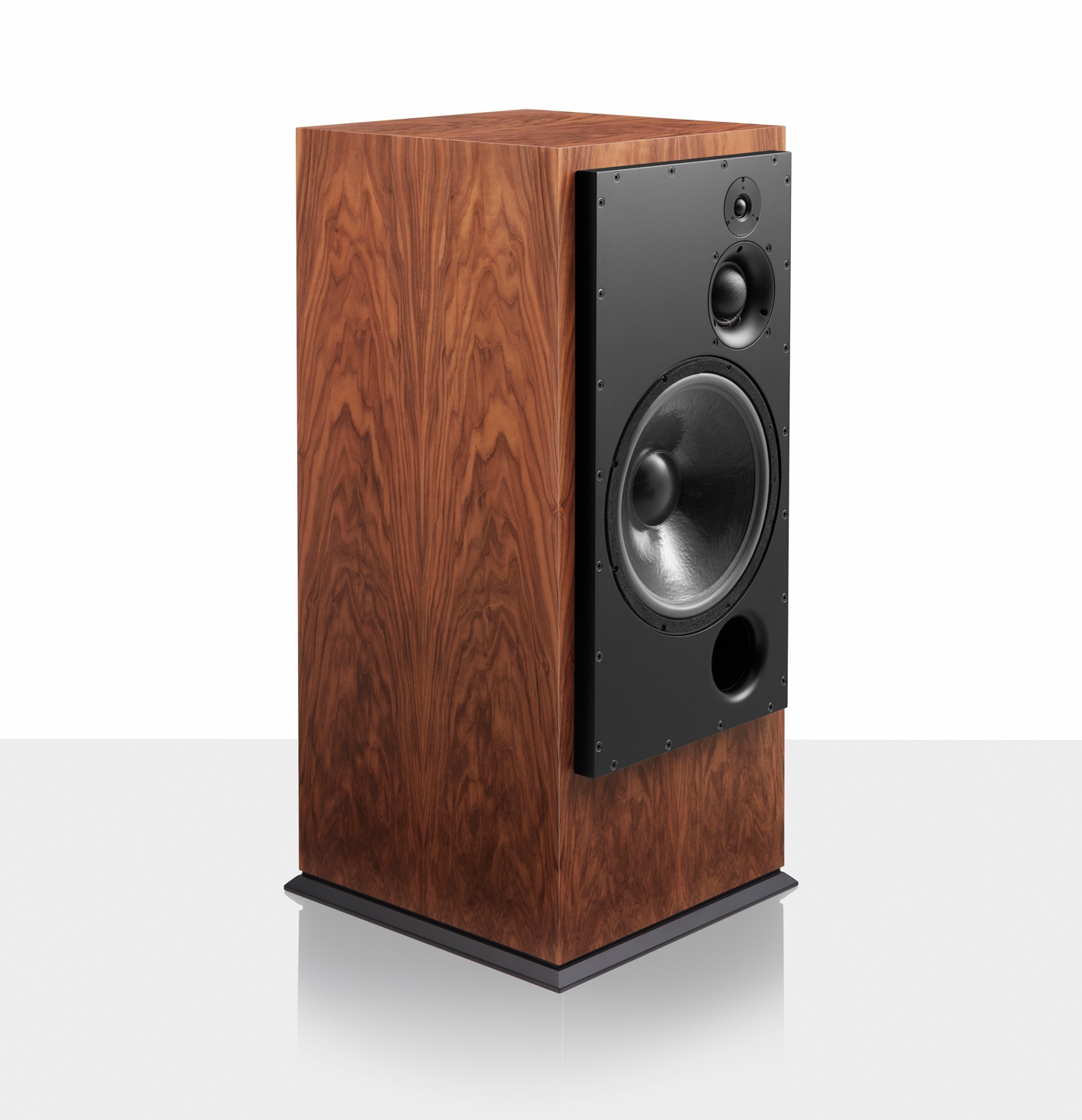

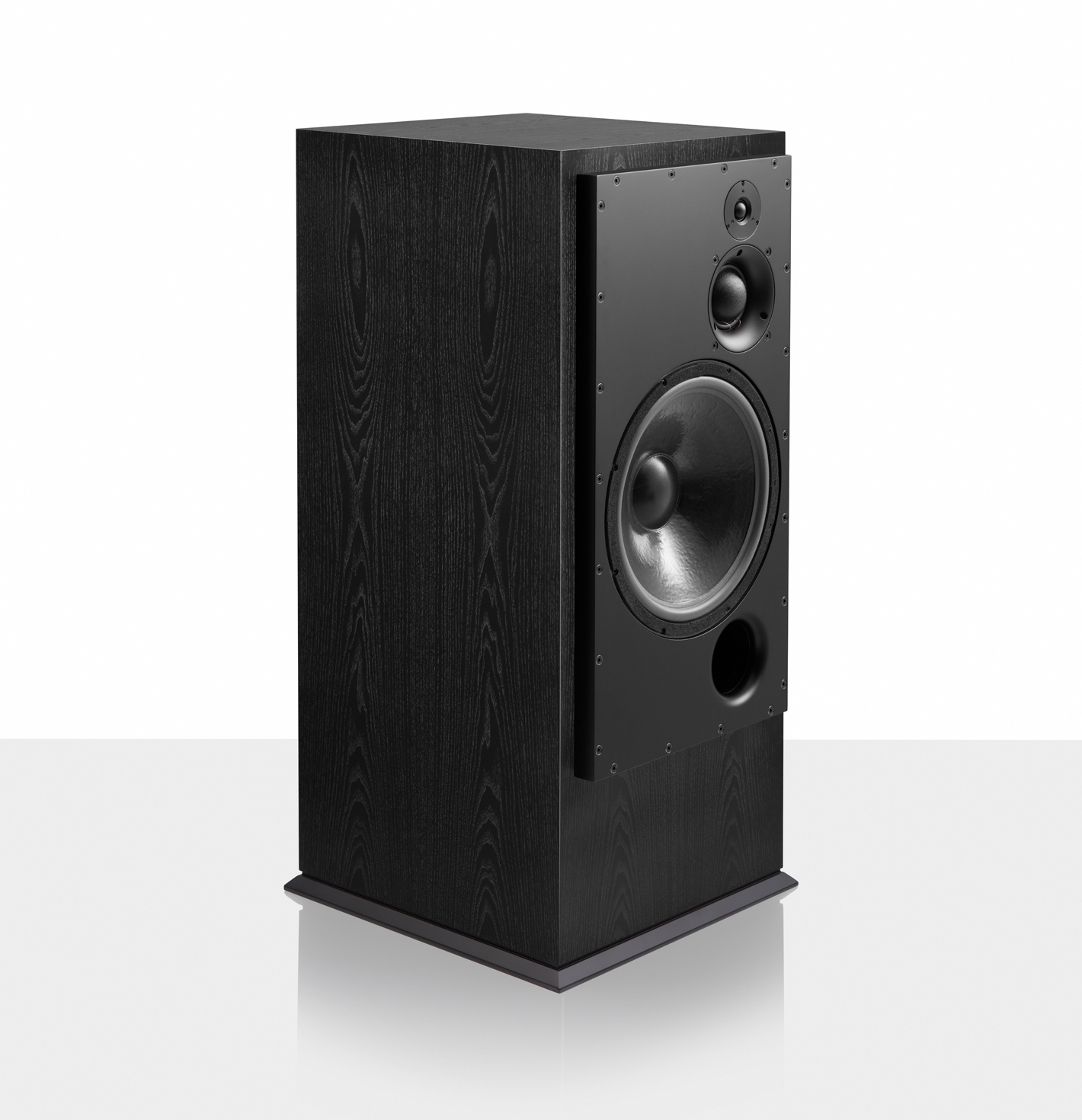

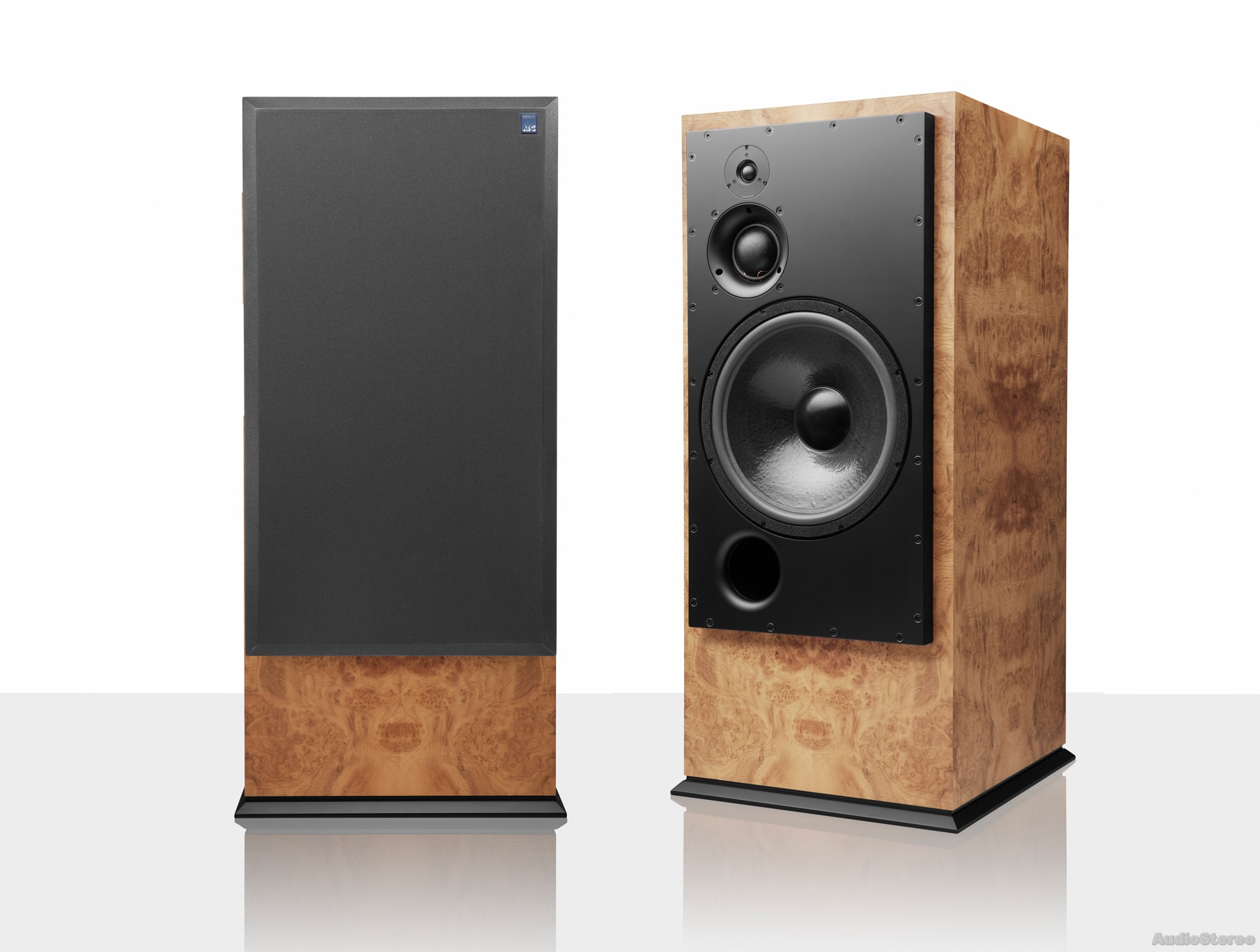

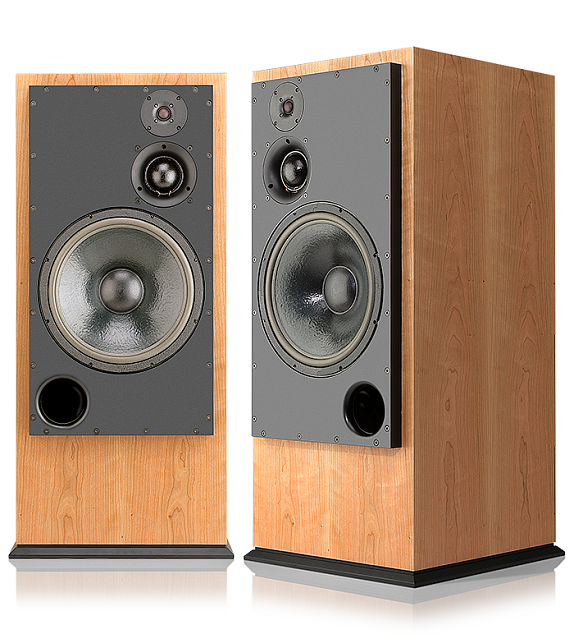

ATC SCM 150 SLT - Tower Series

£18700

ATC SCM 150 SLT Features:

  • New ATC designed and built dual suspension no ferrofluid 25mm Super Dome tweeter
  • ATC 75mm Super Dome midrange
  • Latest 375mm SL Spec Bass driver
  • Massive ATC motor assembly
  • Wide, even dispersion for pin-point imaging
  • The monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S Super Dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all performance parameters.
ATC SCM 150 Super Dome tweeter ATC SCM 150 Super Dome midrange driver ATC SCM 150 Super Linear bass
ATC SCM 150 SLT drivers

Specifications

Drivers: HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 375mm ATC Super Linear
Frequency Response (±2dB): 60Hz–17kHz
Frequency Response (±6dB): 25Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity (sine wave): 90dB @ 1W @ 1m
Max SPL: 117dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Binding Posts/ 4mm banana plugs, tri-wire capable
Recommended Amplifier Power100 to 1500 Watts (see ATC SPA2-150)
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 1104 x 495 x 635 mm
Weight: 77kg

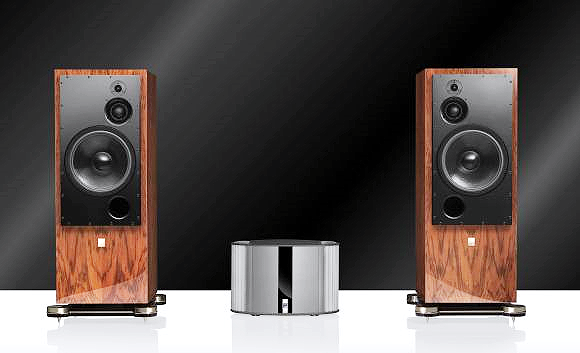

ATC SCM 150 SLT Stereo Setup ATC SCM 150 SLT Stereo Setup
ATC SPA2-150 Power Amplifier Cyrus Lyric
SPA2-150 Lyric
Cyrus Mono X 300 Signature DAYENS Ecstasy IV Power Amplifier
Mono X 300 Sig
