ATC SCM 50 SLT

AudioStereo logo

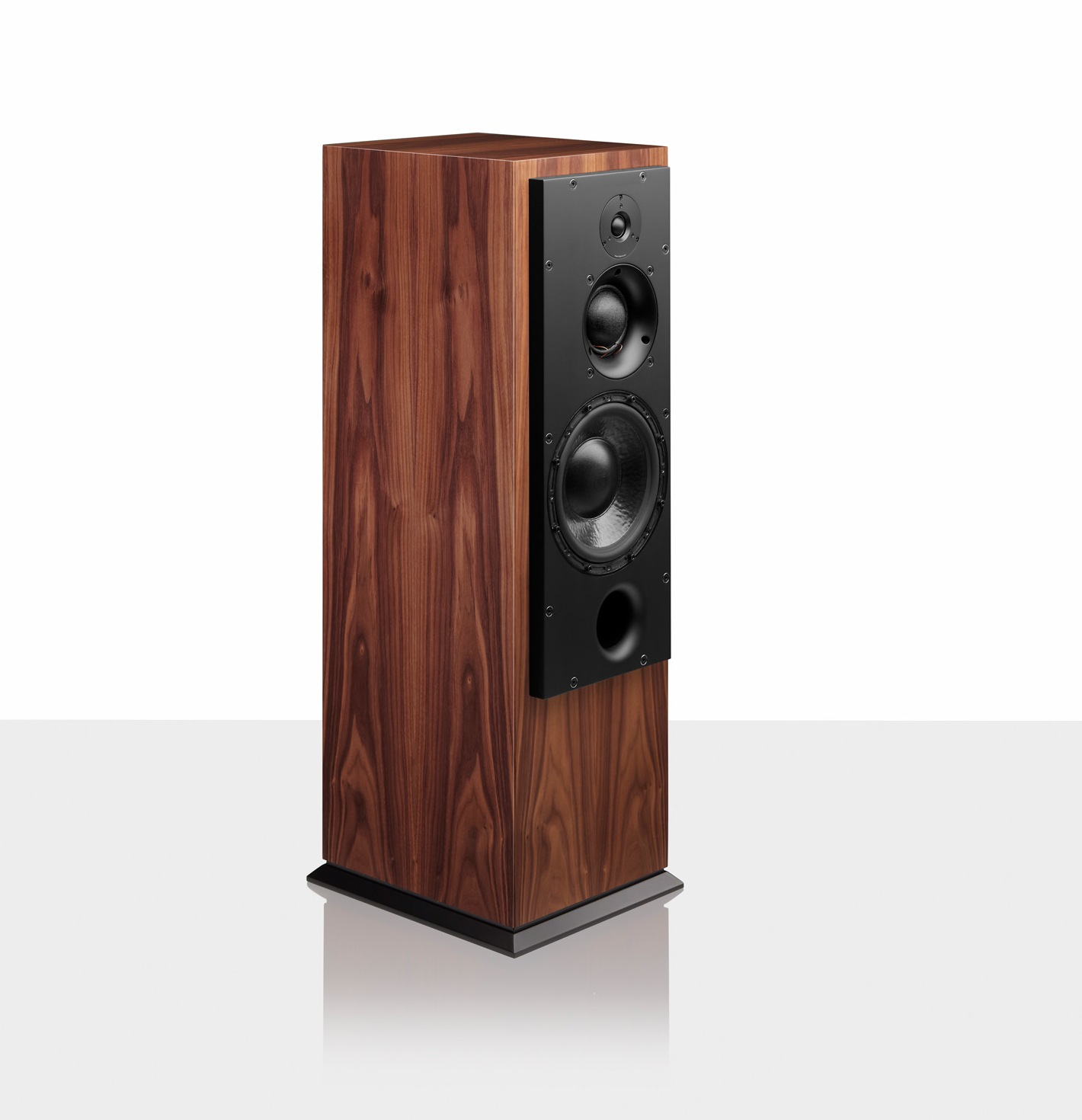

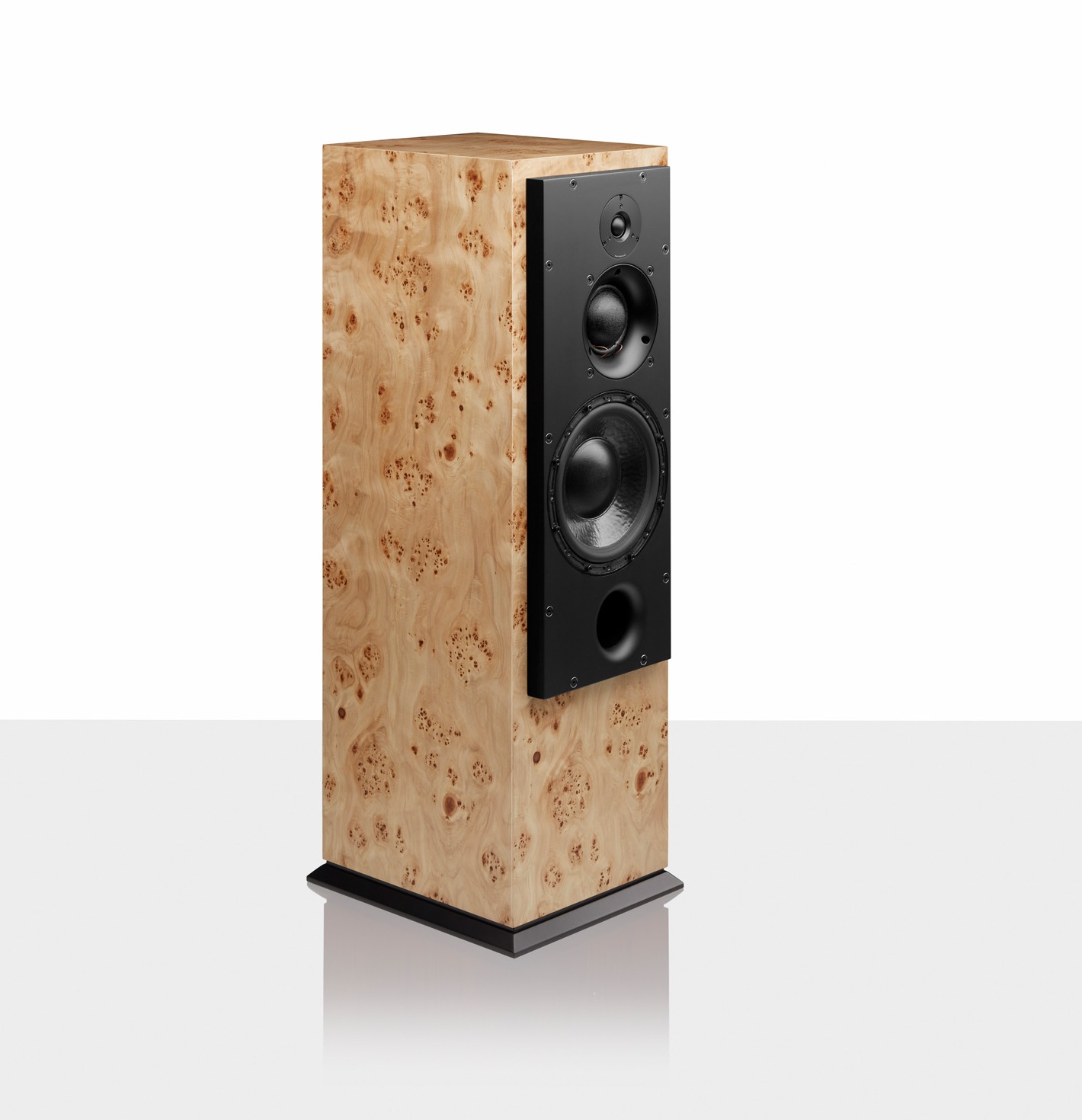

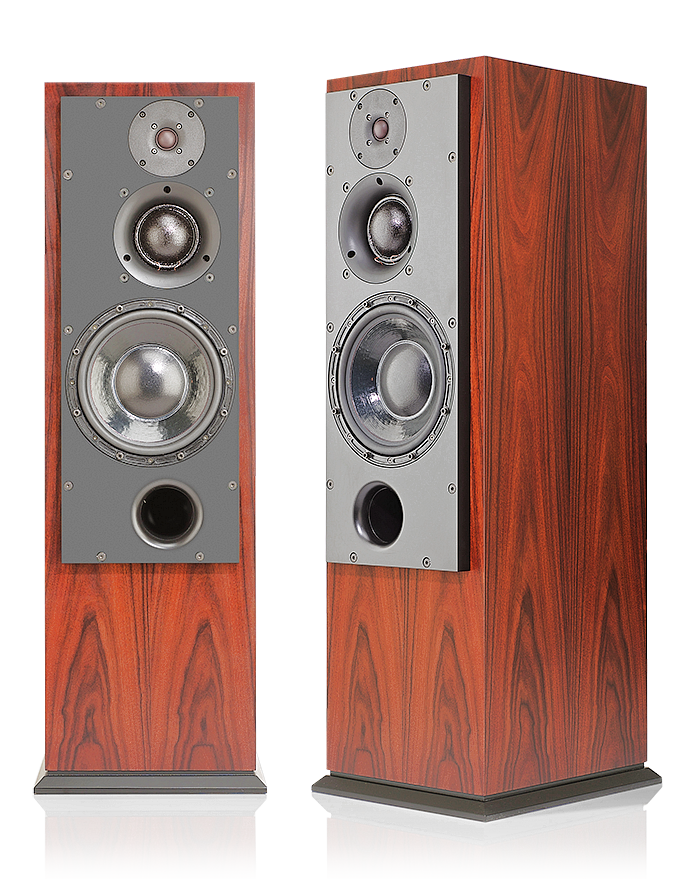

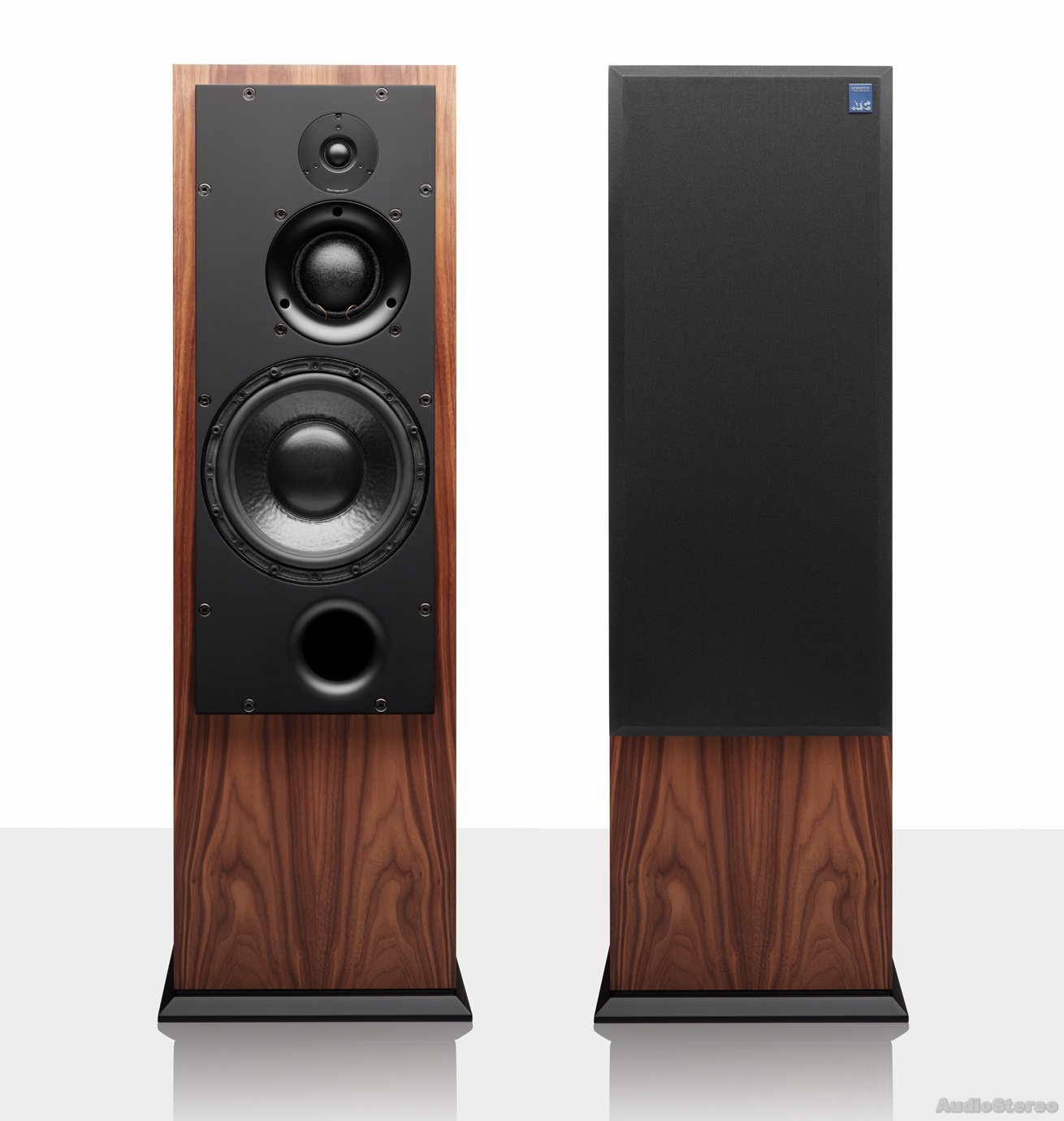

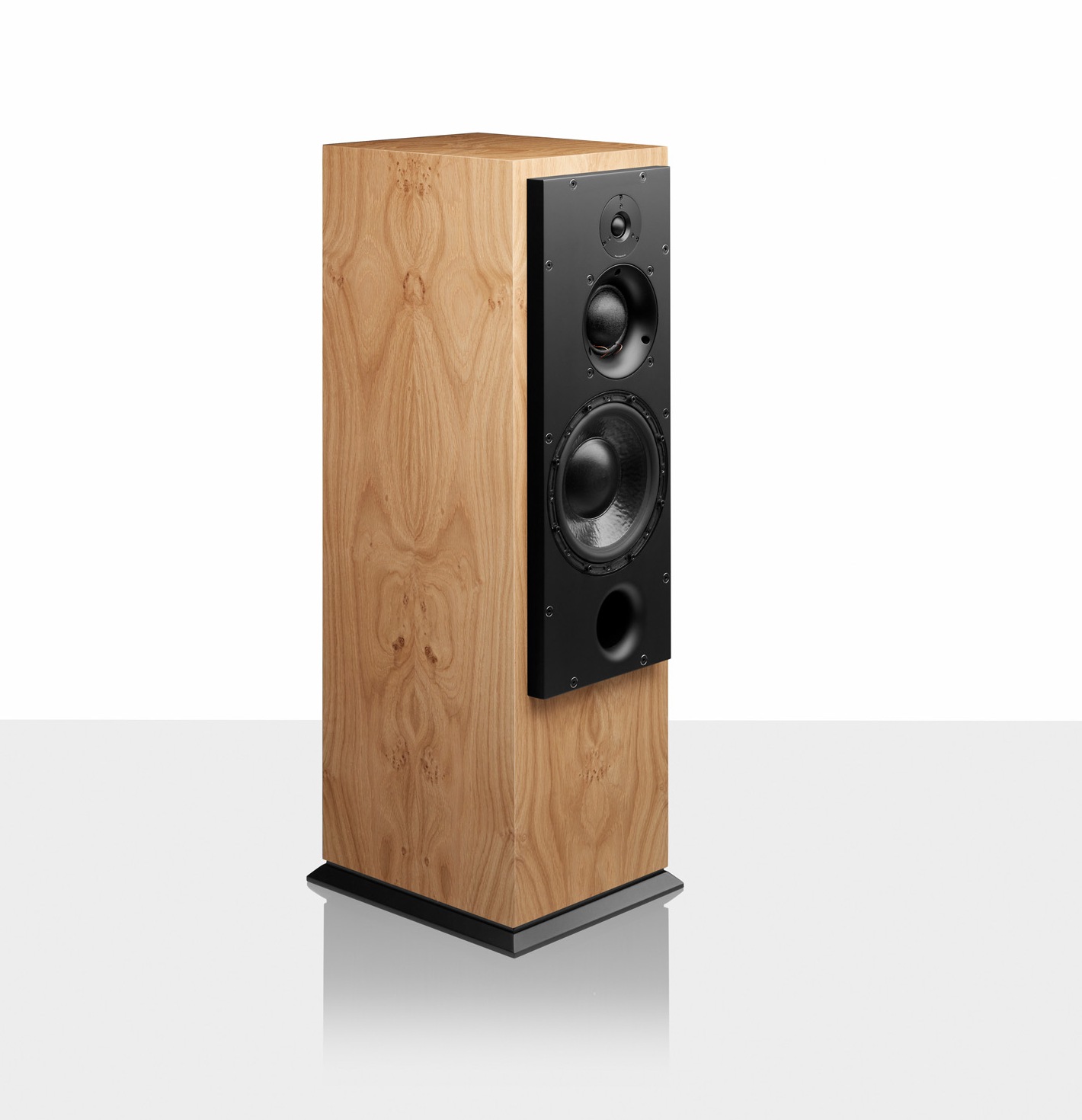

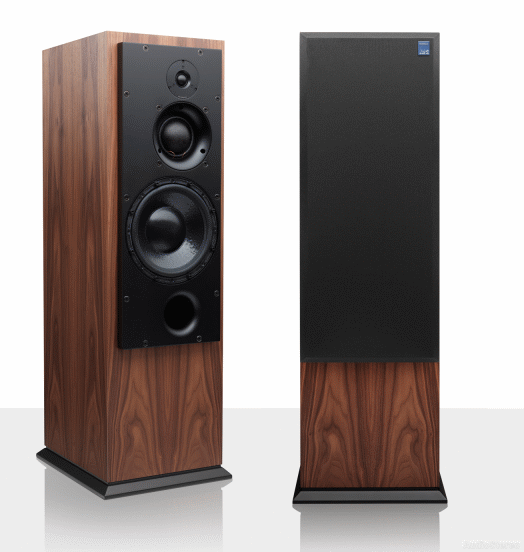

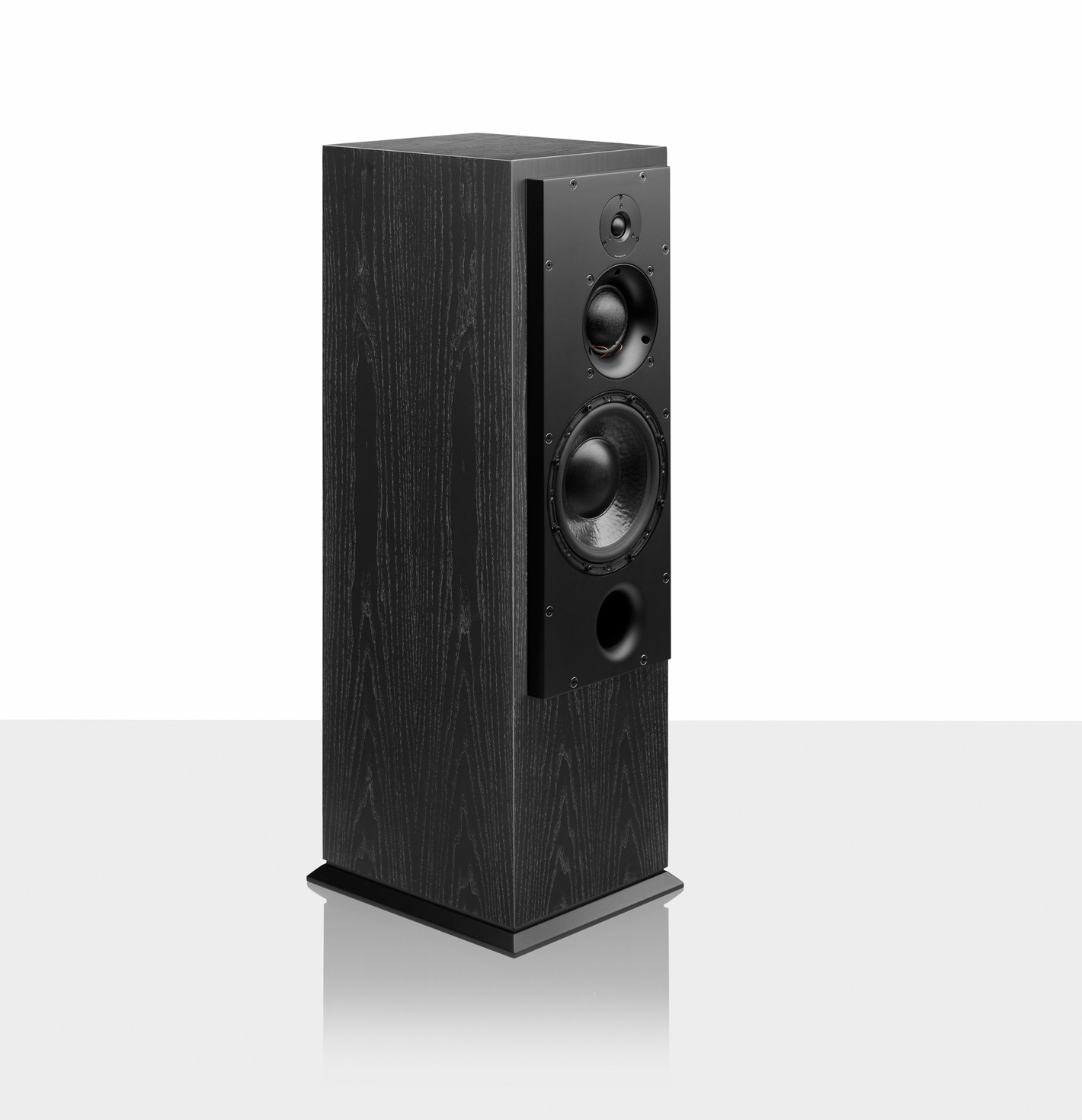

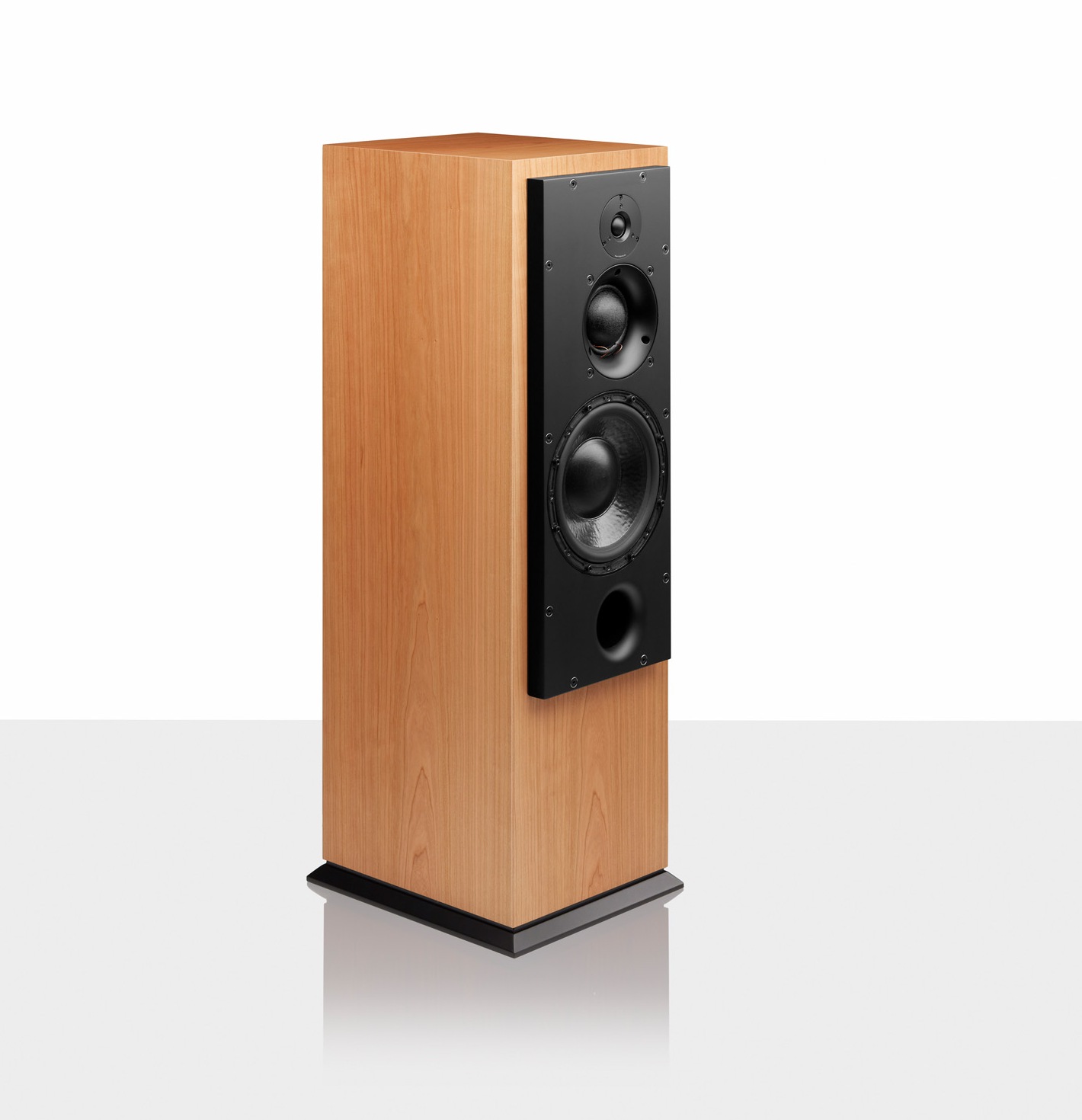

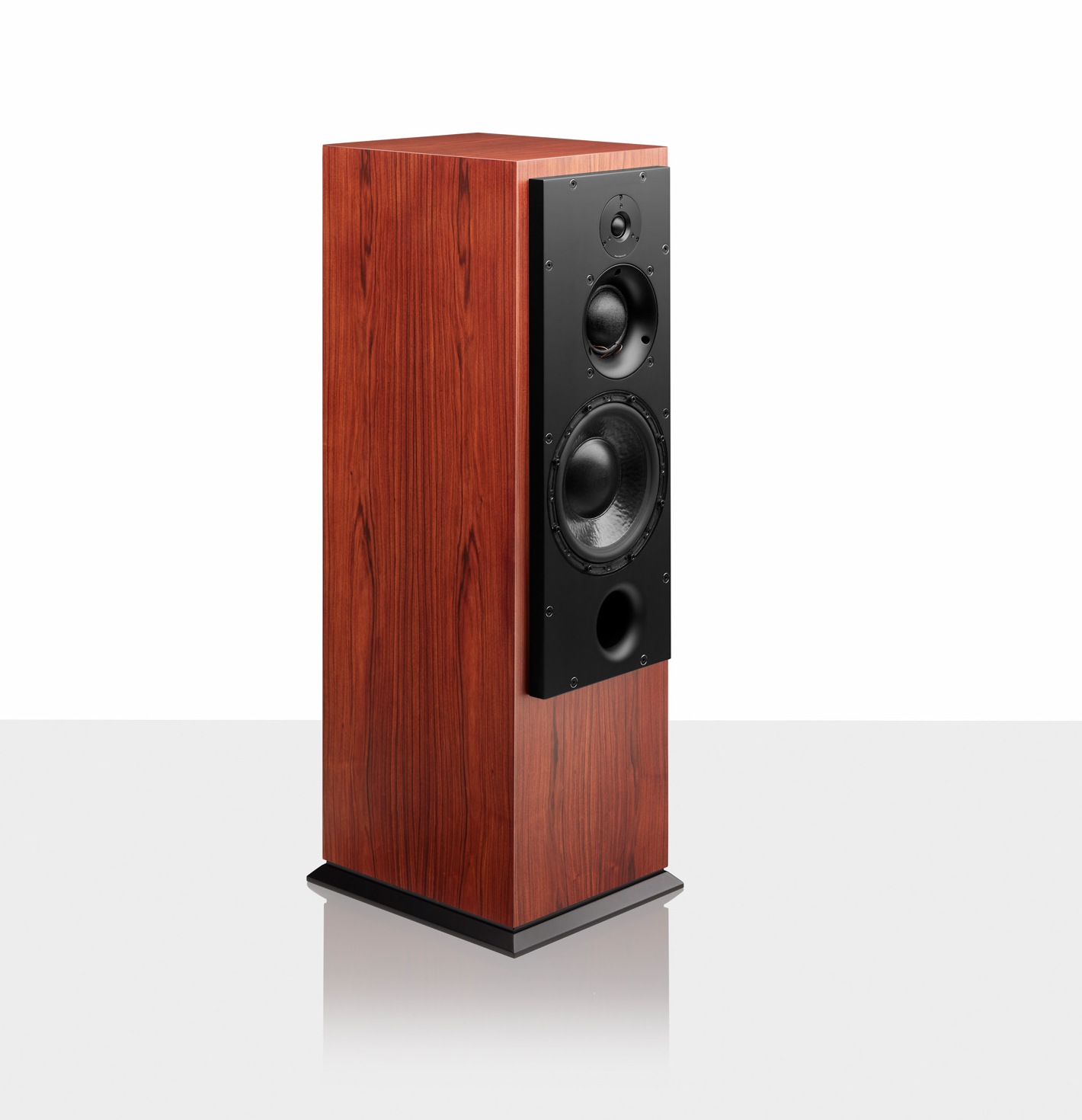

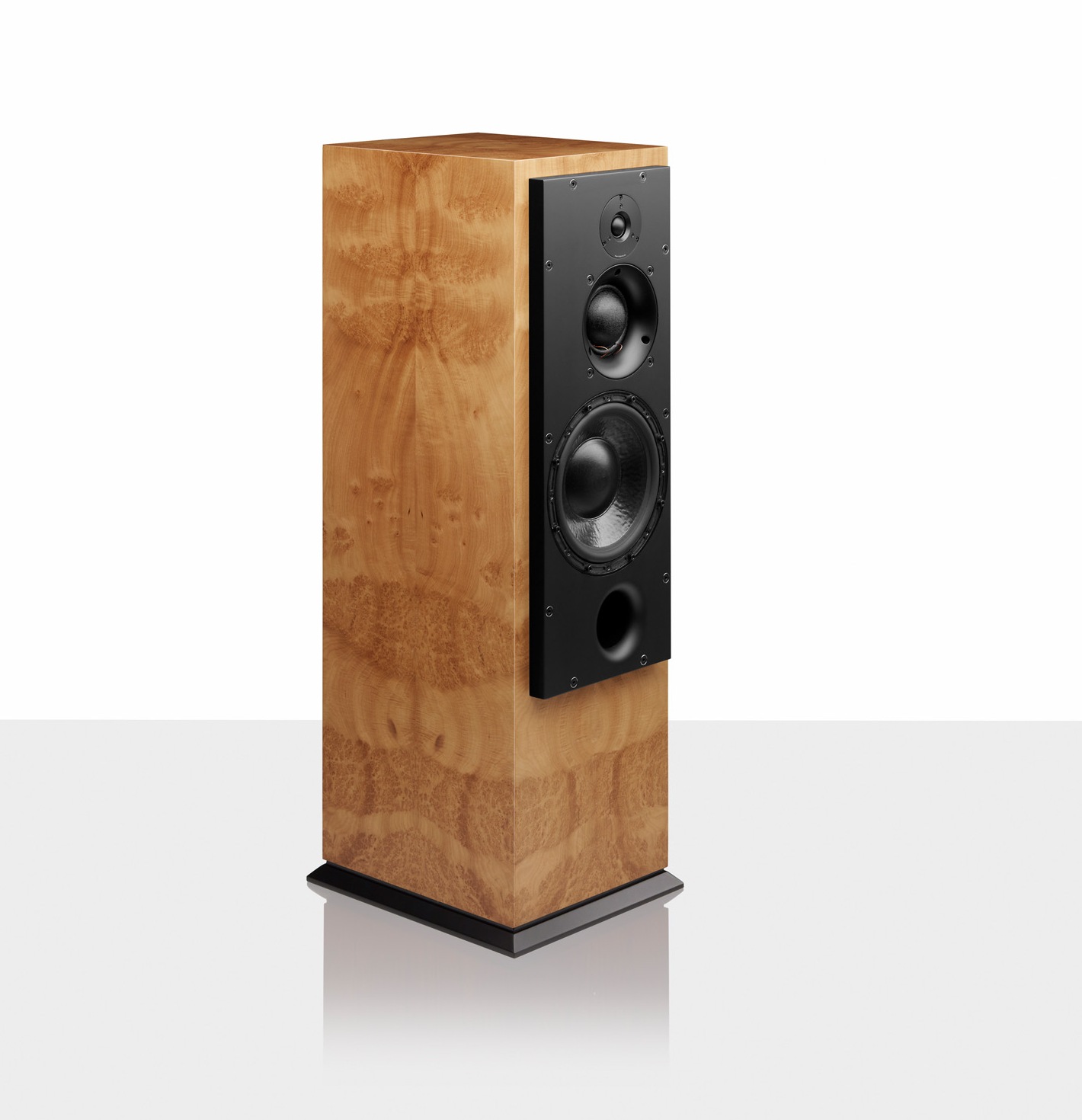

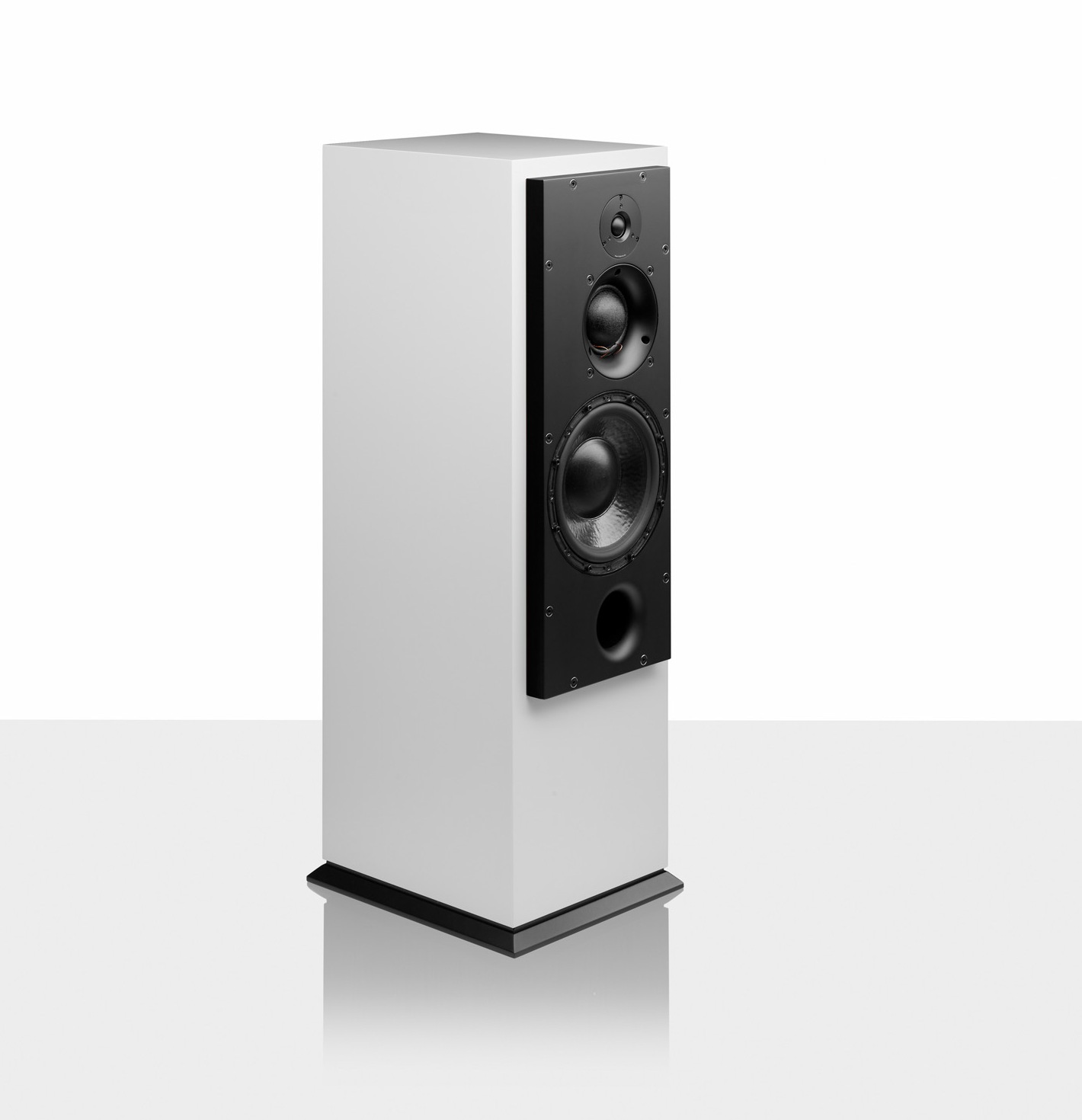

ATC SCM 50 SLT - Tower Series

£10800

ATC SCM 50 SLT Features:

  • New ATC designed and built dual suspension no ferrofluid 25mm Super Dome tweeter
  • ATC 75mm Super Dome midrange
  • Latest 234mm Super Linear Bass driver
  • Massive ATC motor assembly
  • Wide, even dispersion for pin-point imaging
  • The monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S Super Dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all performance parameters.

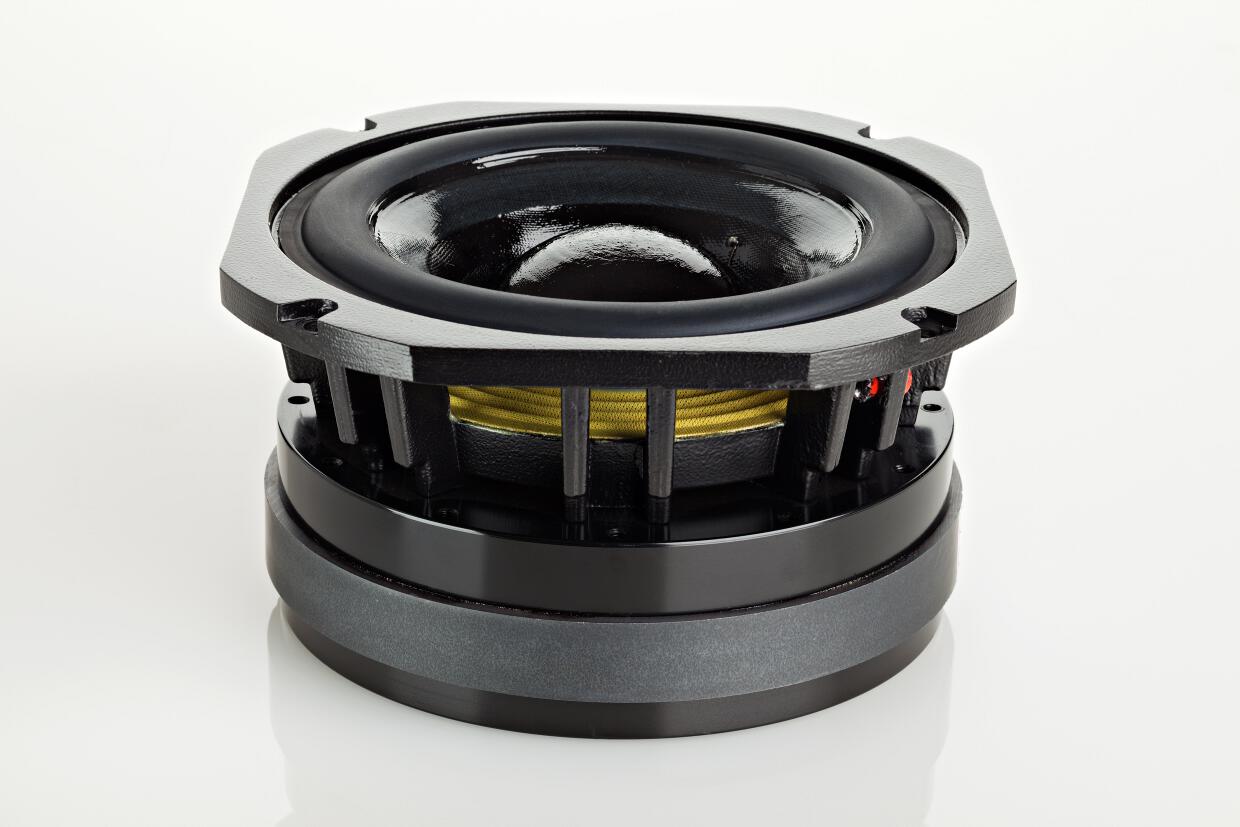

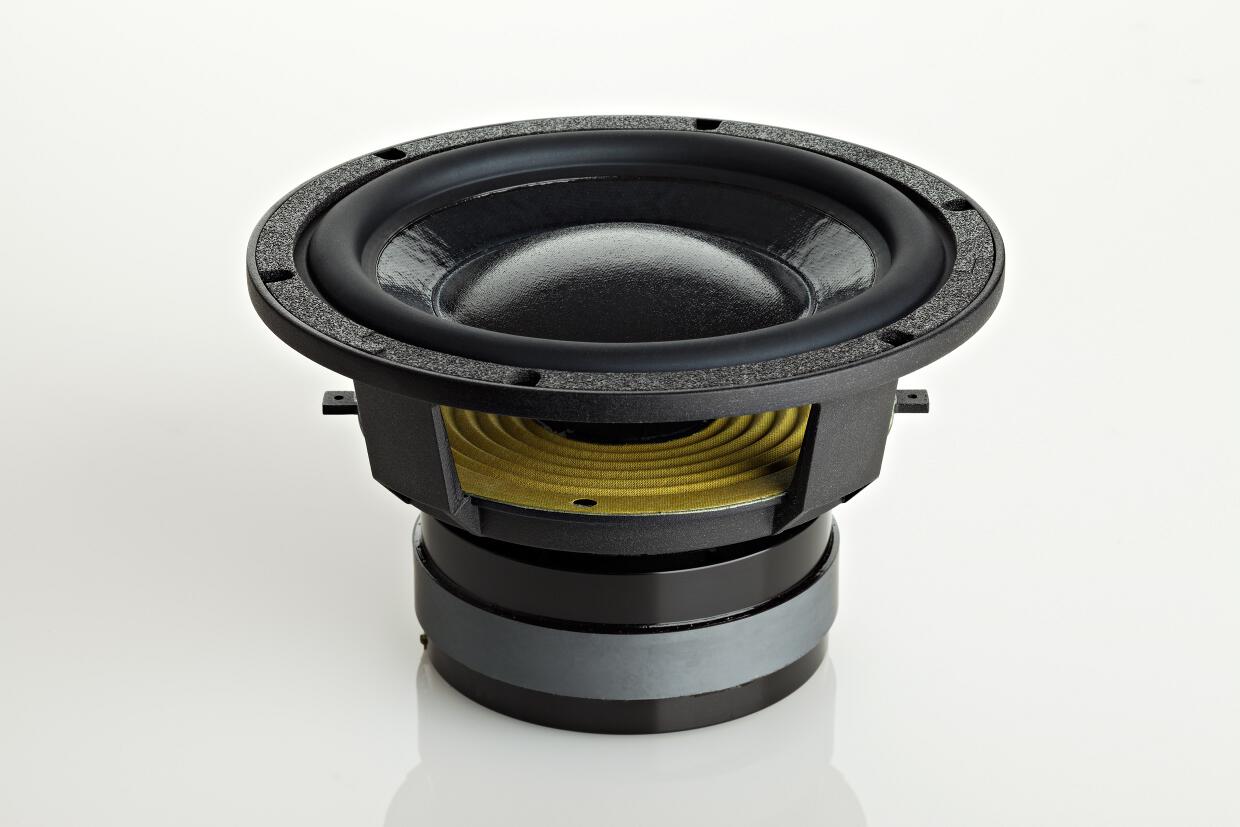

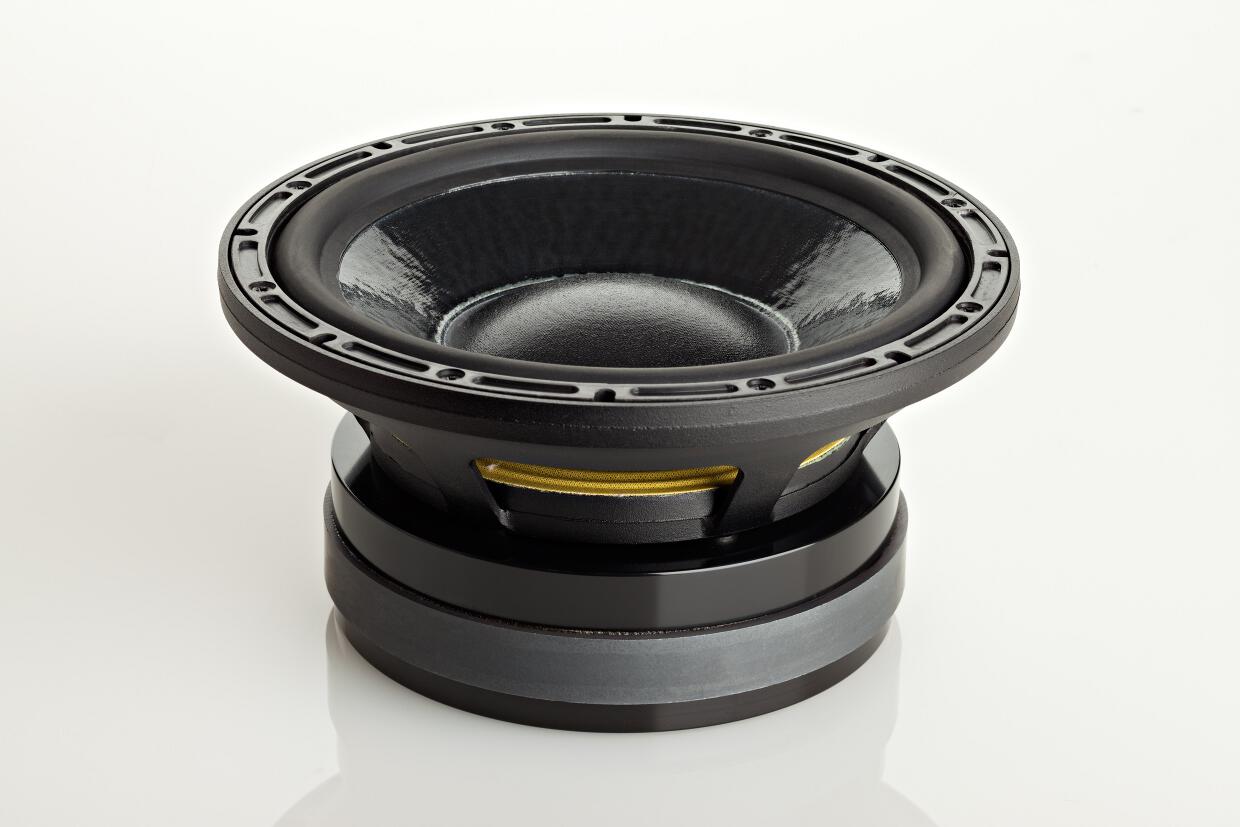

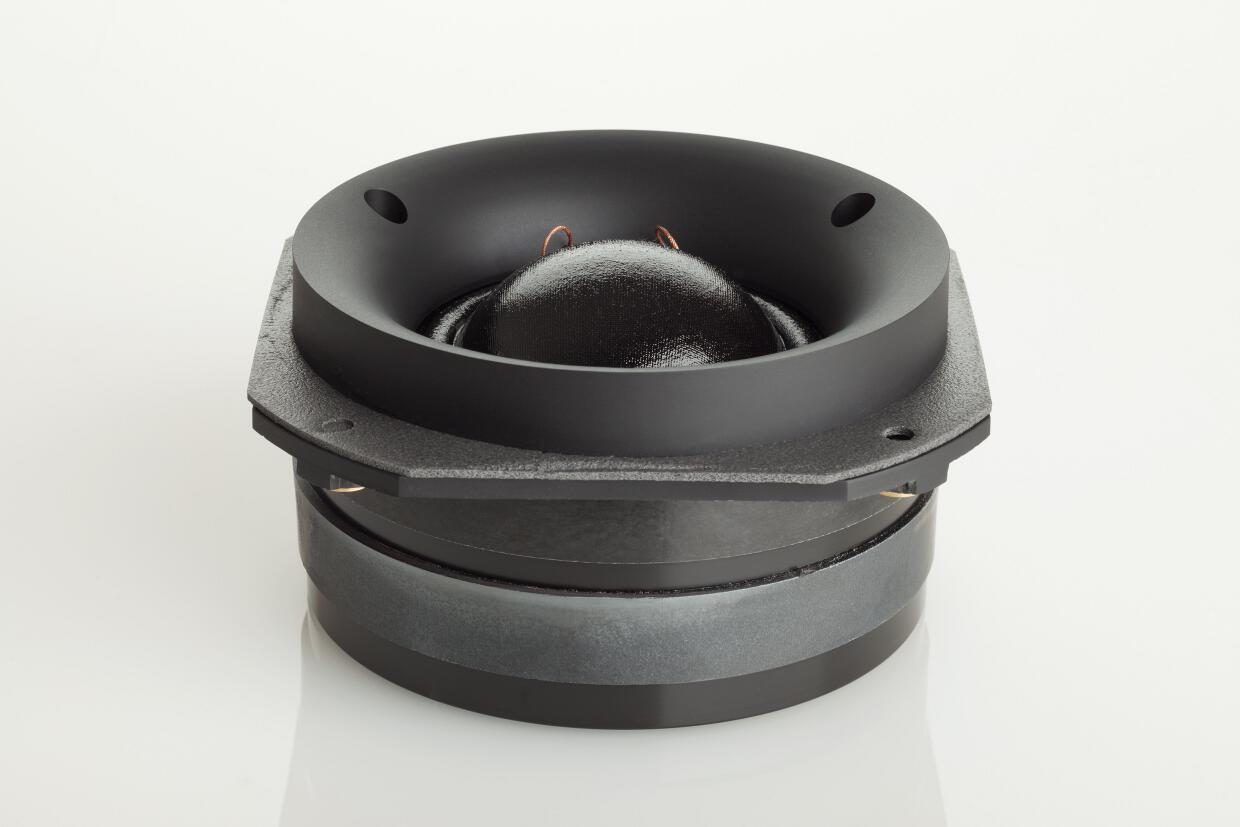

ATC SCM 50 Super Dome tweeter ATC SCM 50 Super Dome midrange driver ATC SCM 50 Super Linear bass
ATC SCM 50 SLT drivers

Specifications

Drivers: HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 234mm ATC Super Linear
Frequency Response (±2dB): 70Hz–17kHz
Frequency Response (±6dB): 38Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity (sine wave): 87dB @ 1W @ 1m
Max SPL: 112dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Binding Posts/ 4mm banana plugs, tri-wire capable
Recommended Amplifier Power100 to 1500 Watts
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 1003 x 304 x 470 mm
Weight: 53.3kg




ATC SCM 50 SLT Stereo Setup ATC SCM 50 SLT Stereo Setup
ATC SIA2-150 Integrated Amplifier DAYENS Ecstasy IV Power Amplifier
SIA2-150
Cyrus Lyric Cyrus Mono X 300 Signature
Lyric Mono X 300 Sig
