ATC SCM 12 Pro

AudioStereo logo
ATC SCM 12 Pro

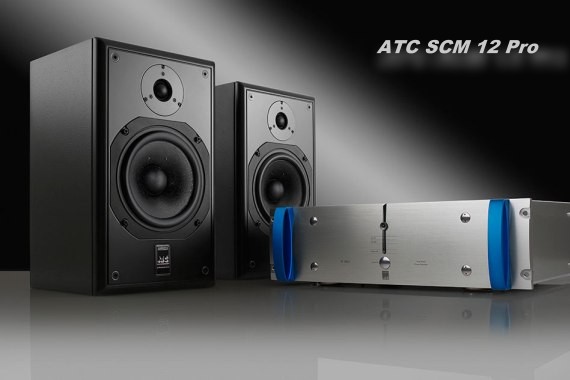

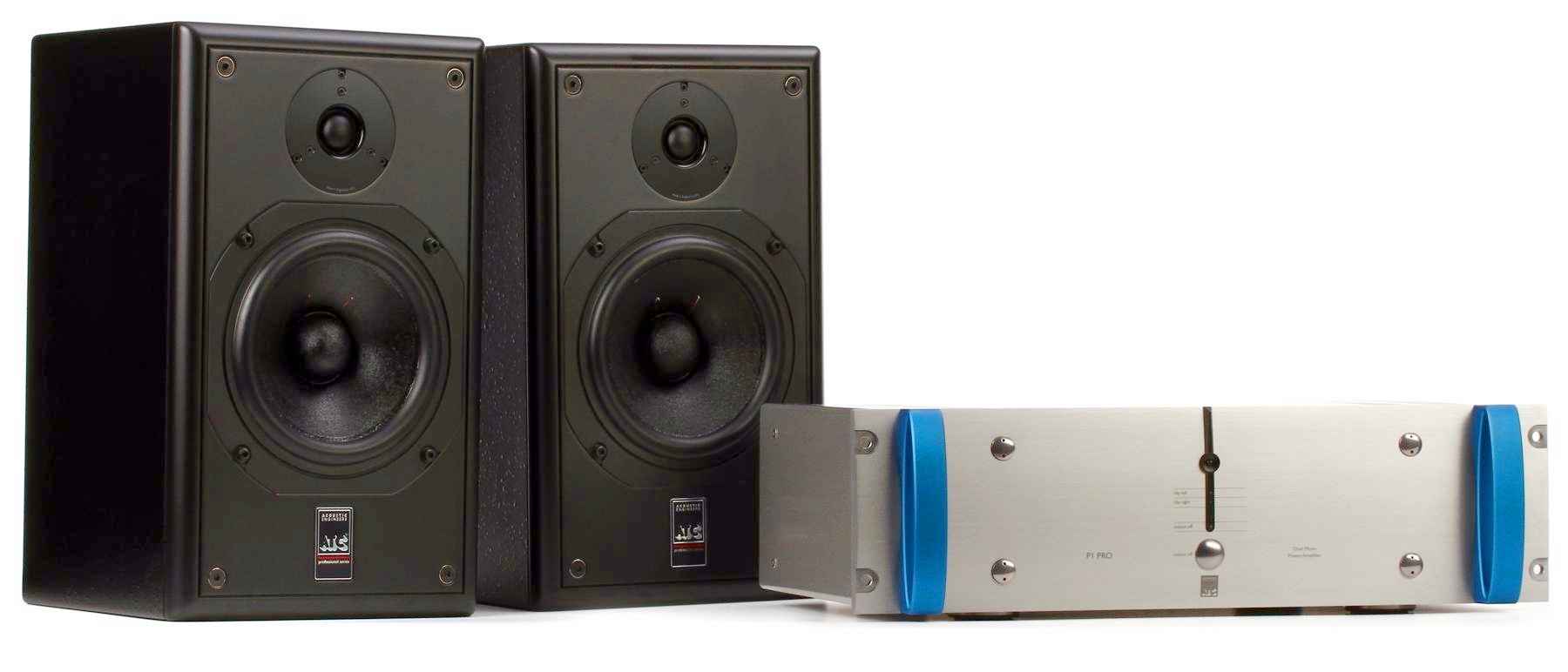

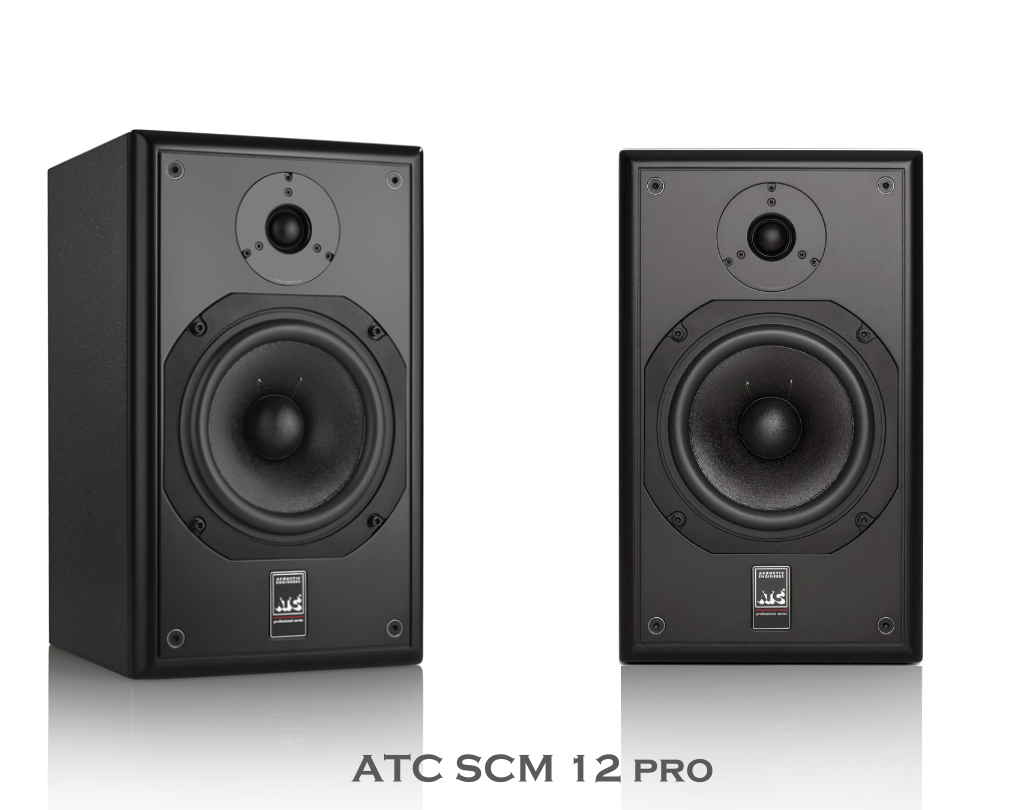

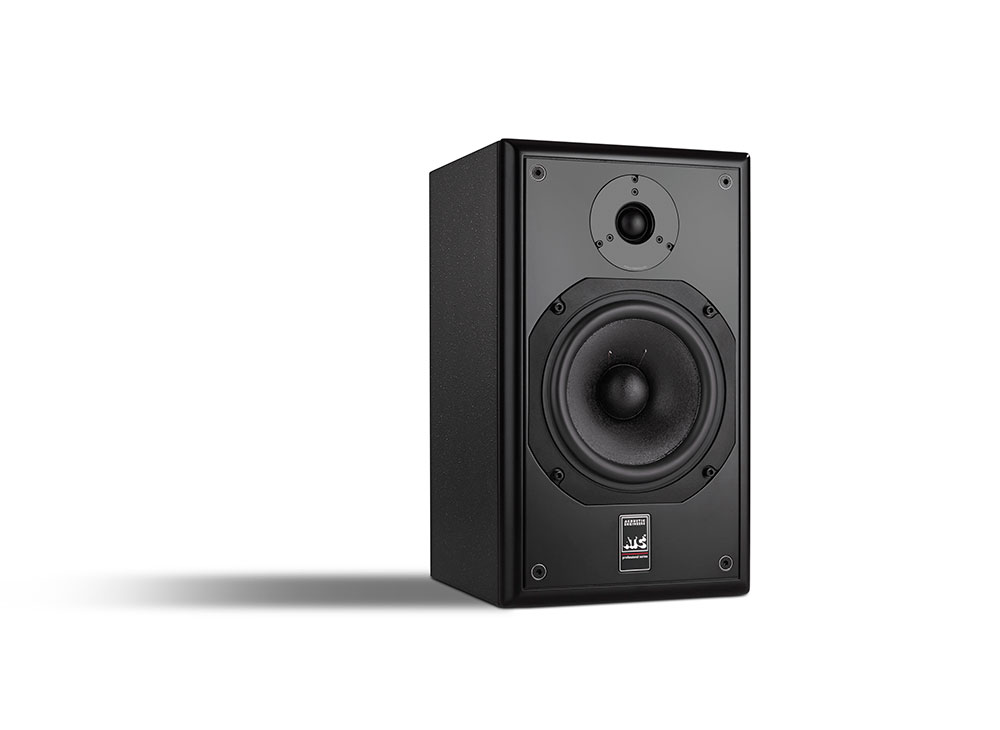

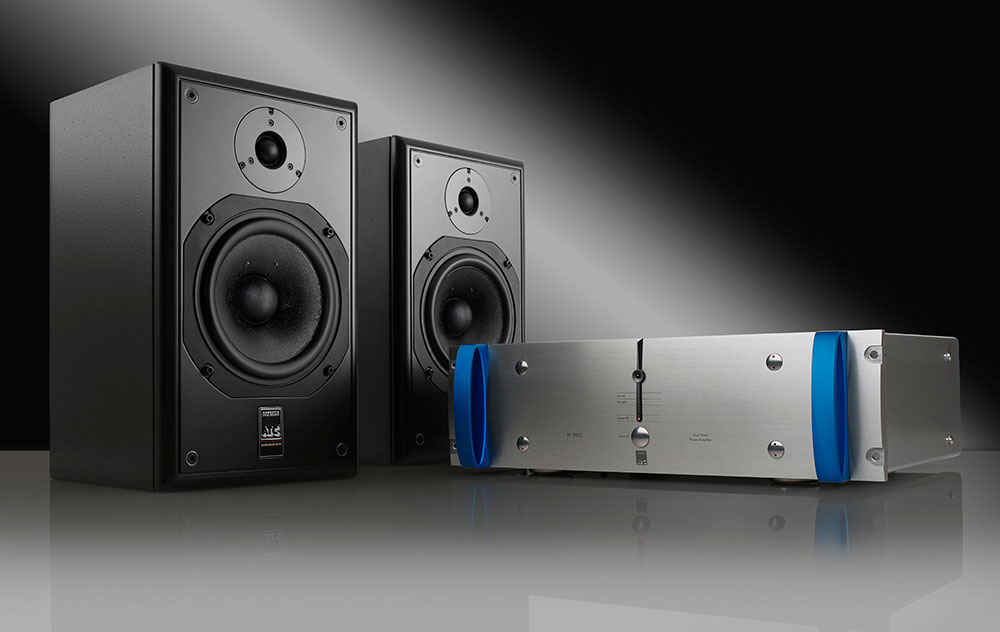

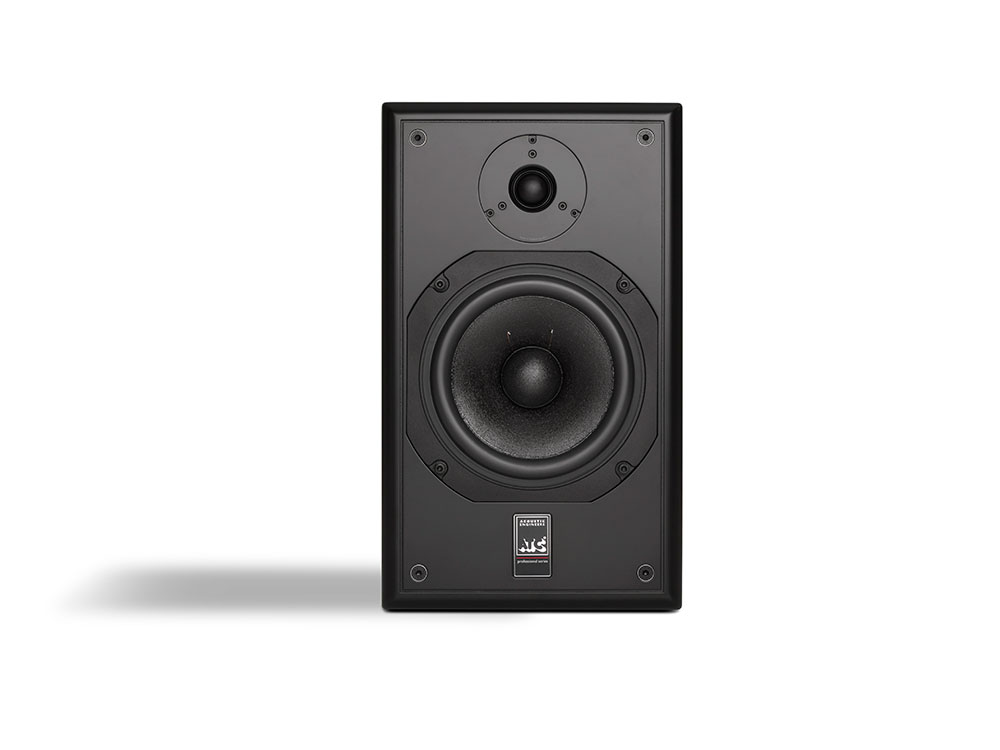

ATC SCM 12 Pro side ATC SCM 12 Pro front ATC SCM 12 Pro front ATC SCM 12 Pro front

£1485

ATC SCM 12 Pro: high performance nearfield passive 2-way studio monitor

As an all-new design, the SCM 12 Pro proffers ATC’s acclaimed performance at a lower price point without compromising component quality and achieves this in a more compact, installation-friendly footprint ideally suited to nearfield monitoring as well as multichannel music and post-production applications.

“Anyone who has been waiting for an ATC nearfield with a smaller footprint, that is more easily installed, or that is more affordable, yet still delivers undiminished ATC performance, then the SCM12 Pro could be for them.” So says ATC Technical Sales Manager Ben Lilly, before adding: “ATC R&D Manager Richard Newman has poured the same knowhow, time, and passion into this new model that has made the rest of the professional product line so successful. Users will find that productions completed using the SCM12 Pro will translate beautifully to other systems and that their incredibly low distortion makes listening to them a pleasure — even after long hours in the studio. At under £1,150.00 per pair (ex VAT), they may prove ideal for those seeking to upgrade ageing, hard-to-repair passive studio monitors.”

Though the SCM 12 Pro is the most affordable model in the professional range of loudspeakers, the monitor makes use of the ATC’s celebrated drive units for both the mid/bass and tweeter, both being meticulously hand built at the UK facility.

ATC SCM 12 Pro Features:

  • Compact high performance 2-way studio monitor
  • Ideally suited to:
    – critical near-field listening applications in all control rooms
    – LCR surround monitoring in small-to-medium control rooms
  • Proprietary ATC 150mm/6˝ CLD Mid/Bass Driver
  • Proprietary ATC 25mm/1˝ Dual Suspension Tweeter
  • 6 year warranty
ATC SCM 12 Pro Dome tweeter ATC SCM 12 Pro CLD midbass
Dual Suspension Dome Tweeter CLD Mid/Bass Driver

Specifications

Drivers: LF ATC 6˝/150mm Constrained Layer Damping (CLD) (SB50-150CLD 8 Ohm), HF ATC 1˝/25mm dual suspension Soft Dome (SH25-76 6 Ohm)
Amplitude Linearity: 80Hz – 16kHz (+/-2dB)
Cut Off Frequencies: 56Hz – 22kHz (-6dB freestanding)
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Maximum Continuous SPL: 108dB (per pair @ 1m)
Crossover Frequency: 2.2kHz
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm

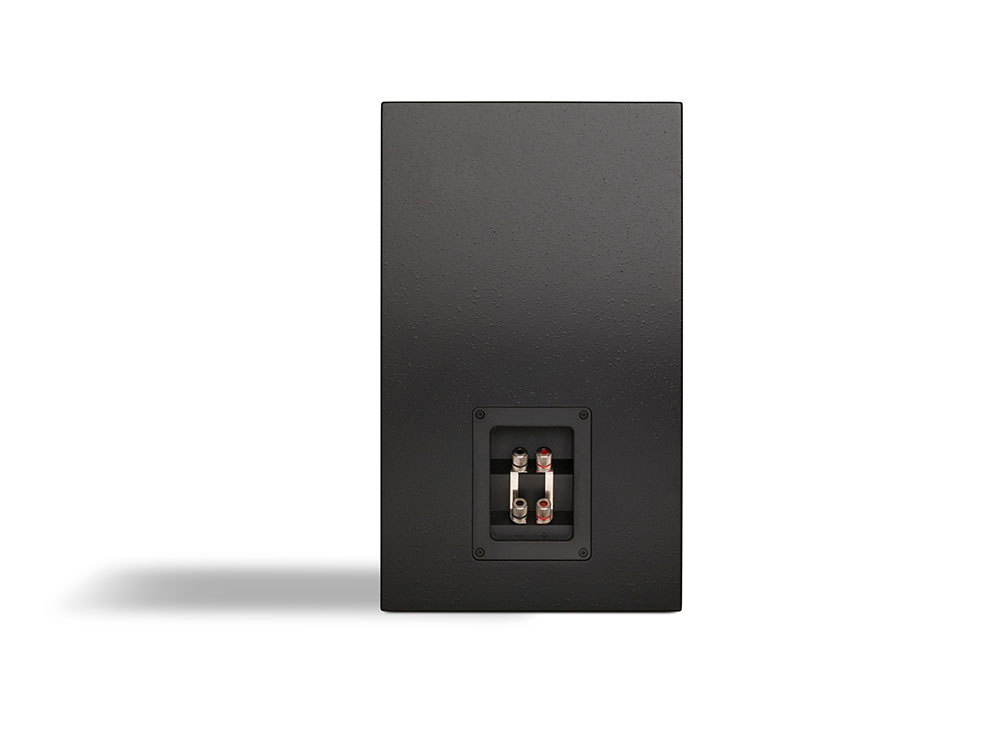

Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 400 x 238 x 235mm
Weight: 11kg (per cabinet)


ATC SCM 12 Pro datasheet ATC SCM 12 Pro user manual
Datasheet Manual
