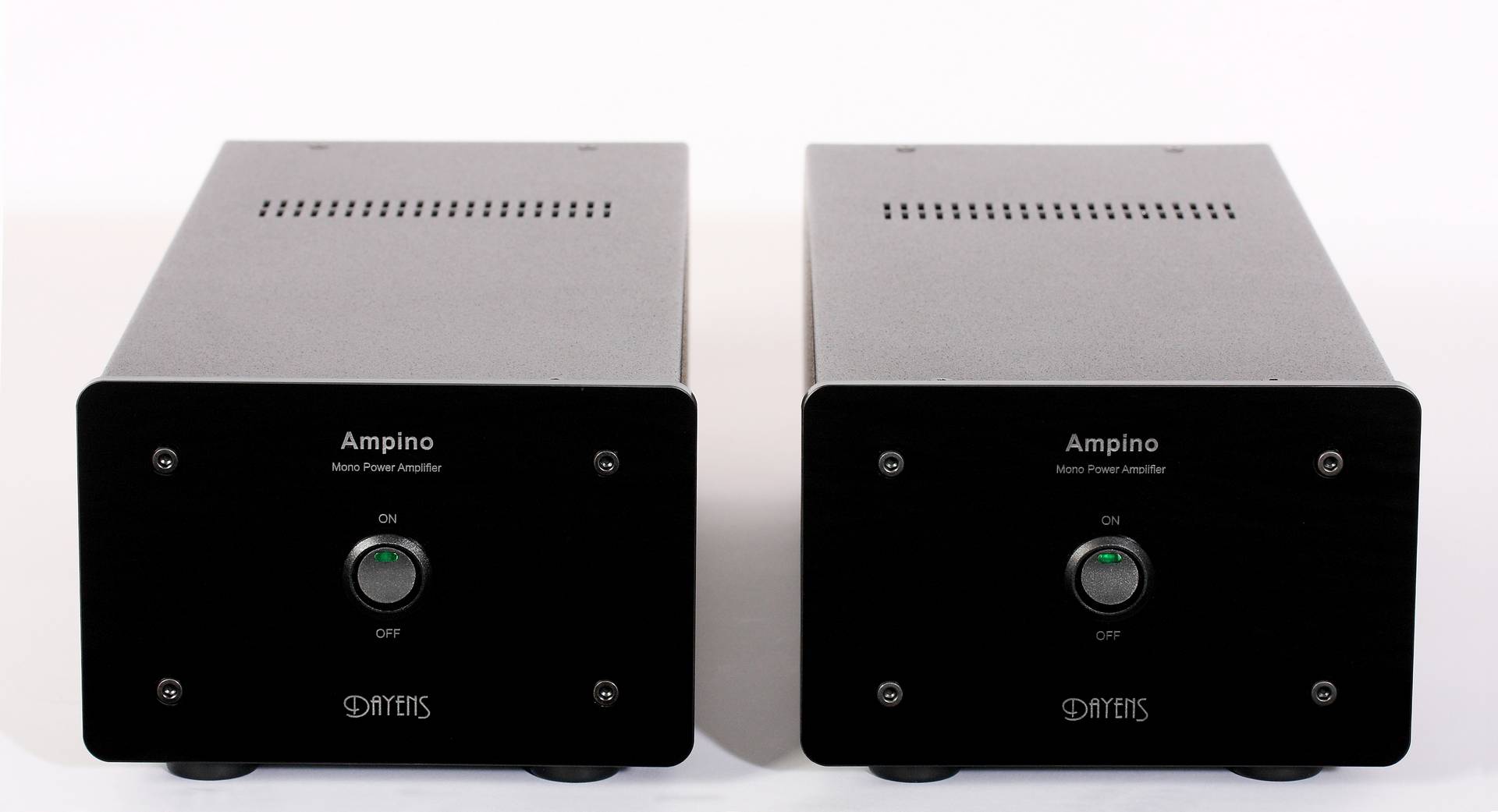

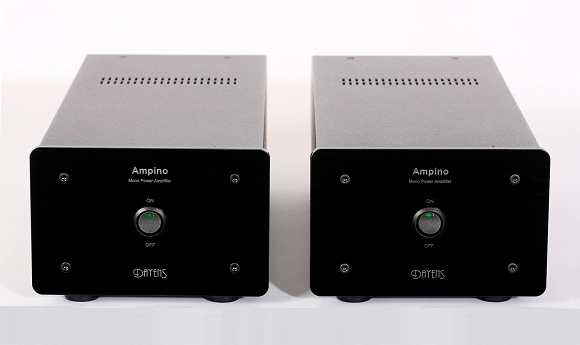

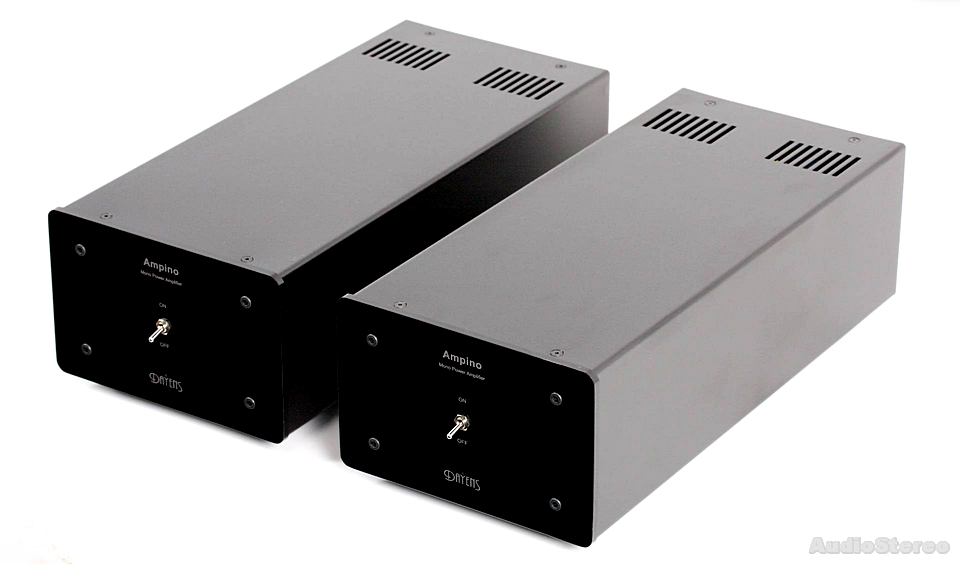

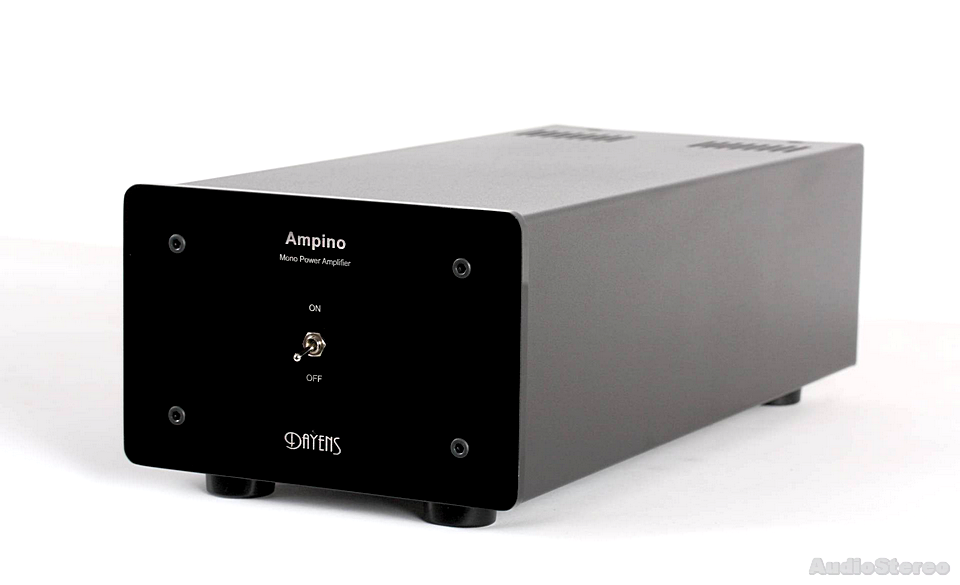

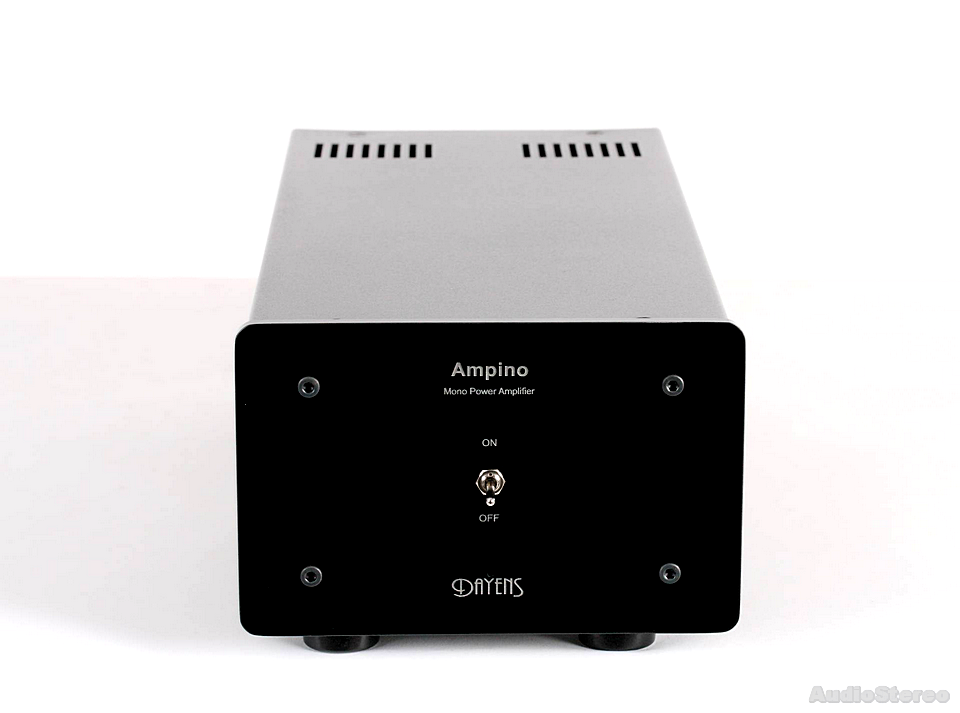

Dayens Ampino Mono Power Amplifier Features:
- High current audiophile monoblock power amplifier
- 2×10.000uF Mundorf MLytic® AG audio-grade electrolytic capacitors in the power supply
- Mundorf MCap® ZN tin foil capacitors for the input stage
- Two pairs of Japanese bipolar output transistors per channel, allowing the amplifier to drive speakers with complex crossover networks and low impedance dips
Technical Information
Specifications
Continuous Power: 100W/CH (into 4 Ohms) 50W/CH (into 8 Ohms)
Frequency Response: 1Hz – 200Khz (-3dB)
Sensitivity: 220mV
Input impedance: 100kOhm (RCA)
S/N Ratio: > 100 dB
Dimensions (H x W x D): 90 x 150 x 330 mm
Weight (pair): 8 kg
Finish: Black satin
Line inputs:
1 analogue
Mundorf MCap® ZN tin foil input capacitors

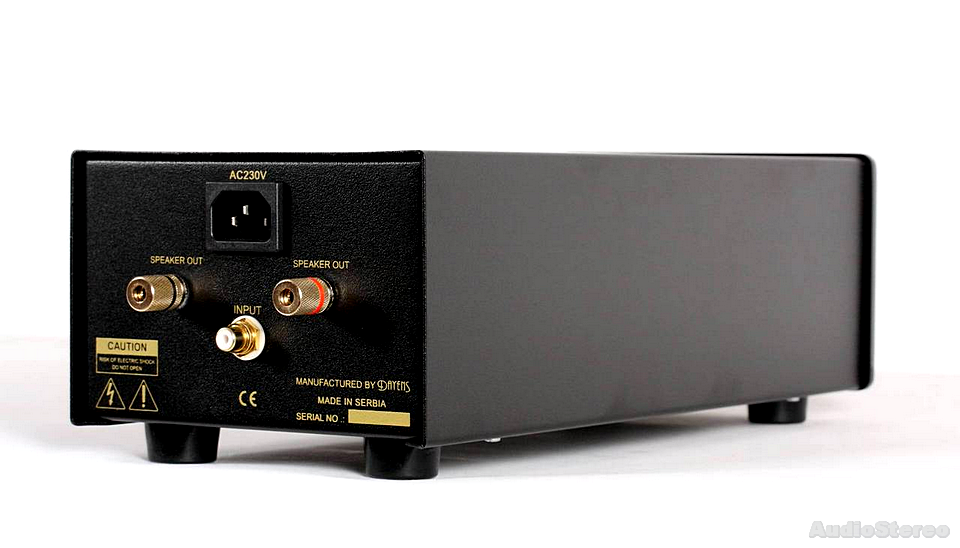

Outputs
Single-wire loudspeaker terminals
Construction
Stamped steel chassis, black satin painted enclosure
Black acrylic face plate
Internal power Supplies
1 x 150 VA Toroidal transformer
2×10.000uF Mundorf MLytic® AG audio-grade electrolytic capacitors in the power supply |
