Dayens Ampino Integrated

AudioStereo logo
Dayens Ampino Integrated amplifier

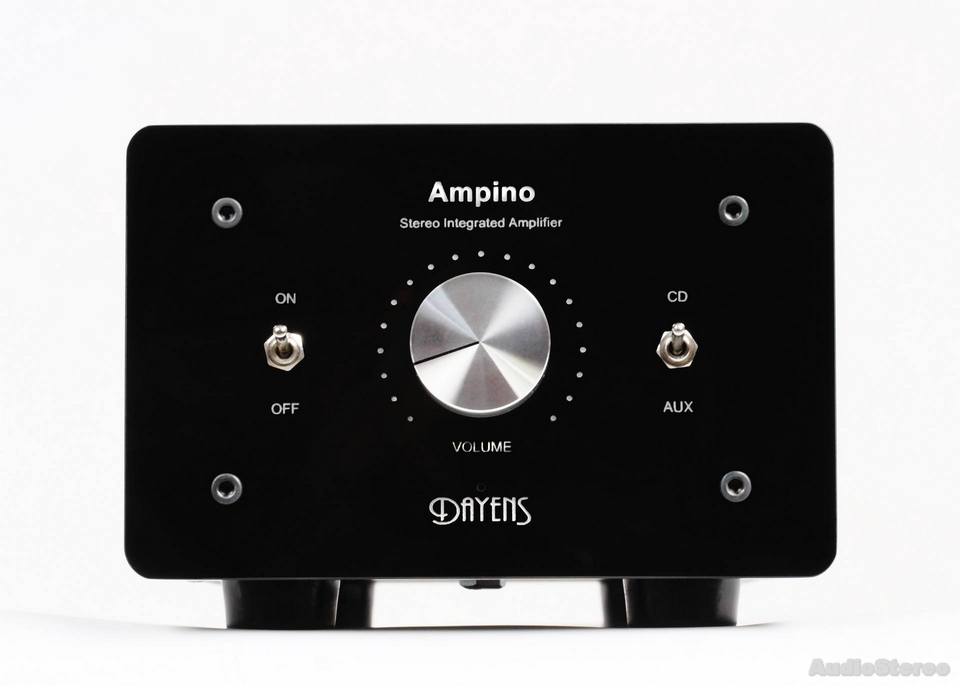

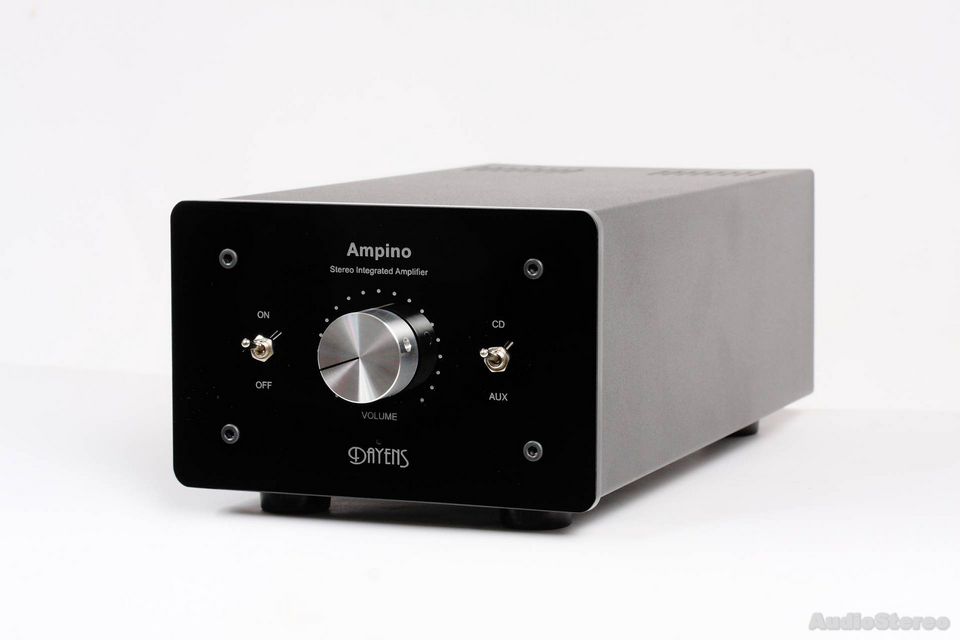

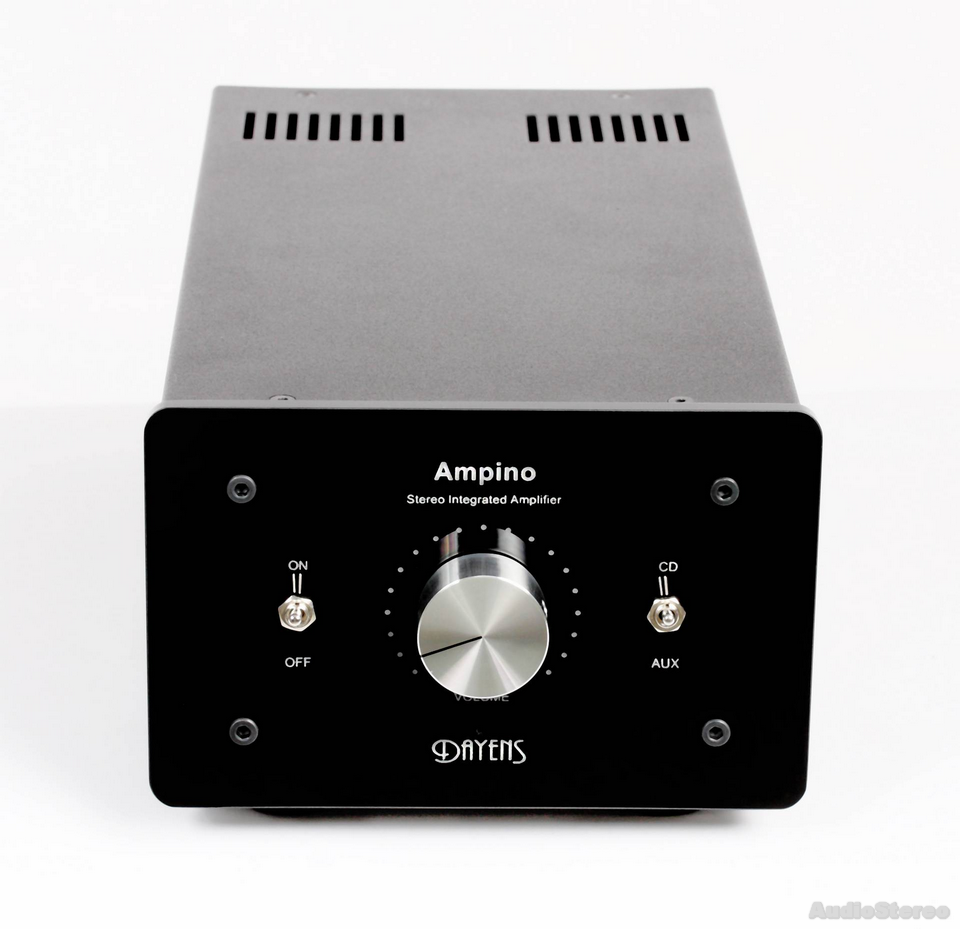

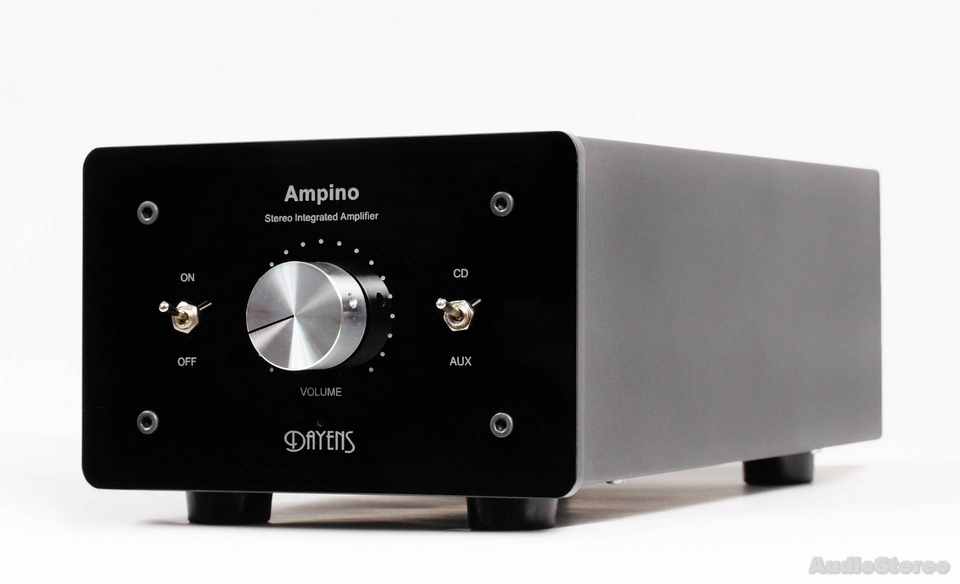

Dayens Ampino Integrated Amplifier pic 1 Dayens Ampino Integrated Amplifier pic 2 Dayens Ampino Integrated Amplifier pic 3 Dayens Ampino Integrated Amplifier pic 4

580

Dayens Ampino - forum.polkaudio.com reveiw

Dayens Ampino Integrated

Dayens Ampino - forum.polkaudio.com reveiw
  • "This unit has deep accurate bass, plenty of depth and a nice sparkle on the top end. Though you will see where it ranks in a moment, this is the piece that left me most impressed. If you only have two sources and you want great sound for little coin, stop looking.
  • "This one had a very rich midrange to it, but did bring the lead singer out into the room more. At 25 watts per channel, its a tiny amp that packs a lot of punch." http://forum.polkaudio.com/

Dayens Ampino Integrated - Hi-Files reveiw

Dayens Ampino Integrated

Dayens Ampino Integrated - Hi-Files reveiw
  • “Trust in your hearing and your heart and you should try to listen little Ampino as soon as possible.
    If you don’t do this you will miss an important part of domestic HiFi history." Zoran Karapandzic, Hi-Files #21

Dayens Ampino Integrated - 6moons reveiw

Dayens Ampino Integrated

Dayens Ampino Integrated - 6moons reveiw
  • "What a discovery!" Srajan Ebaen, 6moons

Dayens Ampino Integrated - Stereomojo reveiw

Dayens Ampino Integrated

Dayens Ampino Integrated - Stereomojo reveiw
  • "The Ampino will transport you to where you can sit back and listen for hours to
    music rather than an audio system."
      Steve Kozle, Stereomojo

Dayens Ampino Integrated - Digital Audio Review reveiw

Dayens Ampino Integrated

Dayens Ampino Integrated - Digital Audio Review reveiw
  • "The Ampino is an extremely solid performer that does punch above its weight.
    With loudspeaker matchmaking done right, it excels with speed and downright ebullience,
    providing a richer, fruitier alternative to the more established players in the budget integrated field."
    John Darko, Digital Audio Review

Dayens Ampino Integrated Features:

  • Compact audiophile integrated amplifier
  • 2×10.000uF Mundorf MLytic® AG audio-grade electrolytic capacitors in the power supply
  • Mundorf MCap® ZN tin foil capacitors for the input stage
  • Output stage uses one pair of Japanese bipolar output transistors
  • Alps RK27MC Blue Velvet potentiometer
  • Short, clean signall path:
    • Omron relays triggered with remote flip switch
    • Alps potentiometer on long shaft, close to the input selector
  • No output relay purist design
  • Soft-start system with no turn-on thump

Technical Information

Specifications
Continuous Power: 40W/CH (into 4 Ohms) 25W/CH (into 8 Ohms)
Frequency Response: 4Hz – 200Khz (-3dB)
Sensitivity: 220mV
Input impedance: 40kOhm (RCA)
S/N Ratio: > 100 dB
Dimensions (H x W x D): 90 x 150 x 285 mm
Weight: 3.7 kg
Finish: Black satin

Line inputs:
2 analogue pairs
Mundorf MCap® ZN tin foil input capacitors

Outputs
Single-wire loudspeaker terminals

Construction
Stamped steel chassis, black satin painted enclosure
Black acrylic face plate

Internal power Supplies
1 x 100 VA Toroidal transformer
2×10.000uF Mundorf MLytic® AG audio-grade electrolytic capacitors in the power supply

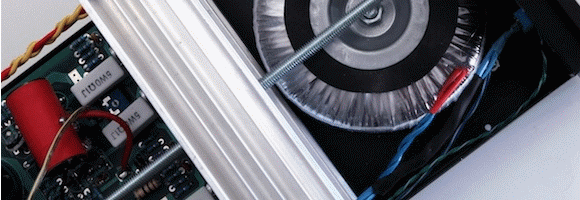

Dayens Ampino Integrated - inside detail

DAYENS Ampino Integrated Manual (PDF)



DAYENS Ampino - Stereo Setup
