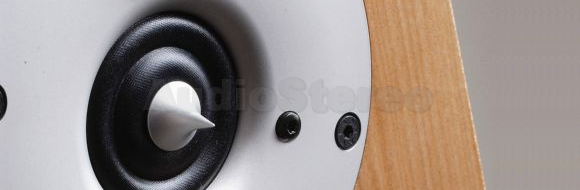

Features:

• 1" Ring Dome Diaphragm
• Small neodymium magnets are placed on a star-shaped pole piece, giving a very open construction which allows free airflow inside the tweeters rear chamber
• Free airflow inside the tweeter reduces air compressions in the chamber and results in a very smooth and natural sound revealing even the smallest details in the high frequency band
• Silver Anodized Mashined Alu Face Plate
• Non Resonant Alu Rear Chamber

Symmetrical Drive (SD-2):

• Controls eddy currents in the motor system and flattens the impedance curve
• Reduces distortion as well as providing a symmetric induction around the gap centre point
• Achieved by special shaping of the components around the voice coil gap and by use of copper caps or rings

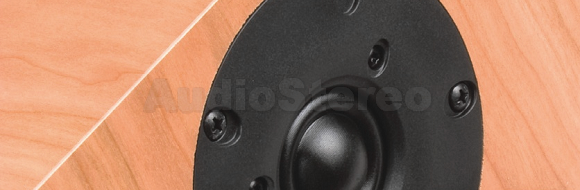

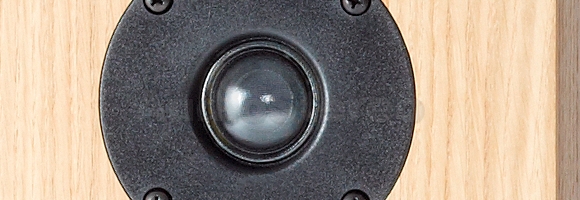

Features:

• 1" Textile Dome Diaphragm
• Low Resonance Rear Chamber
• Black Painted Alu Face Plate

Symmetrical Drive (SD-2):

• Controls eddy currents in the motor system and flattens the impedance curve
• Reduces distortion as well as providing a symmetric induction around the gap centre point
• Achieved by special shaping of the components around the voice coil gap and by use of copper caps or rings

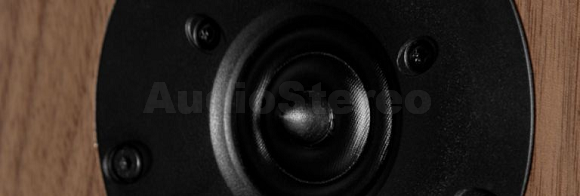

Features:

• 1" Dual Ring Radiator Diaphragm
• Wave-guide Center Plug
• Very Low Resonance Frequency
• Non-reflective Rear Chamber
• Double Magnet (Carisma and Virtuosa)

Features:

• 1" Dome Diaphragm
• Low Resonance Frequency
• Wide Surround: the wider (large roll) surround increases the total active diaphragm area and gives a higher output (sound pressure); the increased area closest to the voice coil gives in combination with its shape a much wider sound dispersion as well as extended high frequency output

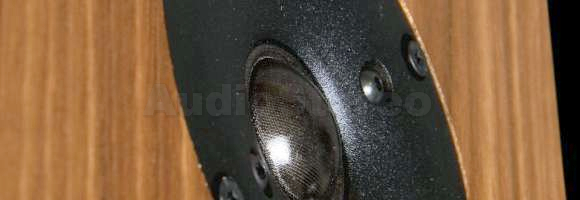

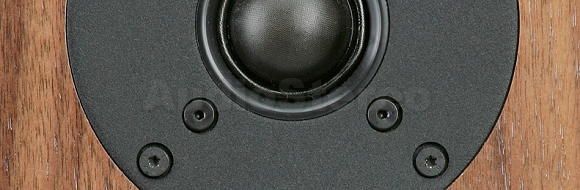

Features:

• 25 mm selected XAVIAN soft dome design made in Italy
• Impregnated fabric soft dome
• Copper shortcircuiting ring
• Wide angle dispersion design
• Die-cast Aluminum faceplate

Features:

• 26 mm exclusive custom made in Italy
• Impregnated fabric soft dome
• Working chamber under the membrane
• Magnetic structure with high power handling

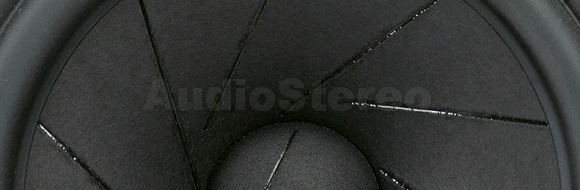

Sliced Paper Cone:

• The slices are filled with damping glue, which dramatically reduce break-up modes in the diaphragm
• In combination with Scan-Speaks Low-Loss Linear Suspension and the patented Symmetrical drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics

Symmetrical Drive (SD-1):

• Controls eddy currents in the motor system and flattens the impedance curve
• Reduces distortion as well as providing a symmetric induction around the gap centre point
• Achieved by special shaping of the components around the voice coil gap and by use of copper caps or rings

Low-Loss Linear Suspension:

• Low Loss Linear Suspension is a combination of a soft surround, a spider with linear tension and a low damping voice coil former, perfectly trimmed so risk of instability is avoided, no matter which signal level applied
• Having the moving parts (cone, dust cap, spider and voice coil) soft suspended opens the ability to move easily and fast, also when signal levels are low
• The desired result is a driver which reproduces not only the main signal perfect, but also the smallest transients are reproduced with care for detail

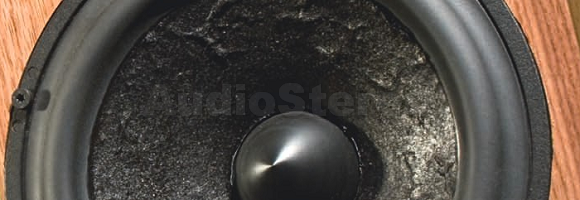

Air Dried Paper/Carbon Fibre Cone:

• Fast transient response
• Precise excursion of the diaphragm

Symmetrical Drive (SD-1):

• Controls eddy currents in the motor system and flattens the impedance curve
• Reduces distortion as well as providing a symmetric induction around the gap centre point
• Achieved by special shaping of the components around the voice coil gap and by use of copper caps or rings

Low-Loss Linear Suspension:

• Low Loss Linear Suspension is a combination of a soft surround, a spider with linear tension and a low damping voice coil former, perfectly trimmed so risk of instability is avoided, no matter which signal level applied
• Having the moving parts (cone, dust cap, spider and voice coil) soft suspended opens the ability to move easily and fast, also when signal levels are low
• The desired result is a driver which reproduces not only the main signal perfect, but also the smallest transients are reproduced with care for detail

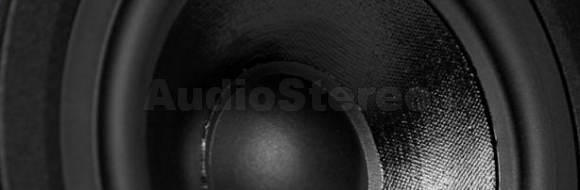

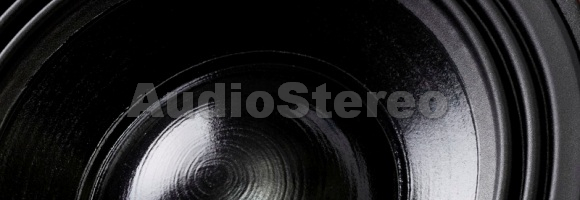

150 mm Scan-Speak mid-bass

Features:

• impregnated paper membrane
• soft dust cap
• shortcircuiting ring in the motor
• die cast Alu Chassis vented below spider

132 mm exclusive custom made in Italy mid-bass

Features:

• Impregnated paper membrane

• Aluminium voice coil on kapton former
• Non resonant twin-wave rubber surround
• Die-cast Aluminum chassis, vented below spider
