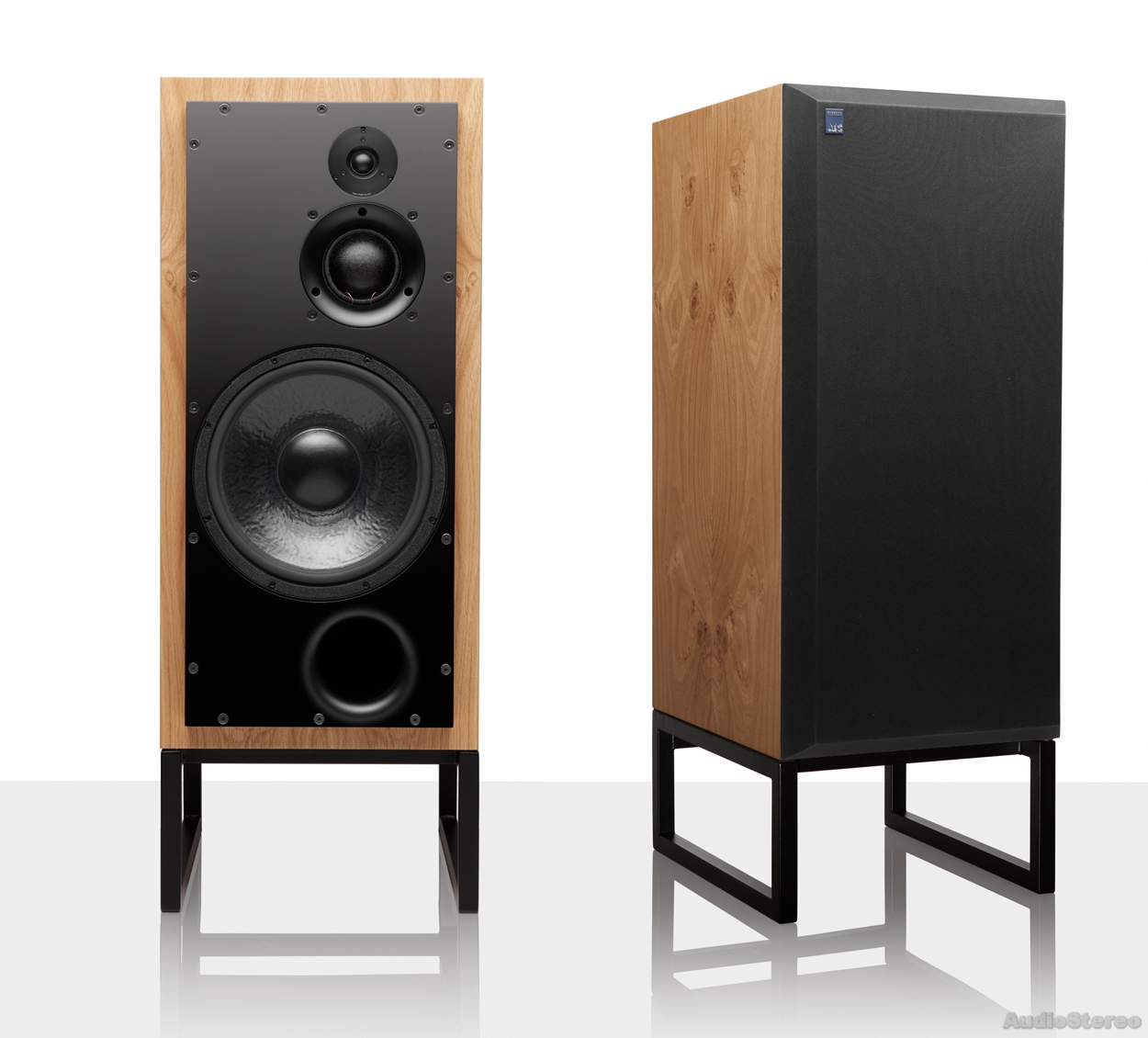

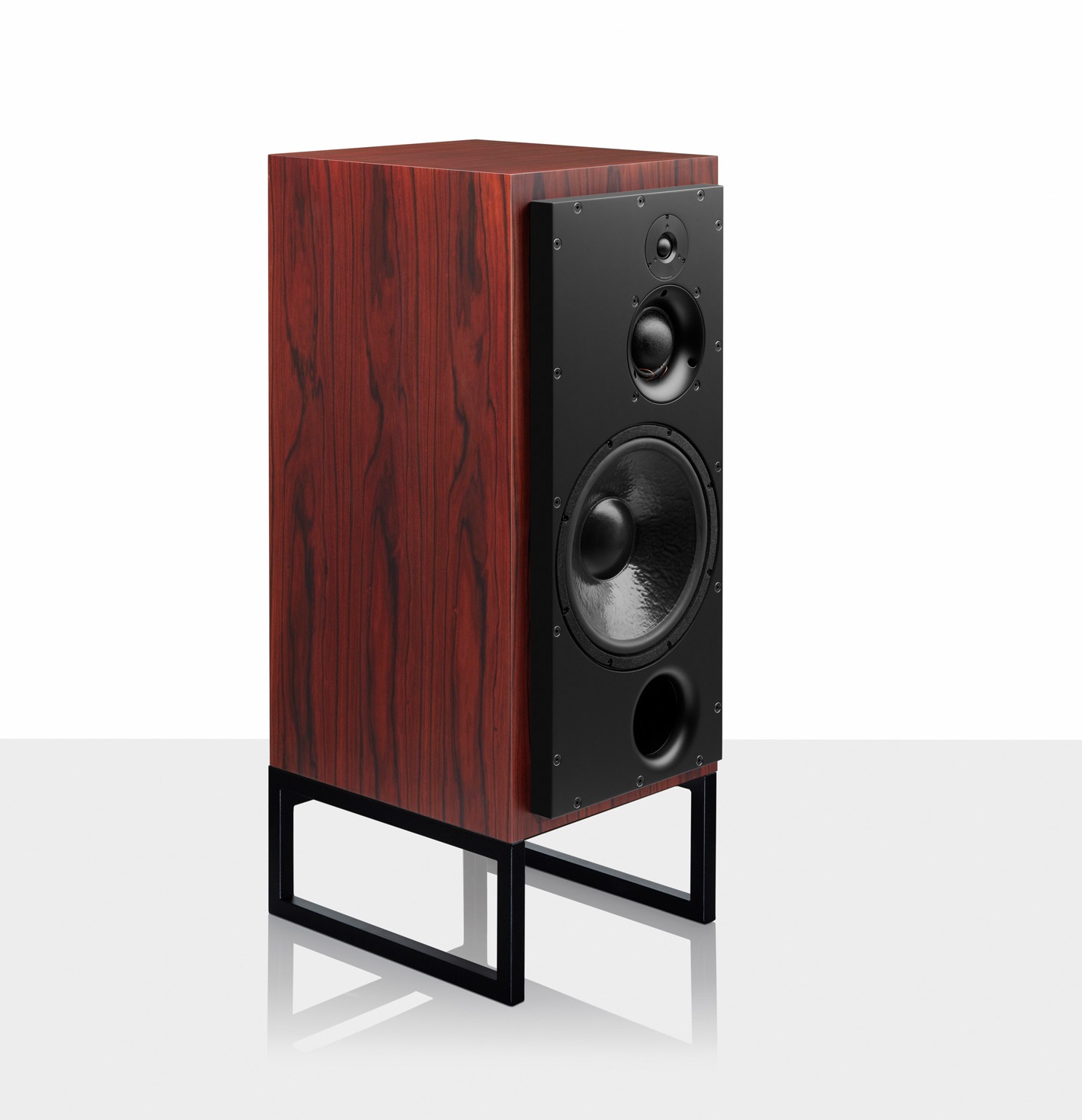

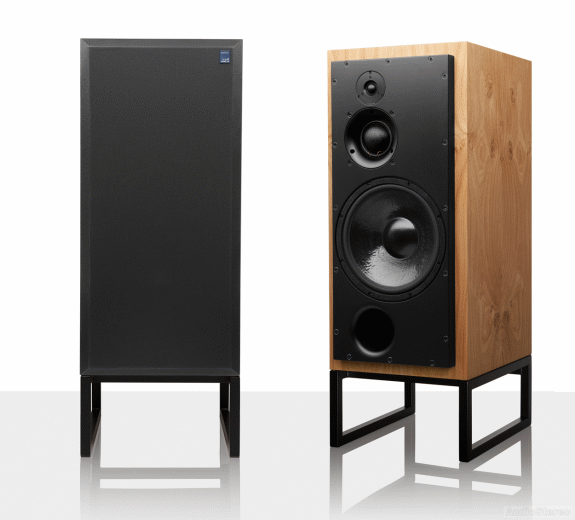

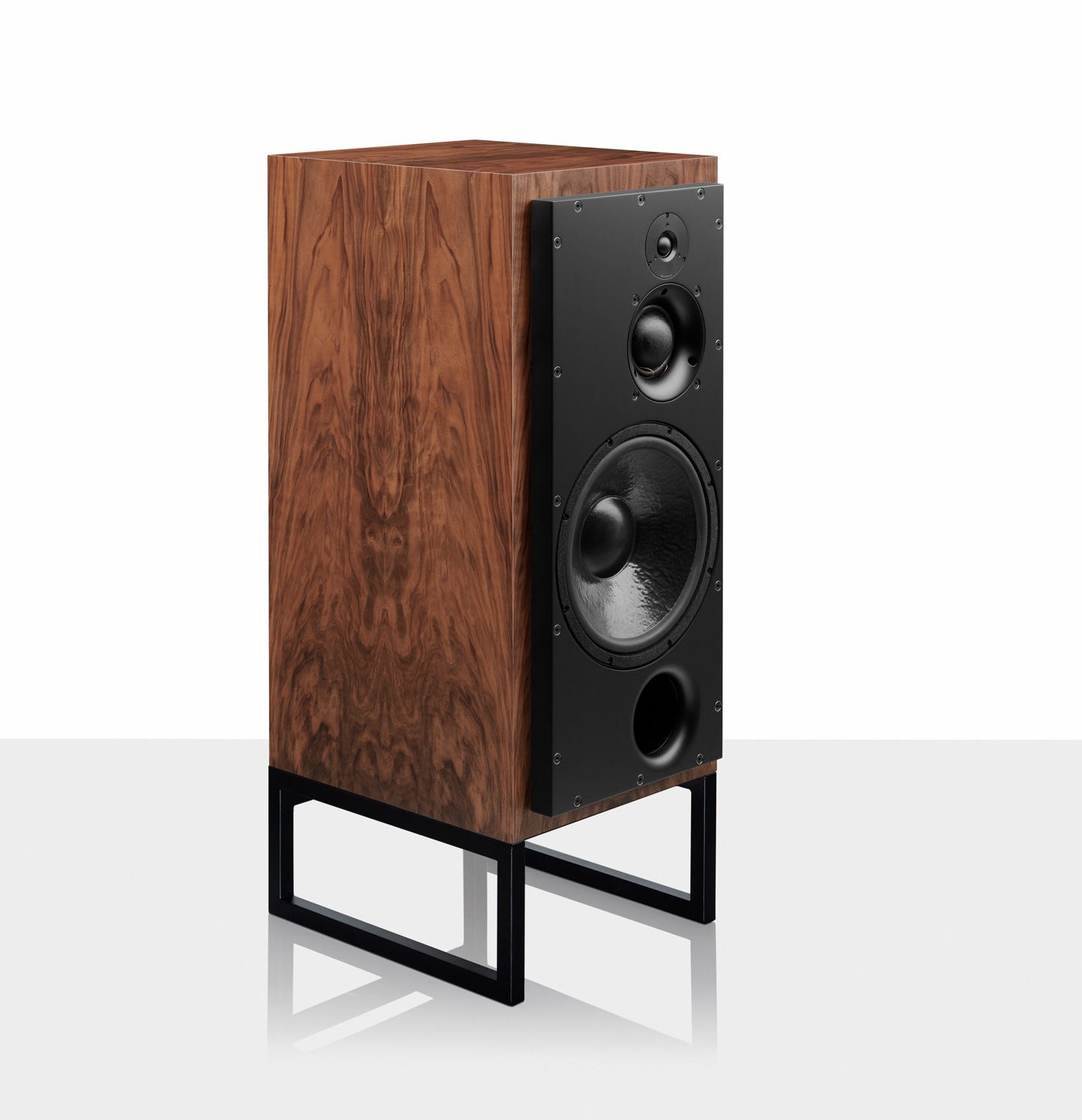

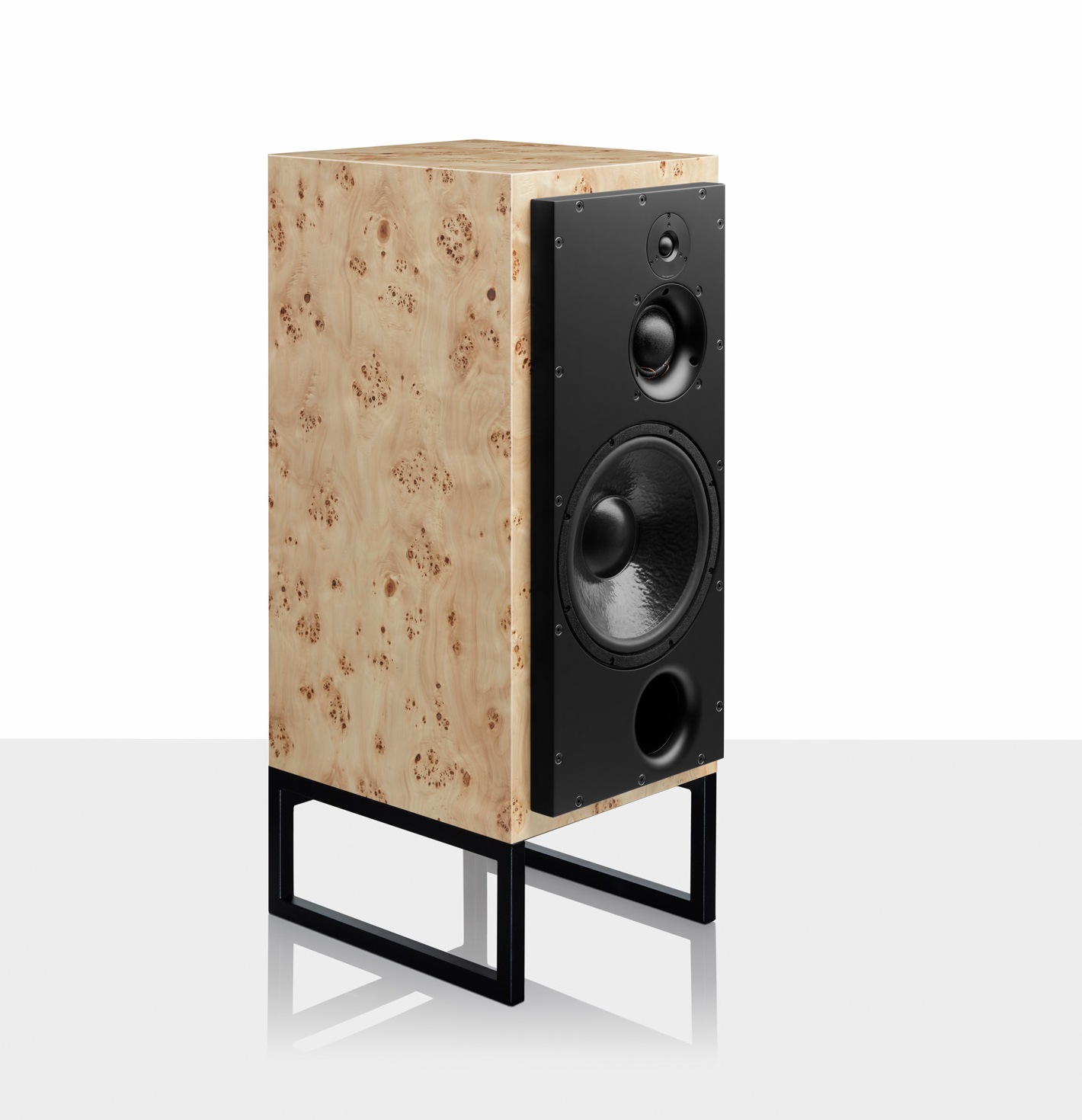

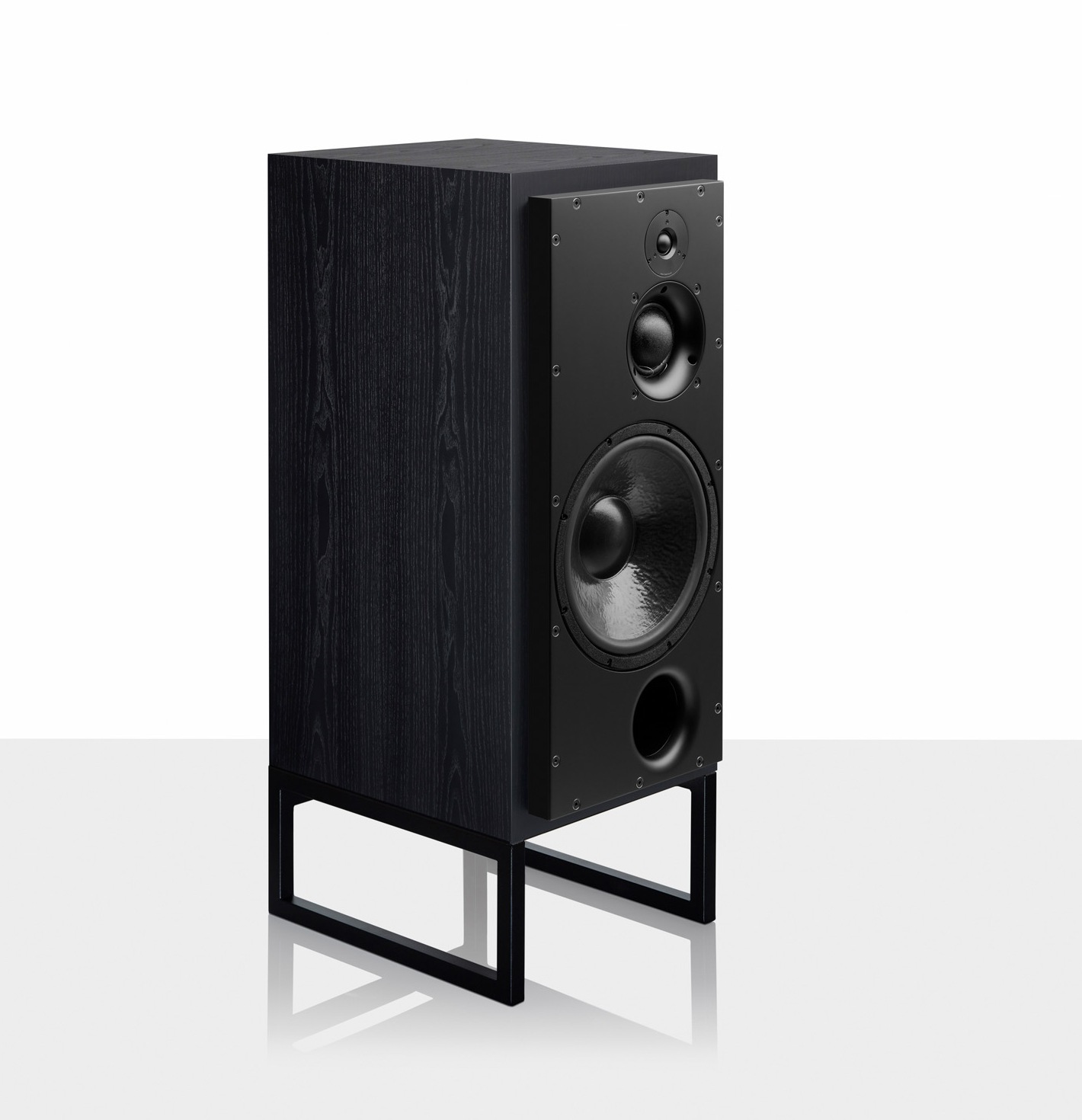

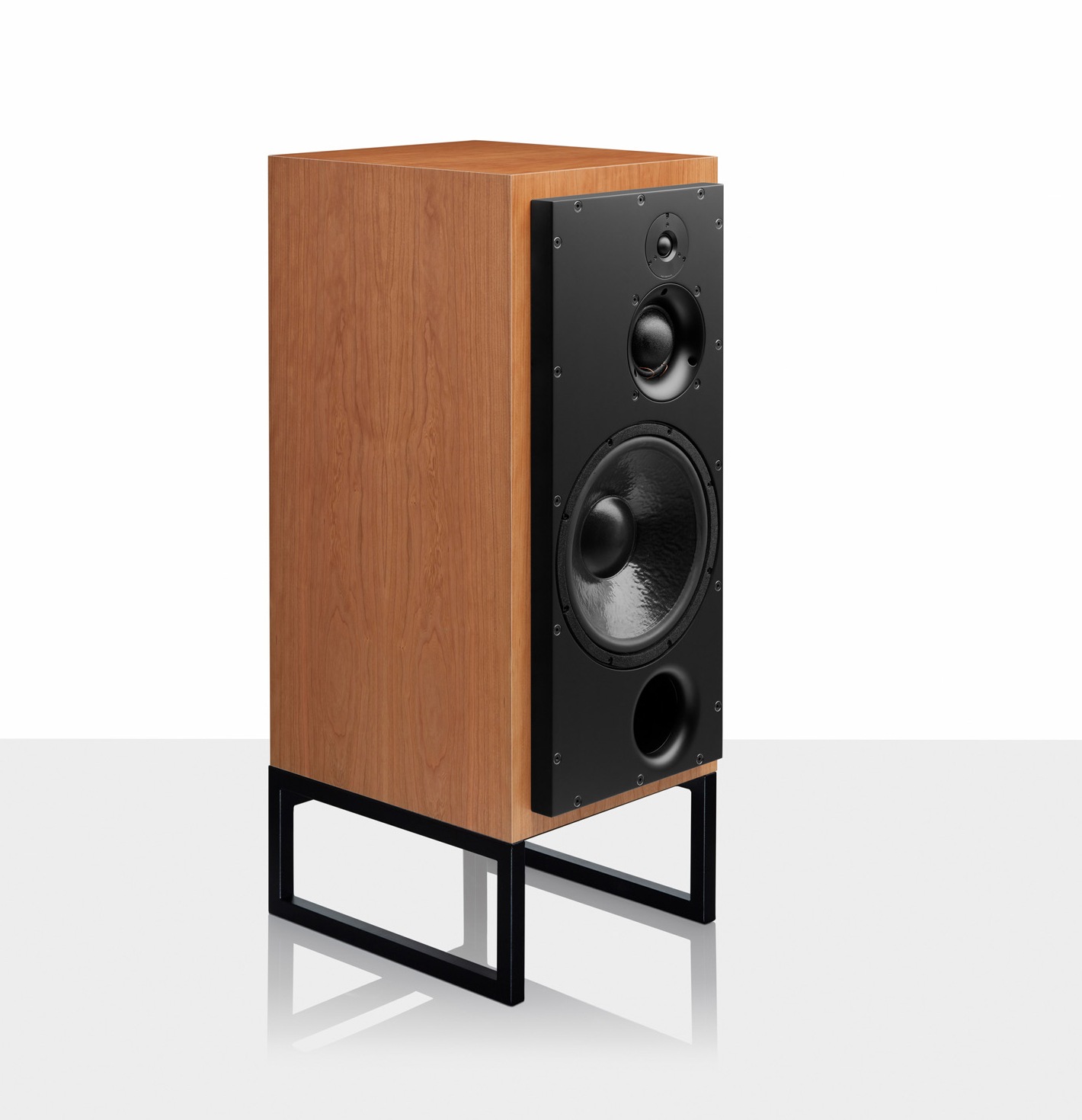

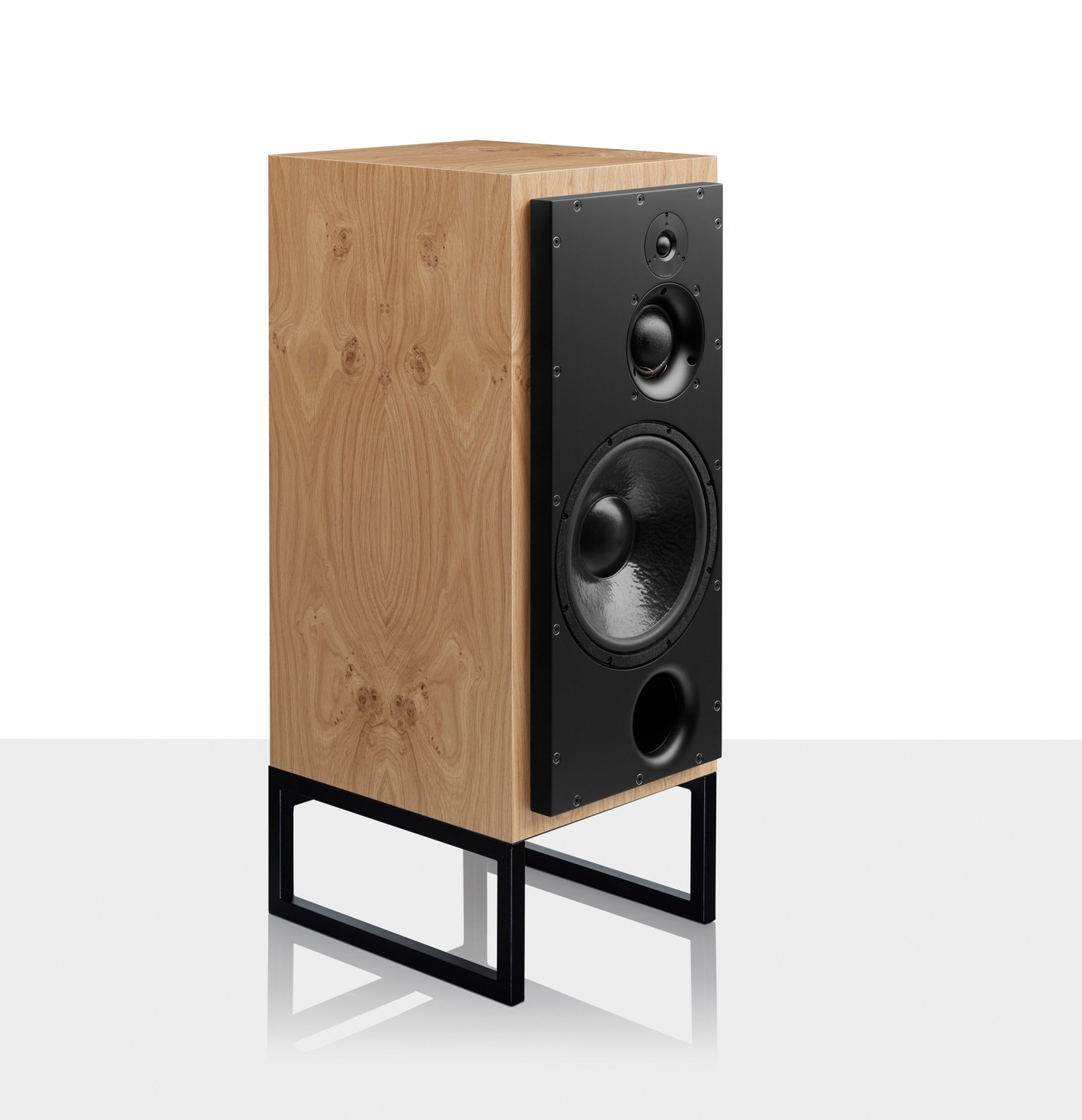

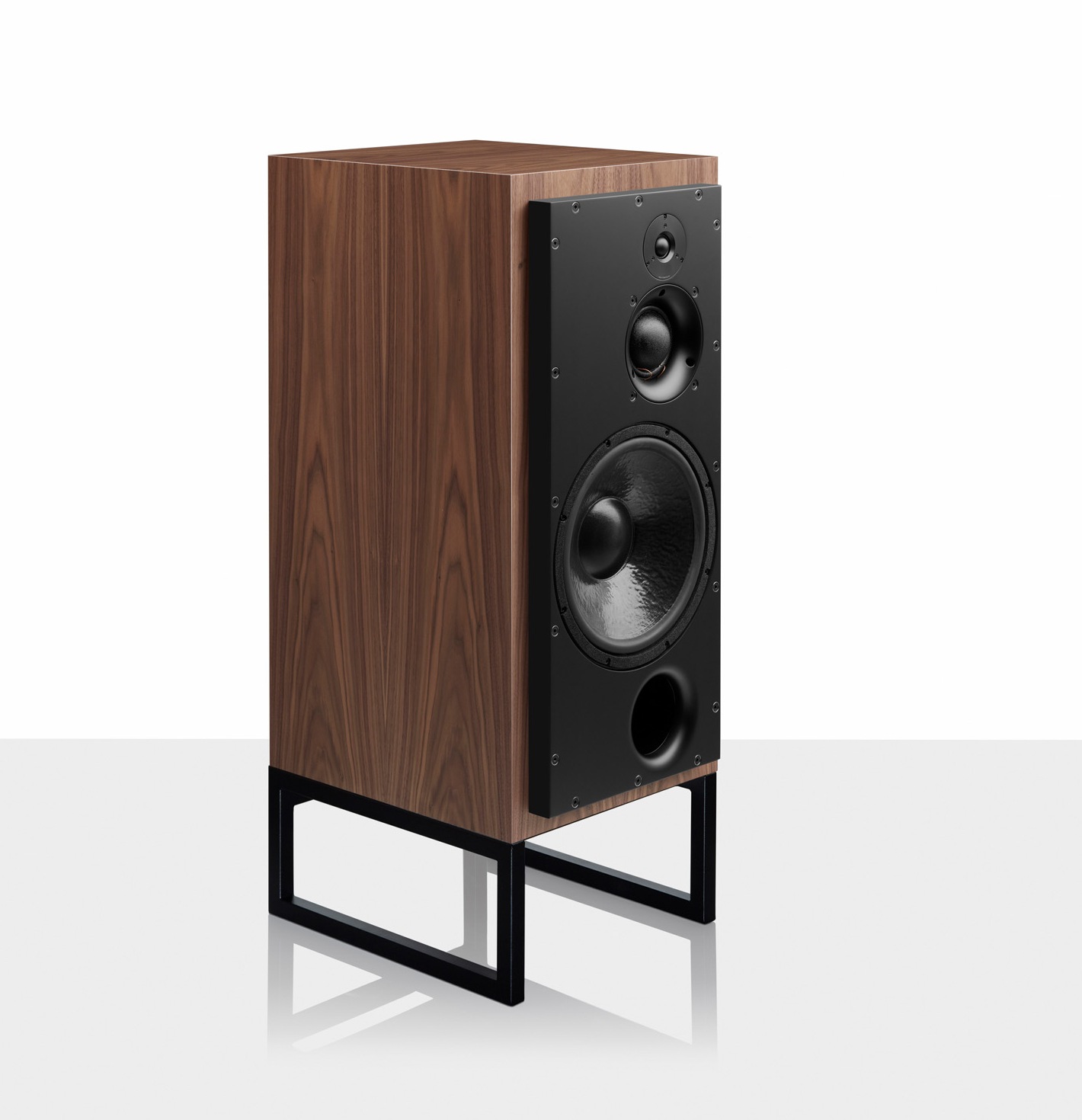

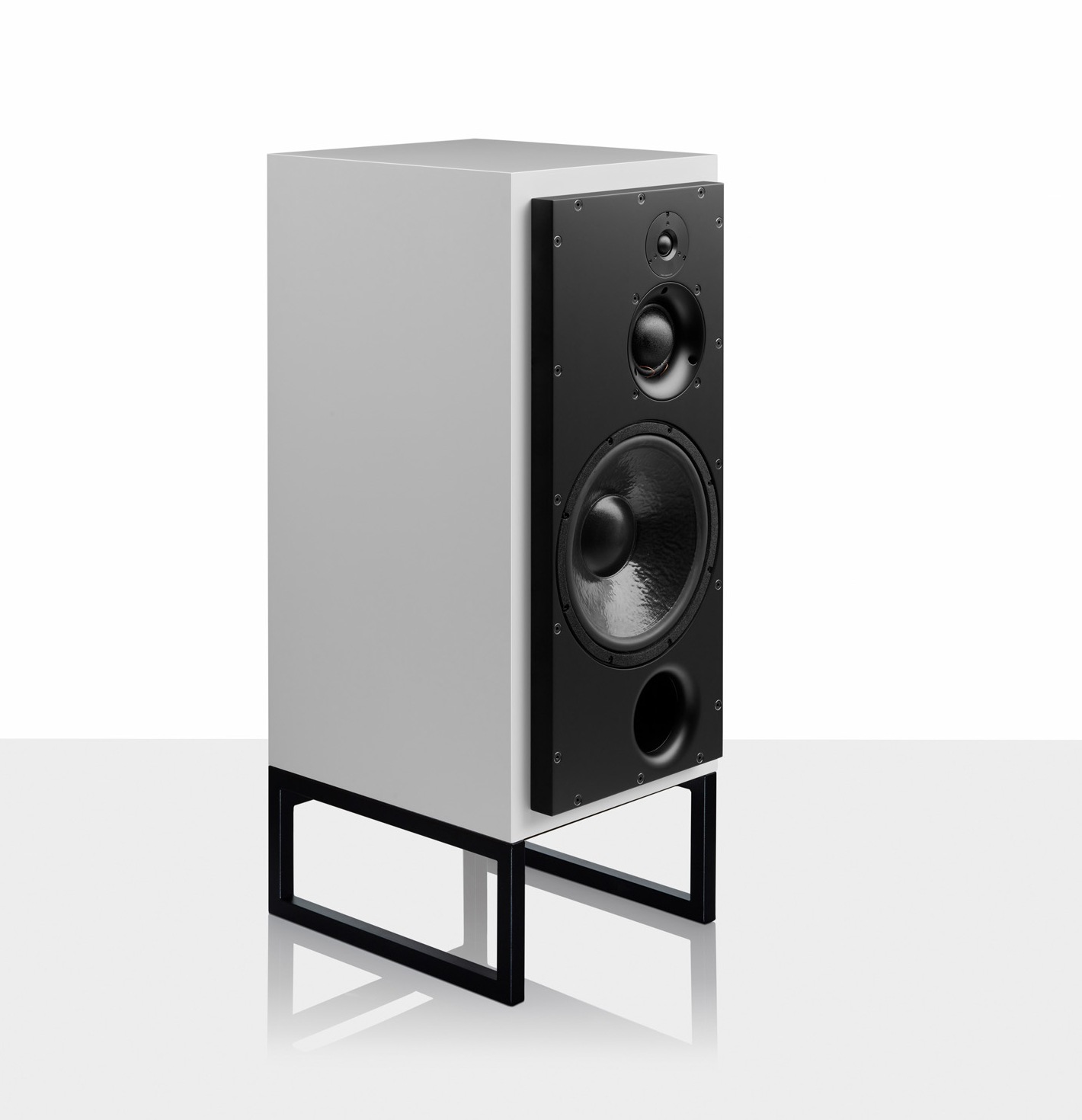

ATC SCM 100 SL - Classic Series

£13410

  << variante >>
ATC SCM 150 SL ELAC Spirit of Music CE ELAC FS 509 VX-JET Stereo Setup
SCM 150 SL Spirit of Music CE FS 509 VX-JET

ATC SCM 100 SL Features:

  • New ATC designed and built dual suspension no ferrofluid 25mm Super Dome tweeter
  • ATC 75mm Super Dome midrange
  • Latest 314mm SL Spec Bass driver
  • Massive ATC motor assembly
  • Wide, even dispersion for pin-point imaging
  • The SCM 100 SL are designed to perform at their best with the finest quality hi-fi equipment.
  • Like their smaller brother, the SCM 50 SL, the monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S Super Dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all perform-ance parameters.
  • Bass performance is equally impressive, thanks to ATC’s 12″ professional level bass driver that incorporates the company’s unique Super Linear Magnet technology.
  • Stands included in delivery.
ATC SCM 100 Super Dome tweeter ATC SCM 100 Super Dome midrange driver ATC SCM 100 Super Linear bass
ATC SCM 100 SL drivers

Specifications

Drivers: HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 314mm ATC Super Linear
Amplitude Linearity ±2dB: 65Hz – 17kHz
Frequency Response -6dB: 35Hz & 22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 88dB @ 1W @ 1m
Max continuous SPL @1m: 115dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Connectors: Binding Posts/ 4mm banana plugs, tri-wire capable
Recommended Power Amplifier: 100 to 1500 Watts (see ATC SPA2-150)
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 834 x 400 x 530 mm (1034mm height with included stand)
Weight: 57kg


ATC SCM 100 SL brochure
