ELAC FS 509 VX-JET cherry high gloss finish

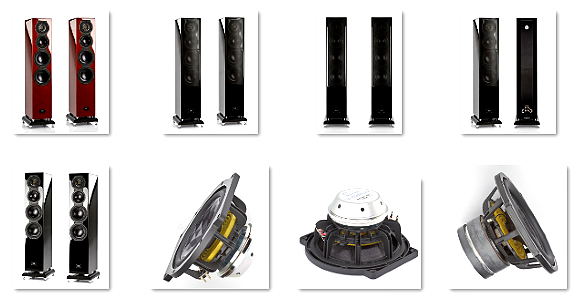

ELAC FS 509 VX-JET pictures
  << variante >>
ELAC Spirit of Music CE
ATC SCM 50 SL Stereo Setup
ATC SCM 100 SL Stereo Setup
Spirit Of Music CE SCM 100 SL
ELAC FS 509 VX-JET - Horerlebnis (Germany) review
ELAC FS 509 VX-JET - Watt (Norway) review ELAC FS 509 VX-JET- Product of the Year 2011 in Hong Kong (March 2012 No.309 issue)
ELAC FS 509 - Stereoplay (Germany) review ELAC FS 509 - AUDIO (Germany) review
ELAC FS 509 VX-JET - Stereo Sound (Japan) - GRAND PRIX 2011 Award ELAC FS 509 VX-JET - HiVI (Japan) - GRAND PRIX 2011 Award
  • TT220AS-XR: doua difuzoare Low/Bass de 220mm cu membrana sandwich hartie-aluminiu Crystal pentru excursie marita si distorsiuni minime
  • TT180AS-XR LLD: difuzor Low/Mid de 180mm cu membrana sandwich hartie-aluminiu Crystal si tehnologie LLD (Long Linear Drive) pentru liniaritate crescuta si distorsiuni minime
  • VX-JET: sistem de difuzoare midrange-tweeter concentrice si coplanare - midrange inelar (honeycomb aluminiu) si tweeter JET III
  • Controlul dispersiei: difuzorul coaxial de medii-inalte VX-JET poate fi pozitionat prin ajustarea unui buton. Boxa ofera astfel posibilitatea ajustarii paternului de dispersie in concordanta cu acustica incaperii dar si cu preferintele auditoriului.

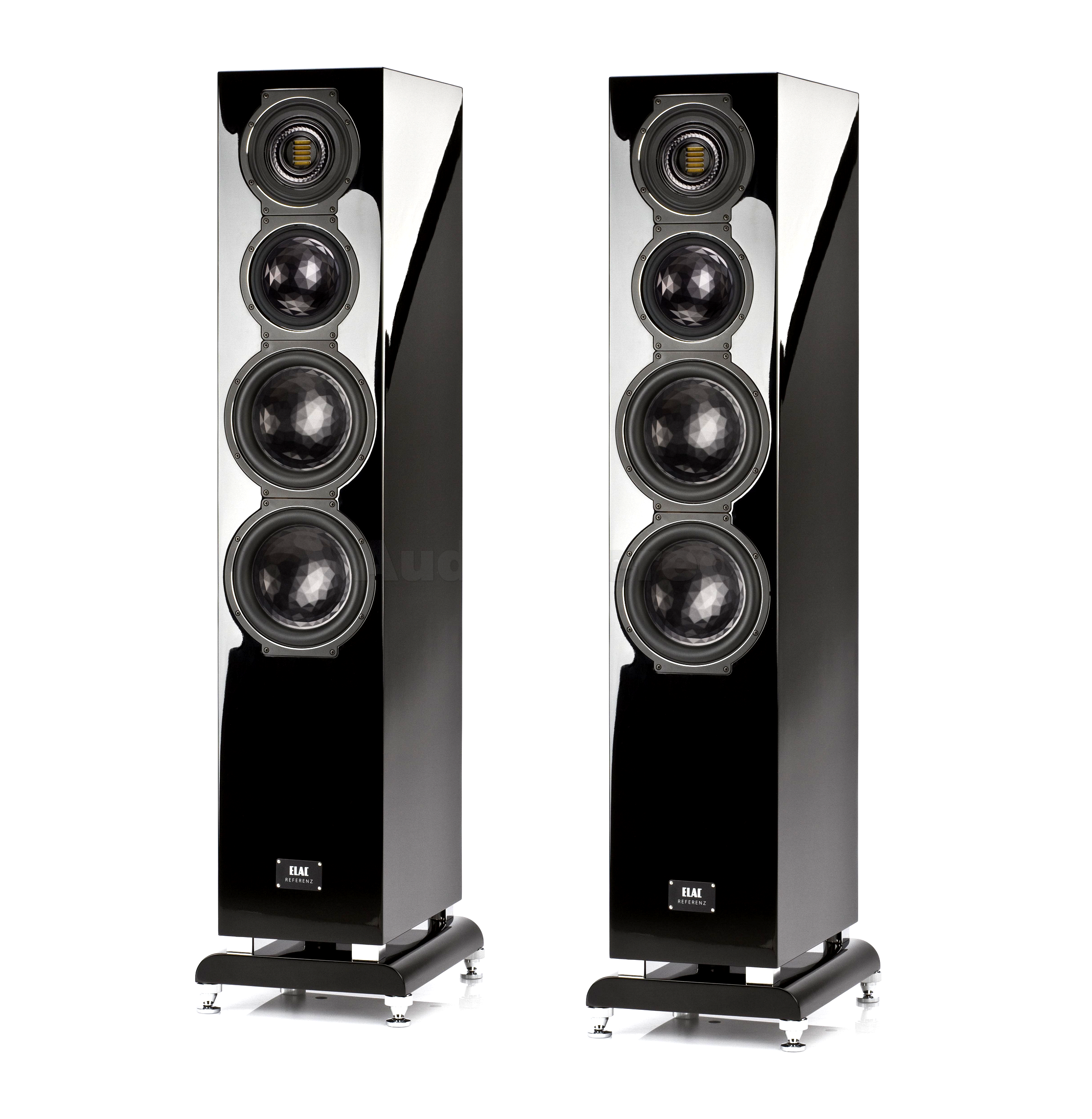

FS 509 VX-JET:

Big, bigger, great - Discover the perfect rotation. The adjustable giants that make us just proud.

The FS 509 VX-JET presents a unrivaled sovereignty in the reproduction of any musical material, however sophisticated, irrespective of the size of the room. Thanks to the VX-JET with the innovative twist, the 4-way bass reflex speaker can be adapted to the room itself or to the personal preference of the listener - from the image sharpness of a near-field monitor to the space-grabbing, detached sound.

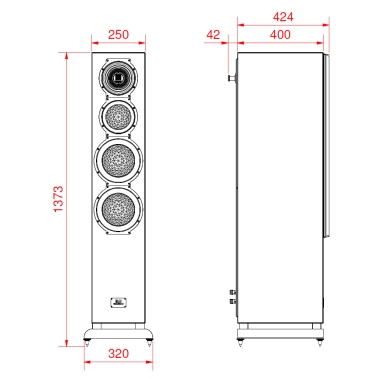

Dimensions H × W × D
1373 × 250 × 400 mm Details
320 × 466 mm base plate
ca 50 kg
4 ways, bass reflex
Bass Ports
2 × 220 mm AS-XR cone
1 × 100 mm (down firing)
Low Midrange
1 × 180 mm AS-XR cone, LLD
1 × 50 mm / 105 mm Ø AS-XR
honeycomb ring radiator
1 × JET III (mag. shielded)
Recom. Amplifier Power at Nominal Impedance
80-600 W / channel
Crossover Frequency
120 / 600 / 2,800 Hz
89 dB / 2.83 V / 1 m
Nominal Impedance
4 Ohm
Minimum Impedance
3.1 Ohm / 75 Hz
Frequency Range acc. to IEC 268-5
24 ··· 50,000 Hz
Nominal / Peak Power Handling
280 / 359 W
black high gloss, cherry veneer high gloss
ELAC FS 509 VX-JET - Brochure

VX-JET coaxial and coplanar Midrange-Treble Driver System

The VX-JET is a unique combination of a flat (nomex honeycomb with crystal membrane) ring radiator midrange driver and a concentrically arranged JET tweeter. The innovation of the VX-JET is the variably adjustable position of the driver, therefore the name VX-JET.

By means of an continuously adjusting knob at the rear side of the speaker the whole VX-JET driver may be moved 8 mm out (in front of the baffle) or 8 mm in (behind the baffle). By varying the position of the VX-JET, the directivity pattern of the mid-/highfrequency range can be adjusted. The result is not a variation of the sound of the speaker but a variation of the ratio between direct and reflected sound at the listening position. For the first time the VX-JET allows a constant spaciousness over a number of different rooms and listening distances.

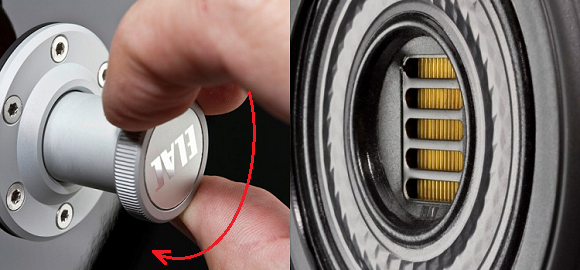

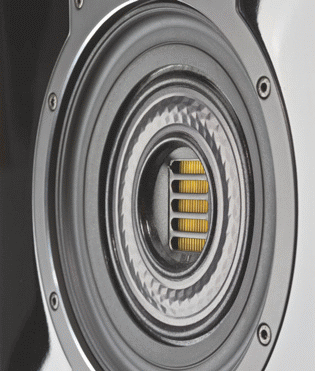

  ELAC 509 VX-JET ring radiator tweeter-midrange adjustment
ELAC VX-JET - Balancing between direct and reflected sound
By continuously varying the position of the VX-JET the directivity pattern of the mid-high frequency range can be adjusted.

Low Midrange Unit

A new 180mm low midrange driver, equipped with all the well known ELAC technologies including crystal membrane and LLD technology completes the driver arrangement and guarantees that no detail of the recording gets lost.

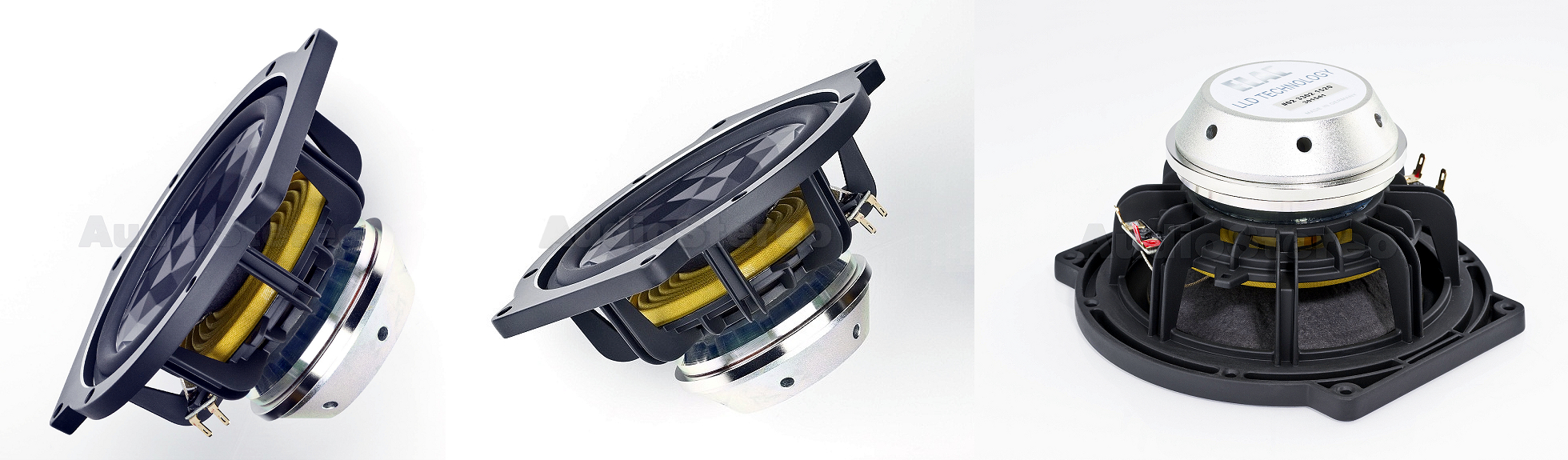

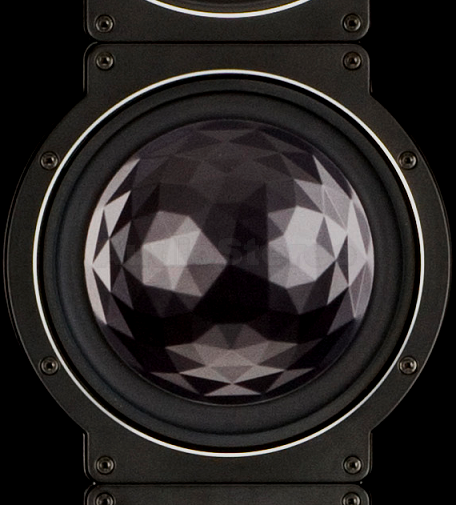

ELAC FS 509 VX-JET - 180mm AS-XR LLD technology low midrange driver
ELAC FS 509 VX-JET - 180mm AS-XR LLD technology low midrange driver
ELAC 180mm AS-XR LLD technology low midrange driver

Bass Units

With a diameter of 220 mm the new bass drivers not only let expect their performance. The symbiosis of crystal membrane technology and impressive drive system present a deep and absolutely precise bass reproduction, not depending on the selected volume.

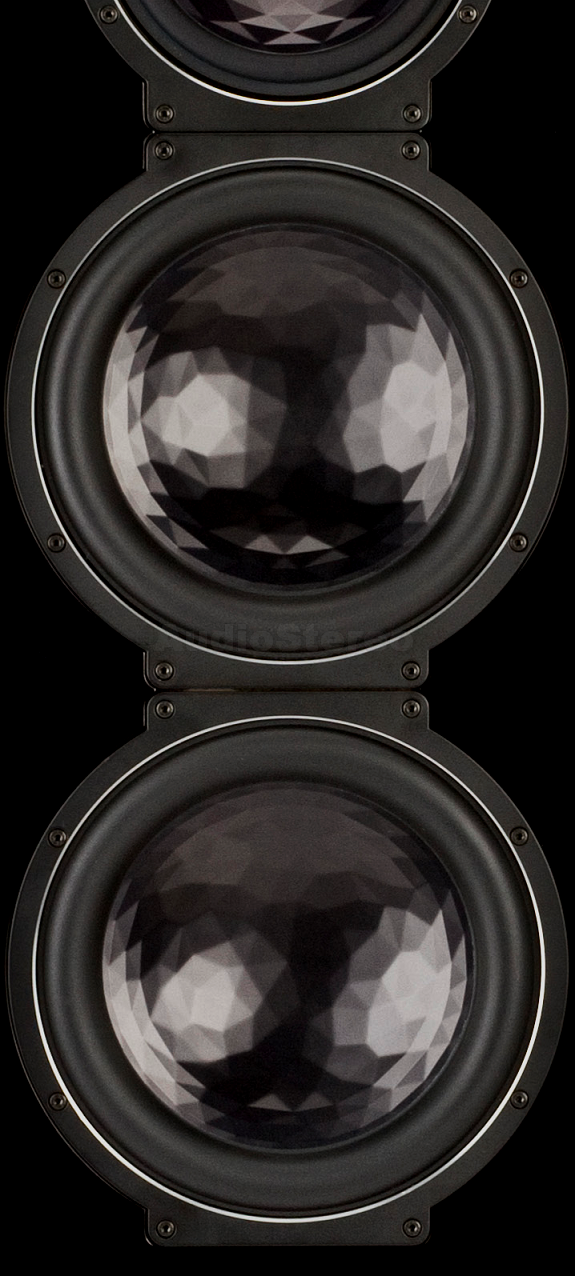

ELAC FS 509 VX-JET - 220mm bass drivers

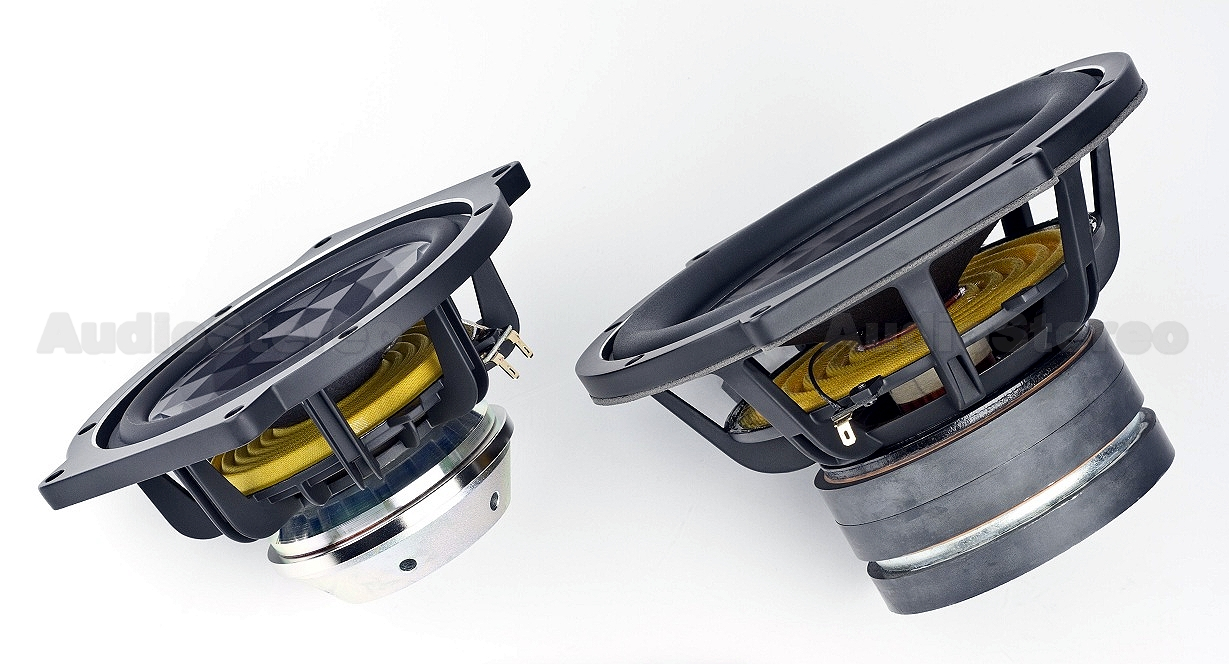

ELAC FS 509 VX-JET - 180mm low midrange and 220mm bass drivers
ELAC 180mm low midrange driver and 220mm bass driver
