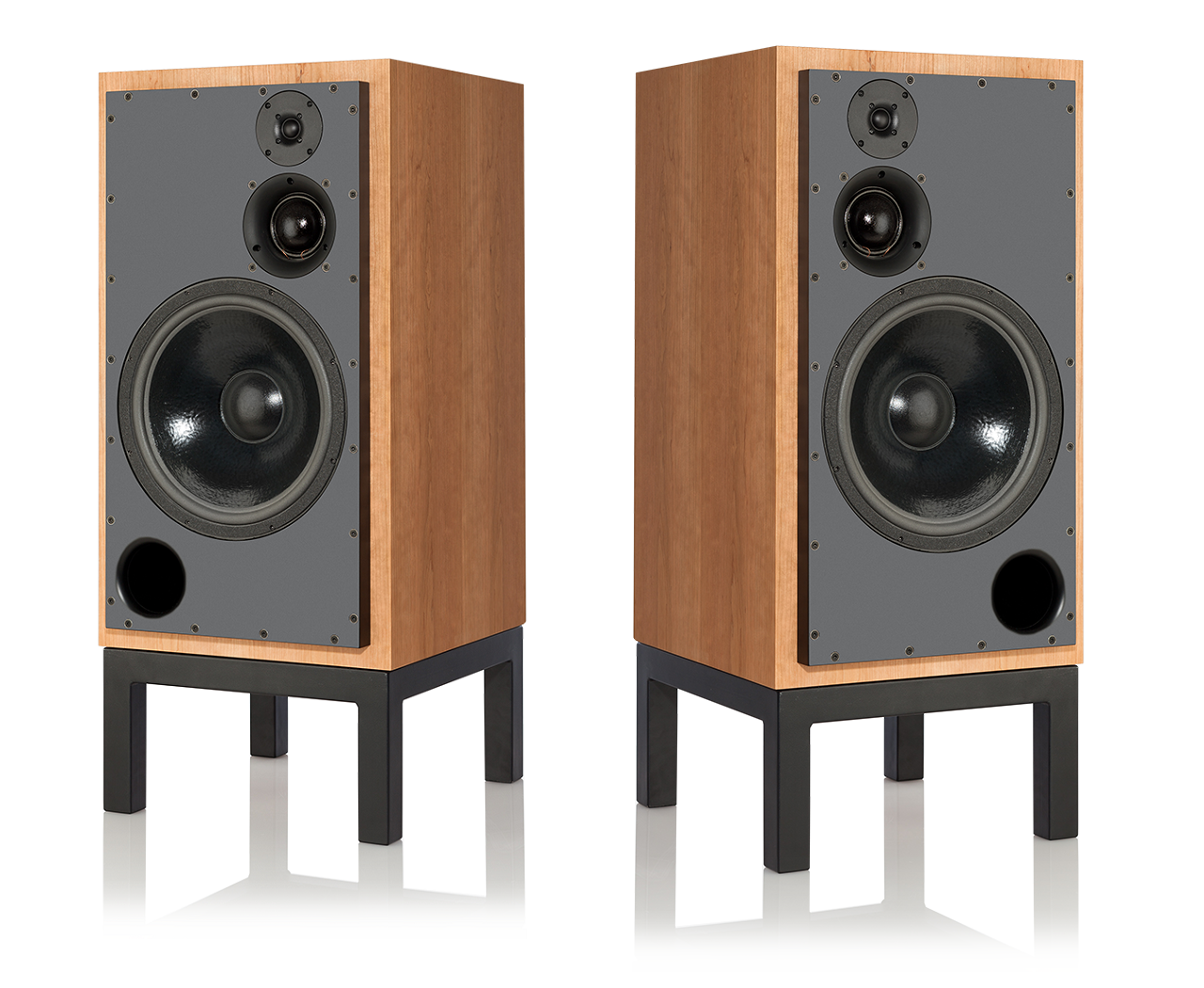

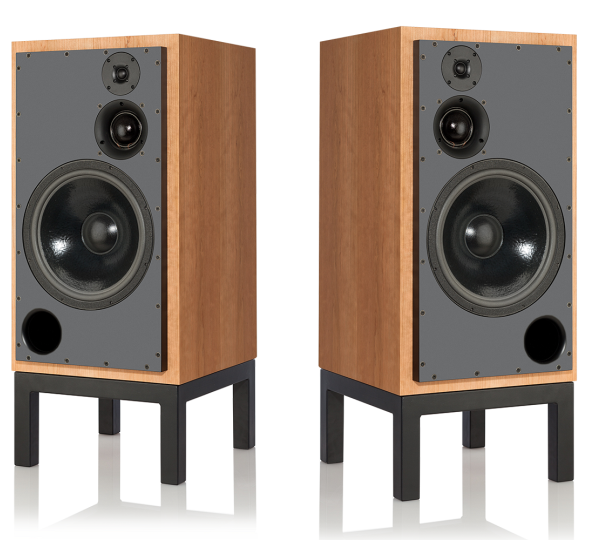

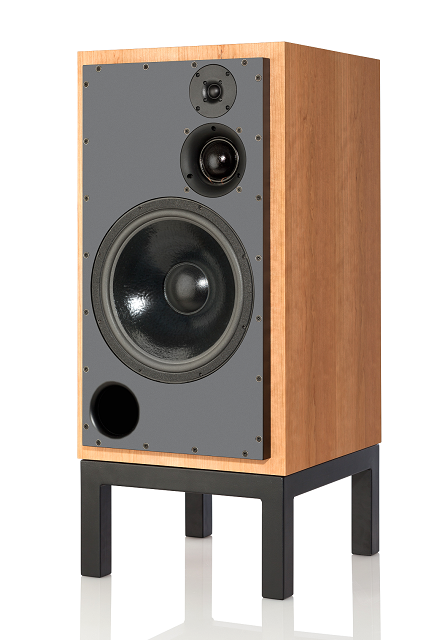

ATC SCM 150 SL - Classic Series

£16999

  << variante >>
ATC SCM 100 SL ELAC Spirit of Music CE ELAC FS 509 VX-JET Stereo Setup
SCM 100 SL Spirit Of Music CE FS 509 VX-JET

ATC SCM 150 SL Features:

  • New ATC designed and built dual suspension no ferrofluid 25mm Super Dome tweeter
  • ATC 75mm Super Dome midrange
  • Latest 375mm SL Spec Bass driver
  • Massive ATC motor assembly
  • Wide, even dispersion for pin-point imaging
  • The SCM150 SL is designed to perform at their best with the finest quality hi-fi equipment.
  • Like their smaller brother, the SCM50 ASL & 100 the monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S Super Dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all perform-ance parameters.
  • Bass performance is equally impressive, thanks to ATC’s 15″ professional level bass driver that incorporates the company’s unique Super Linear Magnet technology.
  • Stands included in delivery.
ATC SCM 150 Super Dome tweeter ATC SCM 150 Super Dome midrange driver ATC SCM 150 Super Linear bass
ATC SCM 150 SL drivers

Specifications

Drivers:  HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 375mm ATC Super Linear
Amplitude Linearity ±2dB: 60Hz – 17kHz
Frequency Response -6dB: 25Hz & 22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 90dB @ 1W @ 1m
Max continuous SPL @1m: 117dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Connectors: Binding Posts/ 4mm banana plugs, tri-wire capable
Recommended Power Amplifier: 100 to 1500 Watts (see ATC SPA2-150)
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 884 x 495 x 570 mm (1084mm height with included stand)
Weight: 75kg




ATC SCM 150 SL brochure
