ATC SCM 50 SL - Classic Series

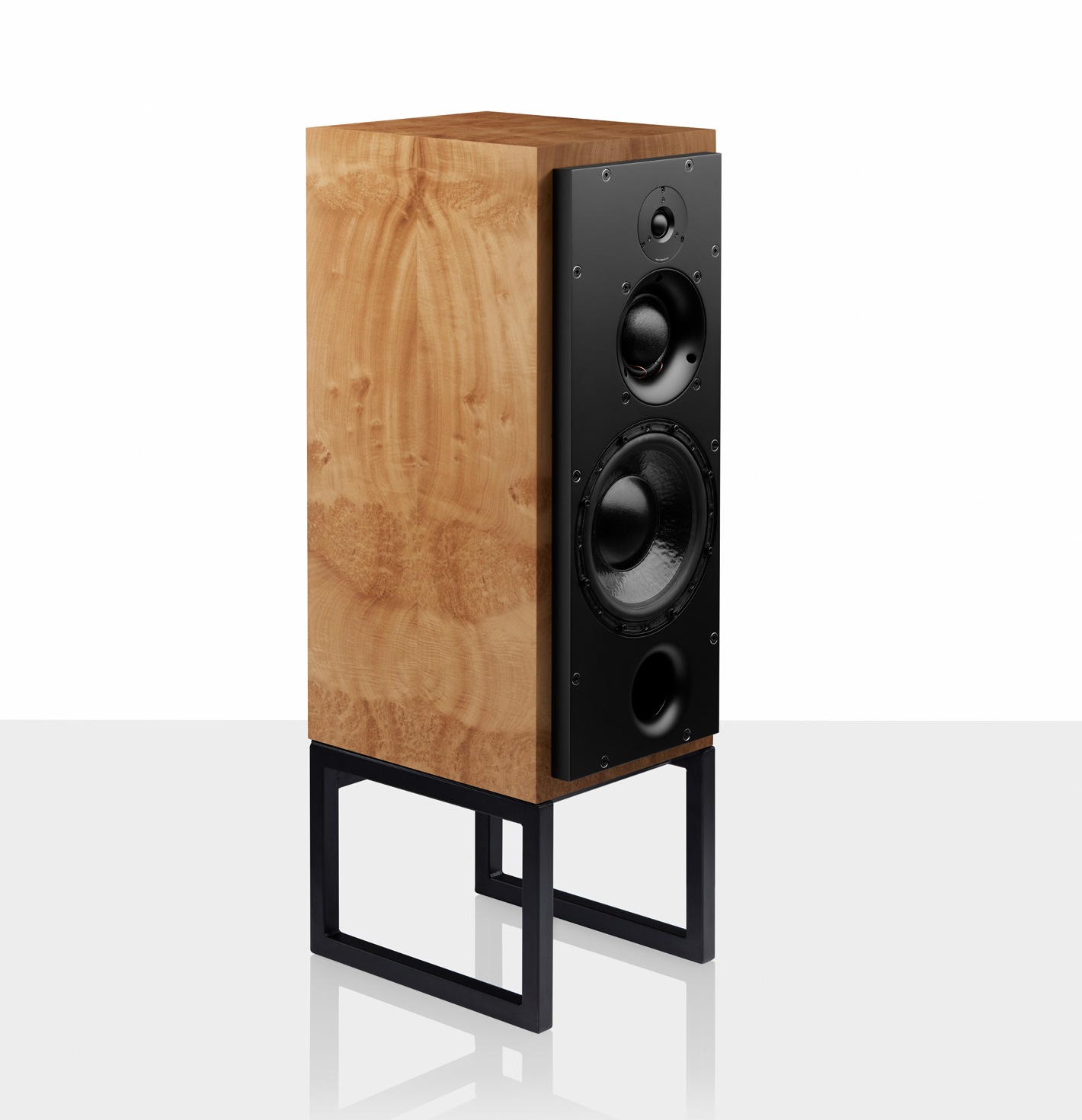

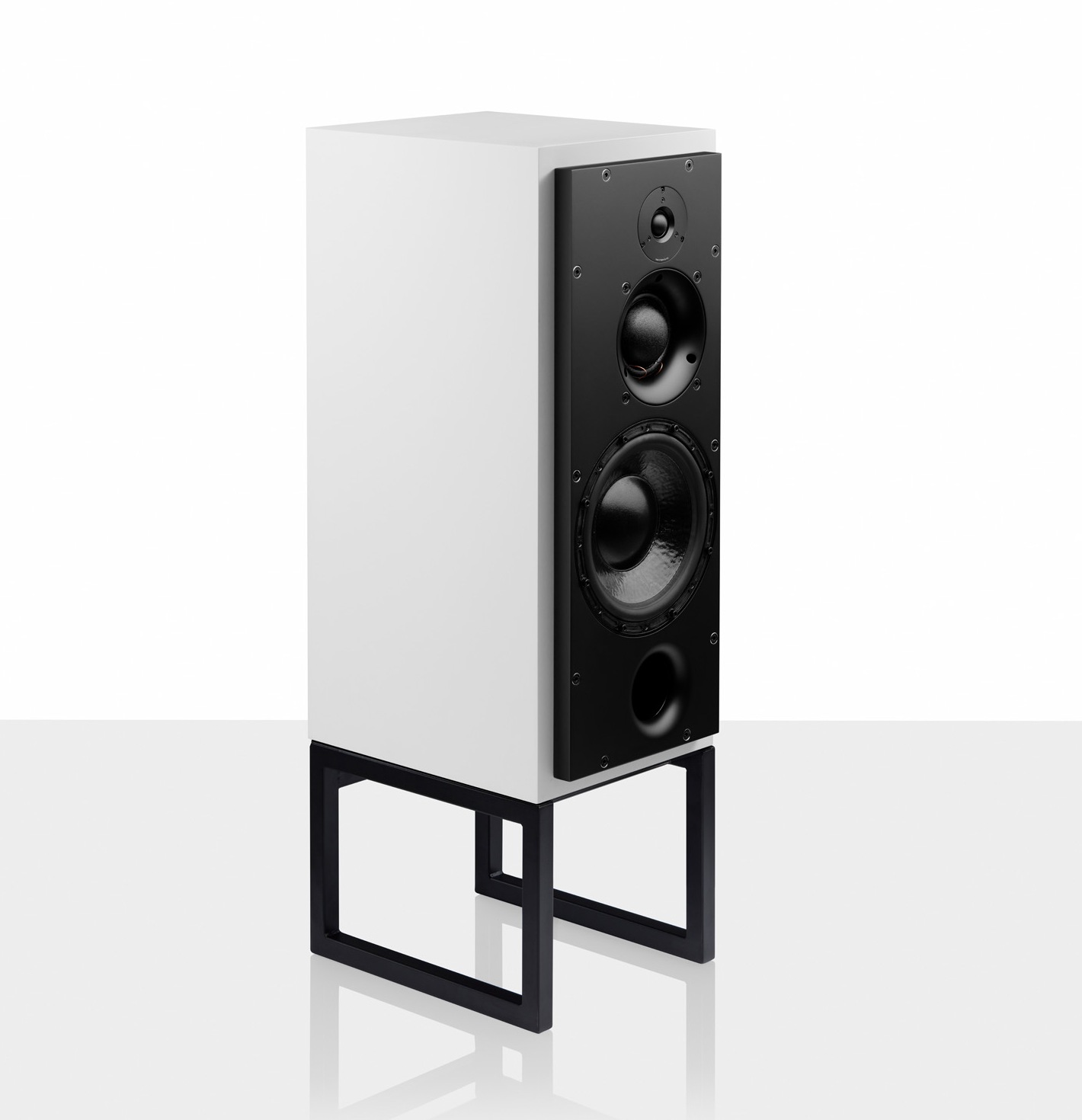

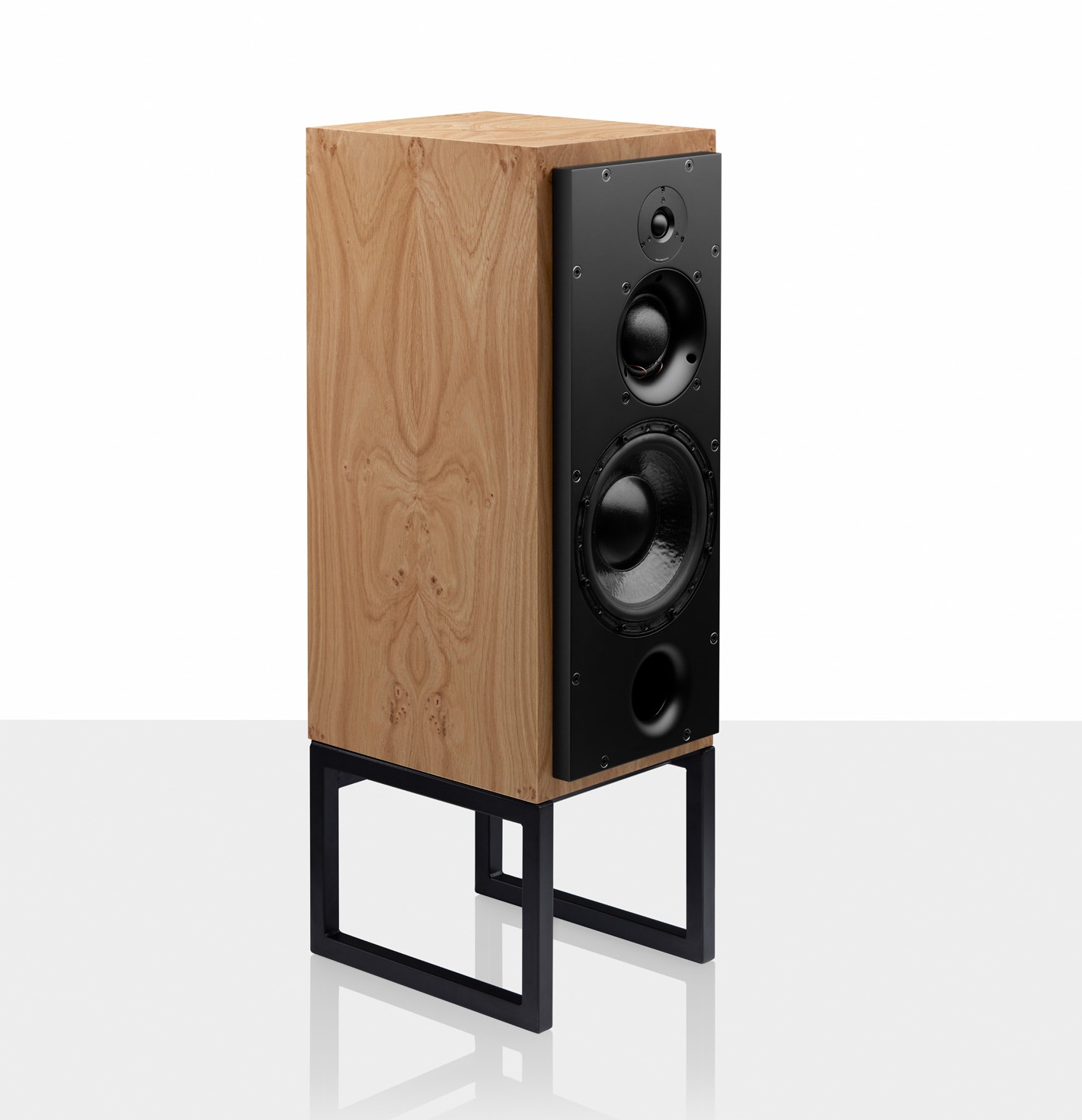

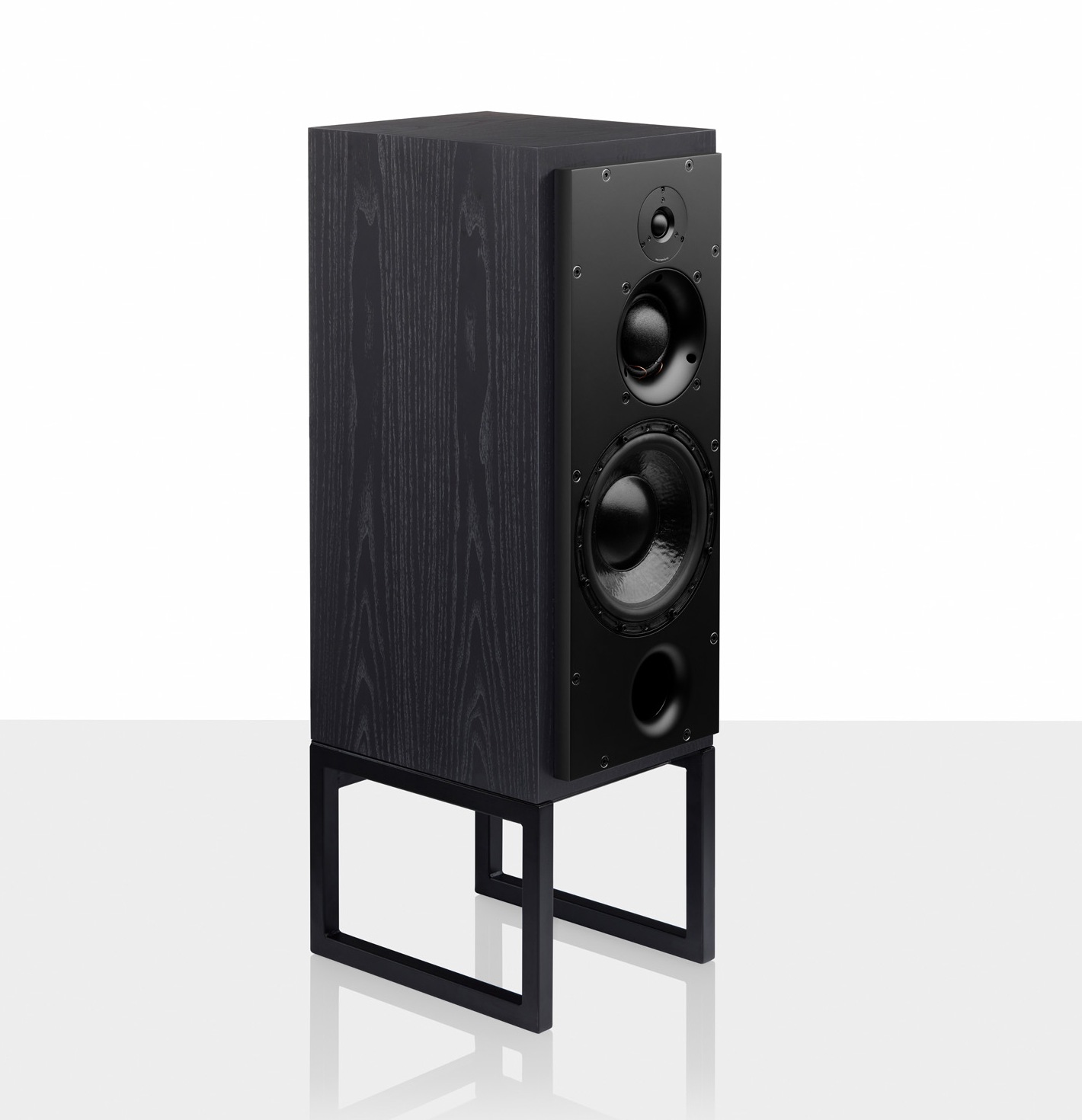

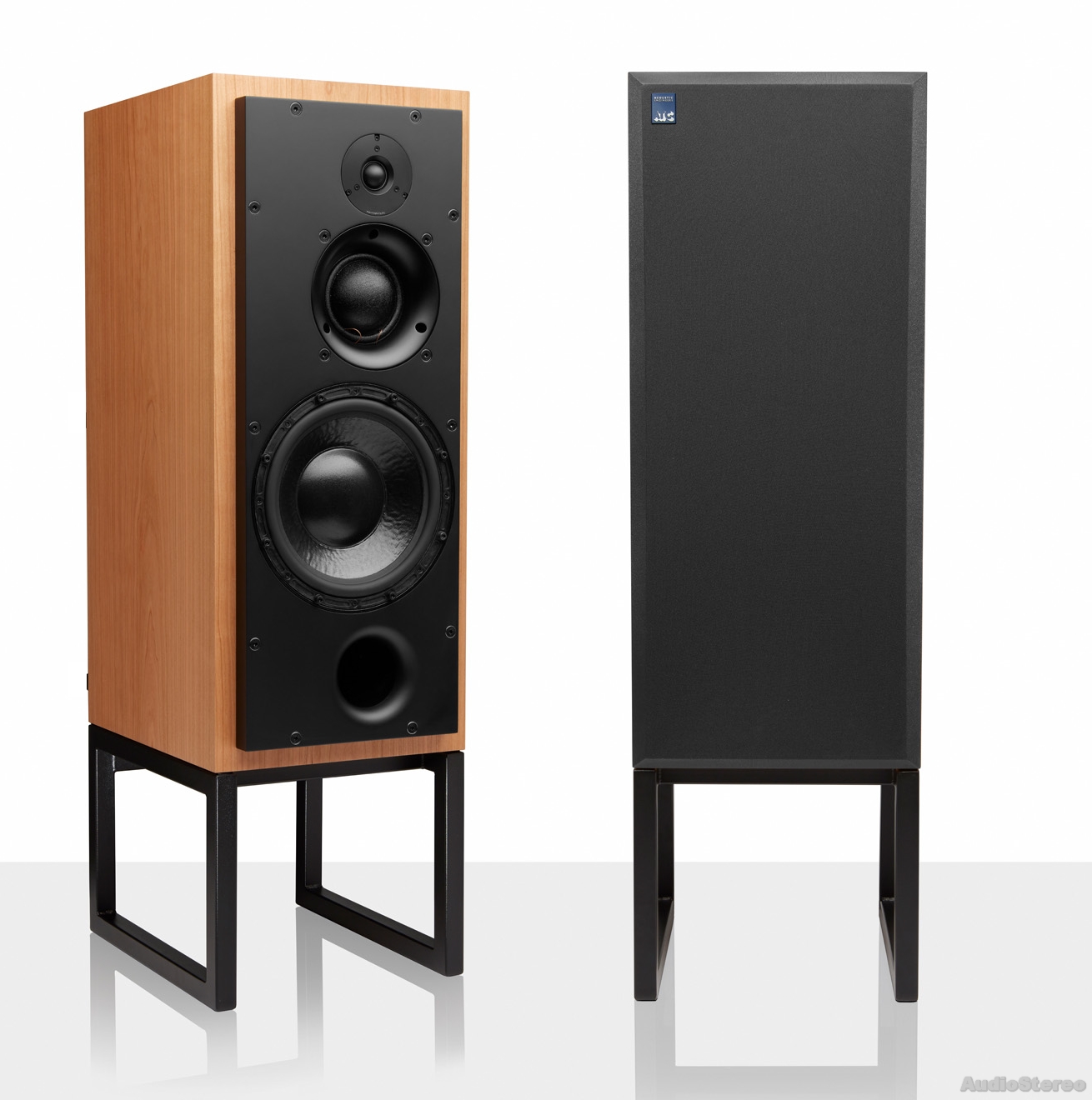

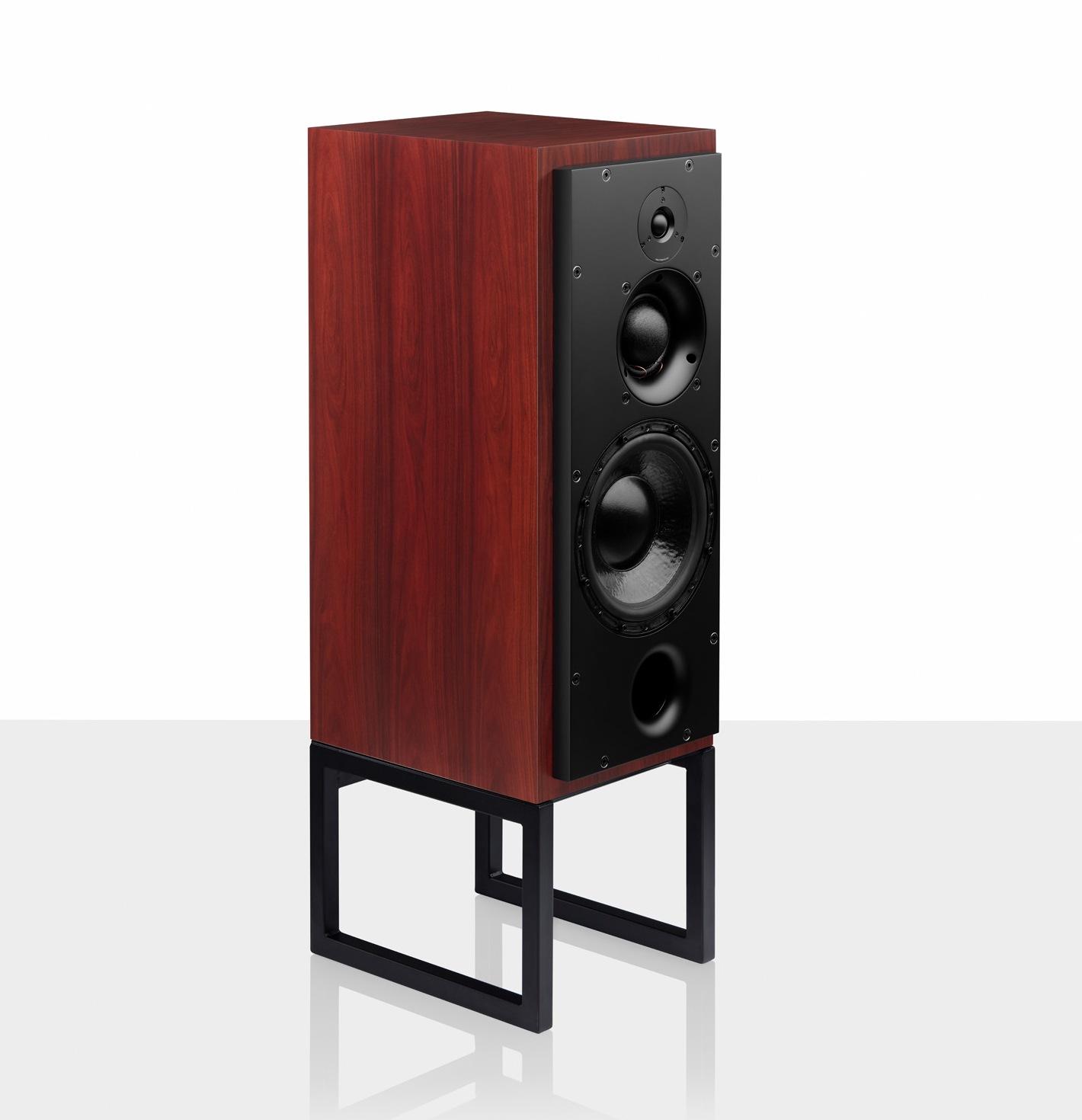

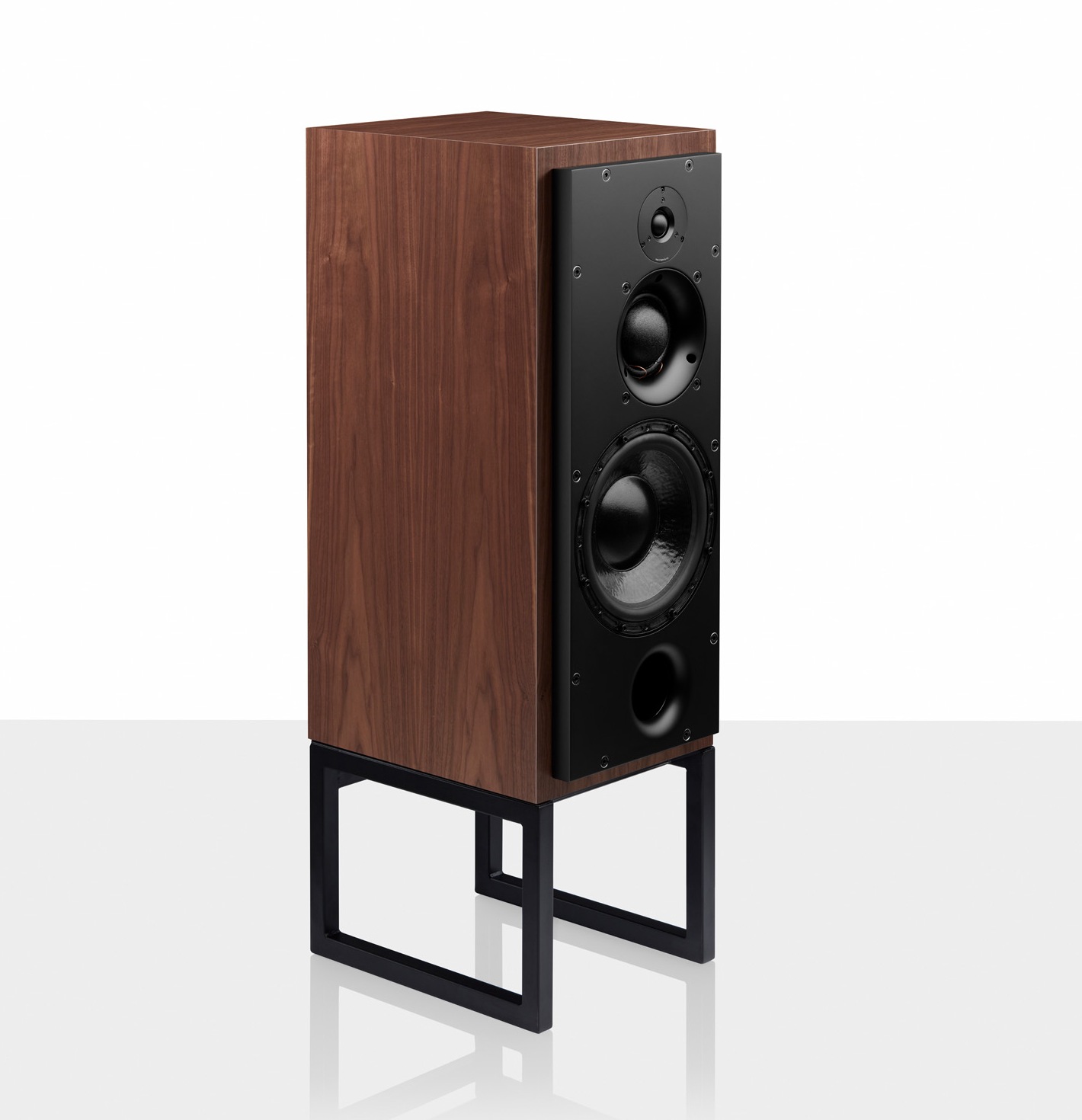

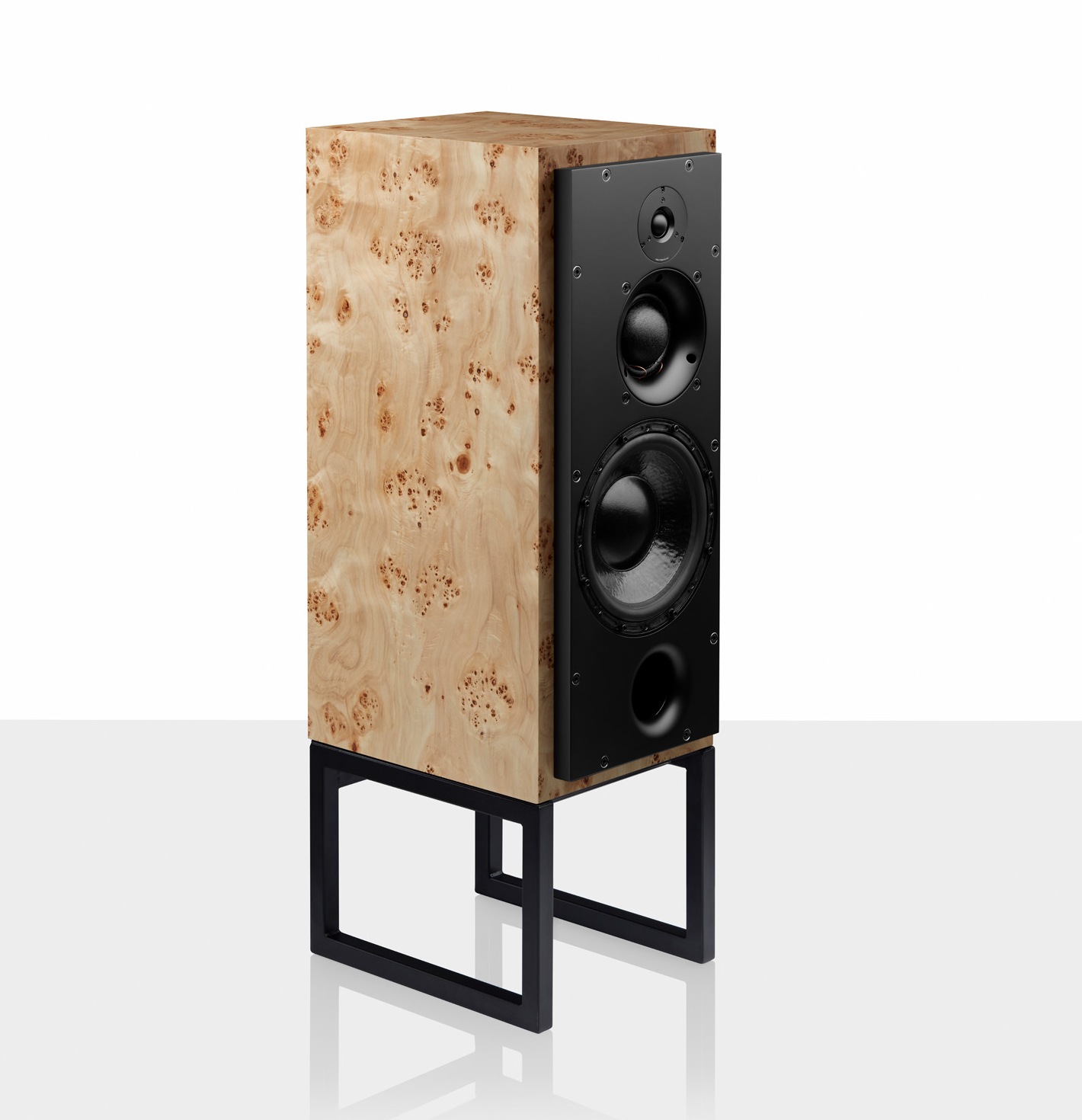

ATC SCM 50 SL pics


  << variante >>
ATC SCM 100 SL ELAC Spirit of Music CE ELAC FS 509 VX-JET Stereo Setup
SCM 100 SL Spirit Of Music CE FS 509 VX-JET

ATC SCM 50 SL Overview:

ATC SCM 50 SL 25mm Dual Suspension ‘S-Spec’ Tweeter ATC SCM 50 SL 75mm Dual Suspension Super Dome Midrange
25mm Dual Suspension ‘S-Spec’ Tweeter 75mm Dual Suspension Super Dome Midrange
ATC SCM 50 SL 250mm SL Super Linear Bass
250mm SL Super Linear Bass


Drivers: HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 250mm ATC Super Linear
Amplitude Linearity ±2dB: 70Hz – 17kHz
Frequency Response -6dB: 40Hz – 22kHz (freestanding, no room gain)
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 87dB @ 1W @ 1m
Max continuous SPL @1m: 112dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Connectors: Binding Posts/ 4mm banana plugs, tri-wire capable
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 717 x 304 x 425 mm (967mm height with included stand)
Weight: 41.1kg

ATC SCM 50 SL user manual
