ELAC FS 247 Sapphire Edition

AudioStereo logo
ELAC FS 247 Sapphire Edition

na

"The whole sound from the properly three-dimensional imaging to the driving rhythm was incredibly cohesive and enjoyable. ELAC's gorgeous FS 247 Sapphires are simply masters at capturing the whole picture, from the inflections in BB King's accent to the smooth slide quitar and warm ambience of the recording studio"

Hi-Fi News (UK) review



"Sound is unusually light, is detailed, is plastic, is air, as if hovering. The sensation of very thin sound recording appears. If we allow analogy with the painting, then these are water color or pastel. The sonic means of model is very well designed. It is beautiful, holographically precise, elegant according to figure, is volumetric, transparent musical scene. The pair of compact floorstand loudspeakers with the small midbass drivers produces to the surprise influential, subjectively sufficiently deep, very well designed in tone and temporary sense..."

Stereo & Video (Russia) review



"... Should your biases or tastes favor a laid-back bodacious sound, an audition with the ELAC FS 247 will likely not end in merry toasts of brotherhood - but the speaker would feel the same about you. The 247's character is unequivocal and clearly carries the maker's imprimatur of philosophy and design brief, a statement of purpose I cherish in products. In this case, the aim was to create a speaker of extraordinary staging, timing and high resolution for a direct, energetic, intense listening experience - with mission patently accomplished. Compared to other speakers with similar virtues, ELAC's FS 247 offers pronounced long-term utility not least because of its special tweeter. Considering the asking price, this package of qualities is anything but common. Ideally, you'd not leash this speaker to components or cables suspected of undue bite or sharpness since such matters would be magnified by a transducer of this caliber accuracy."

6moons (Germany) review

ELAC FS 247 Sapphire Edition - Hi-Fi News (UK) review
ELAC FS 247 - Japanese "STEREO SOUND" BEST BUY Award
AUDIO (Germany) review of FS 247
STEREO (Germany) review of FS 247
HiFi Test (Germany) review of ELAC FS 247
Stereoplay (Germany) review of FS 247
ELAC FS 247 - REVUE DU SON (France) Nr.327 - 5 Etoiles/ Recommande
STEREO & VIDEO (Russia) review of FS 247
DVDXpert (Russia) review of FS 247
Lautsprecher Test (Germany) review of ELAC FS 247

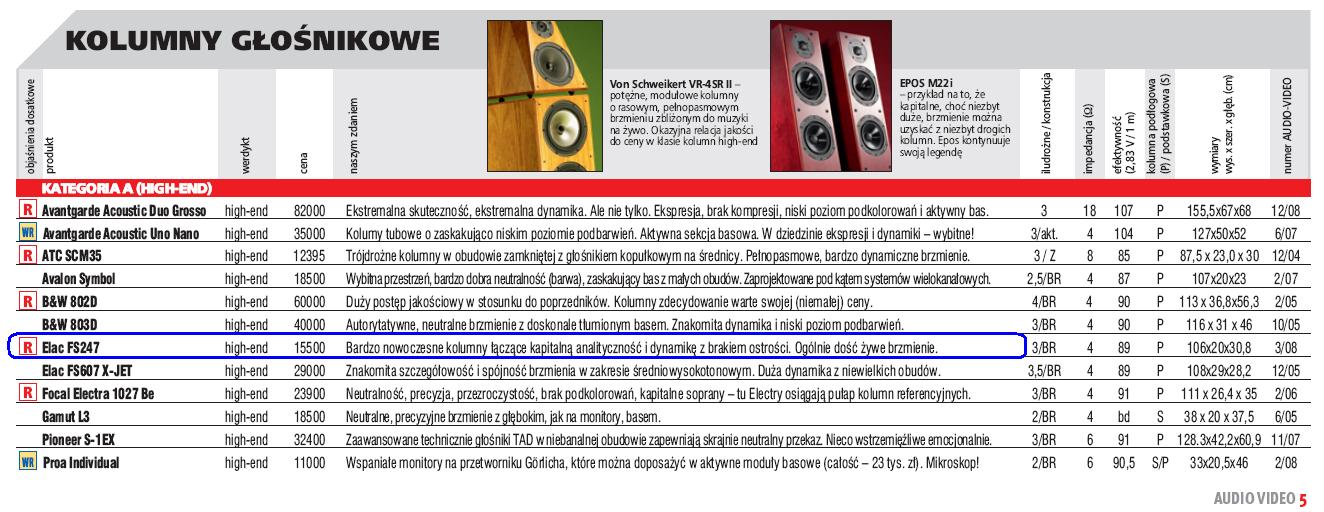

ELAC FS 247 - AUDIOVIDEO (Poland) 03/2008 - KATEGORIA A (Hi-END) and TEST WINNER



  • TT150AS-XR: difuzoare bass si midbass cu membrane sandwich hartie-aluminiu "Crystal"
  • JET III: tweeter cu tehnologie Air-Motion-Transformer (folded foil) + inel pentru controlul dispersiei
  • DC ring (JET Dispersion Control): inel pentru controlul dispersiei ce se monteaza in jurul tweeterului JET

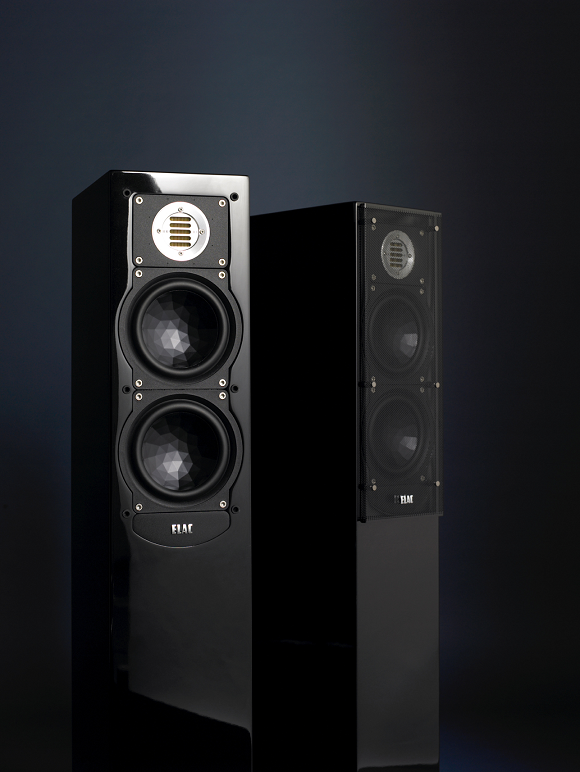

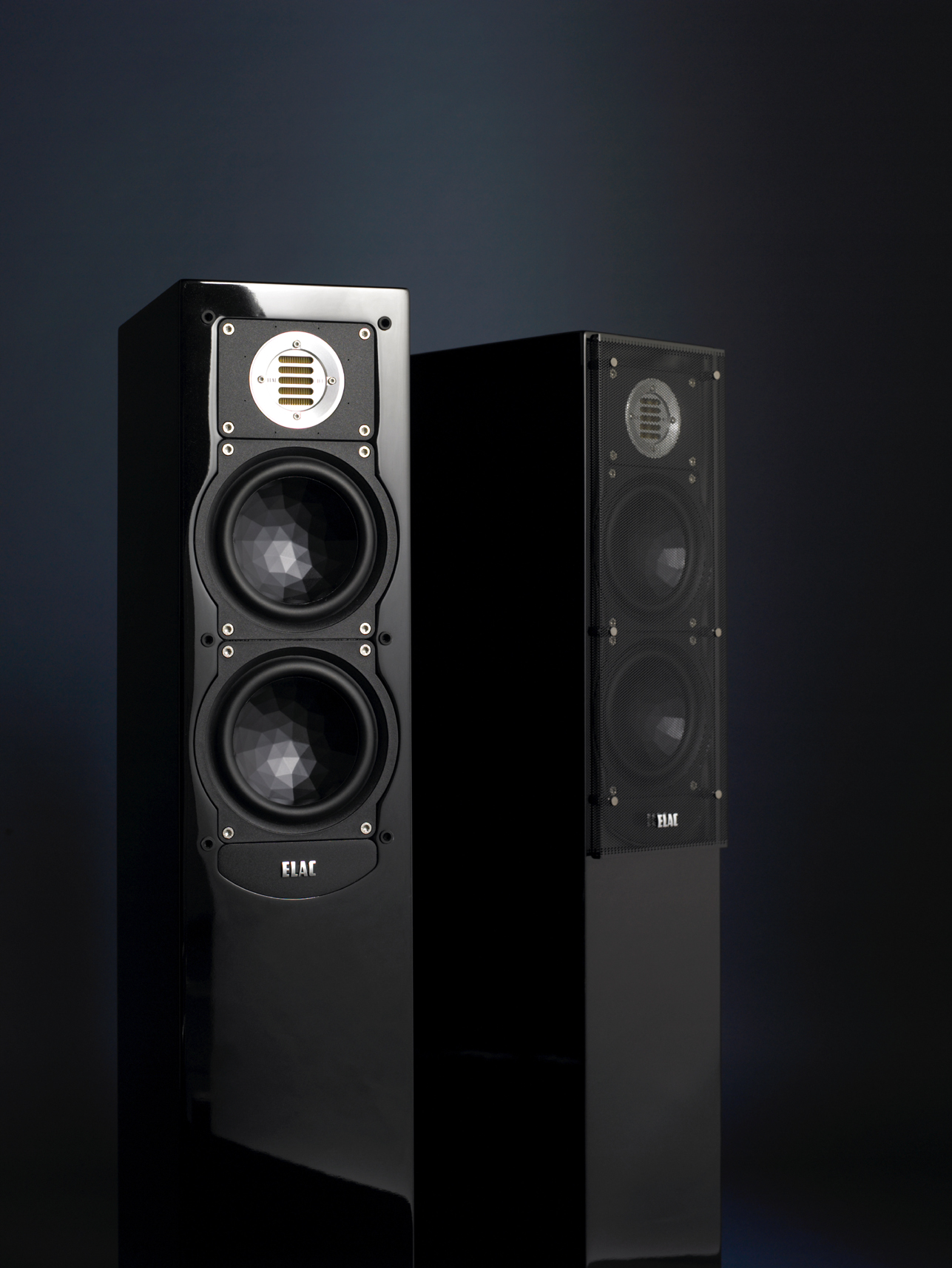

FS 247 Sapphire Edition: handmade by German craftsmen

The FS 247 Sapphire Edition is an improved version of ELAC's renowned FS 247 floorstanding loudspeakers. The FS 247 has consistently received rave reviews and garnered prizes worldwide.

Now with the release of the Sapphire Edition the FS 247 has taken on a new level of luxury, radiating pure elegance with its shiny black, highgloss cabinet and high-quality metal grilles.

The updated crossover network has been fitted with top-class components and the internal wiring is provided by the UK's Chord Cable Company.

These technical refinements, together with the high tech drivers, which of course come from ELAC's own in-house development and production facilities, combine to create an extraordinary speaker that sounds as good as it looks.

Specifications

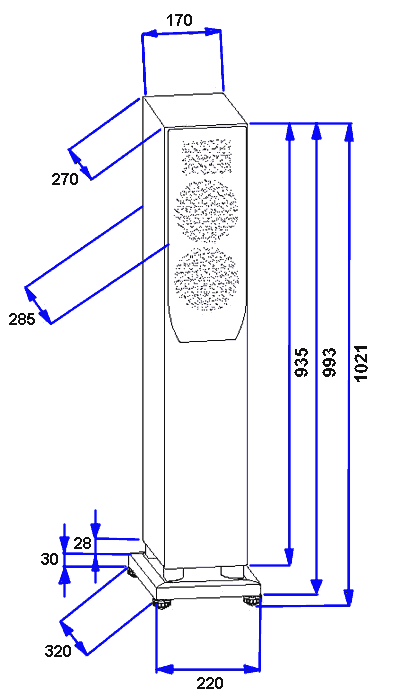

Dimensions H × W × D
1021 × 170 × 270 mm Details
220 × 320 mm base plate



Gross Volume
45.3 l
Weight
17 kg
Principle
2½-ways, bass reflex
Woofer
Bass Ports
2 × 150 mm AS-XR cone (mag. shielded)
1 × 60 mm (with Bass Control Plug)
1 × 100 mm (down firing)
Tweeter
1 × JET III (mag. shielded)
Recom. Amplifier Power
at Nominal Impedance
30-250 W / channel
Crossover Frequency
450 / 2,500 Hz
Sensitivity
89 dB / 2.83 V / 1 m
Nominal Impedance
suitable for amplifiers (from ... to)
4 Ohm
4 ... 8 Ohm
Minimum Impedance
3.4 Ohm / 210 Hz
Frequency Range acc. to IEC 268-5
30 ··· 50,000 Hz
Nominal / Peak Power Handling
120 / 160 W
Finishes
sapphire black
ELAC FS 247 brochure

Treble Unit

JET III used in all 240 Series range.

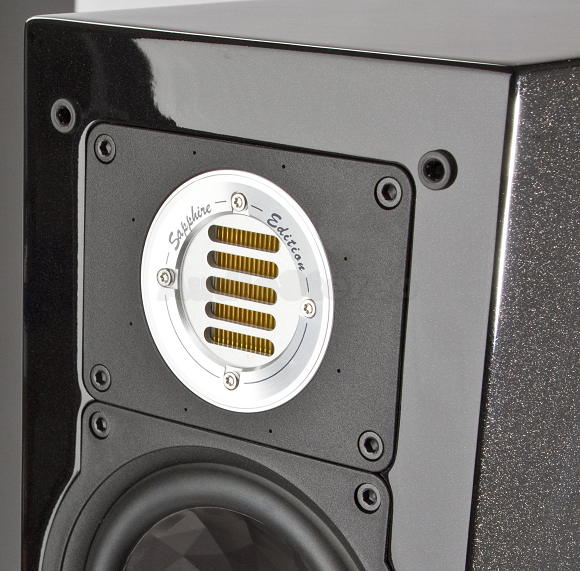

ELAC FS 247 Sapphire Edition - JET III tweeter

The ELAC JET tweeter is one of the most legendary tweeters in the hi-fi trade and has won international renown with its unusual transparent and effortless sound image.

The JET tweeter was delveloped to perfection on the basis of the famous 'Air Motion Transformer' by loudpseaker pioneer Dr Oskar Heil. Its principle: a concertinaed foil membrane is driven by a strong magnet system of neodymium rods.

This 'motor' drives the air considerably faster than the conventional pistonic technique. High sensitivity and extraordiary dynamics are the result. Due to continuous improvement, the JET III tweeter creates an effortless and airy resonance-free image up to 50,000 Hz, and with its linear frequency response is ideally suited for the reproduction of Hi-Res Audio music.

ELAC JET DC (Dispersion Control) ring
ELAC JET DC (Dispersion Control) ring
The ELAC "JET Dispersion Control DC" is a flat ring made of open-cell rubber foam which is mounted around the JET orifice with four clasps (or with adhesive tape).

The JET DC results in a broadband reduction of about 0.5 dB of the radiated sound level nearly independent of frequency. The JET DC is best suited for rooms with little sound absorption at high frequencies, especially for rooms with large windows without curtains or with a smooth floor without a carpet.

All loudspeakers of the 240 series are supplied with the JET Dispersion Control as an accessory.

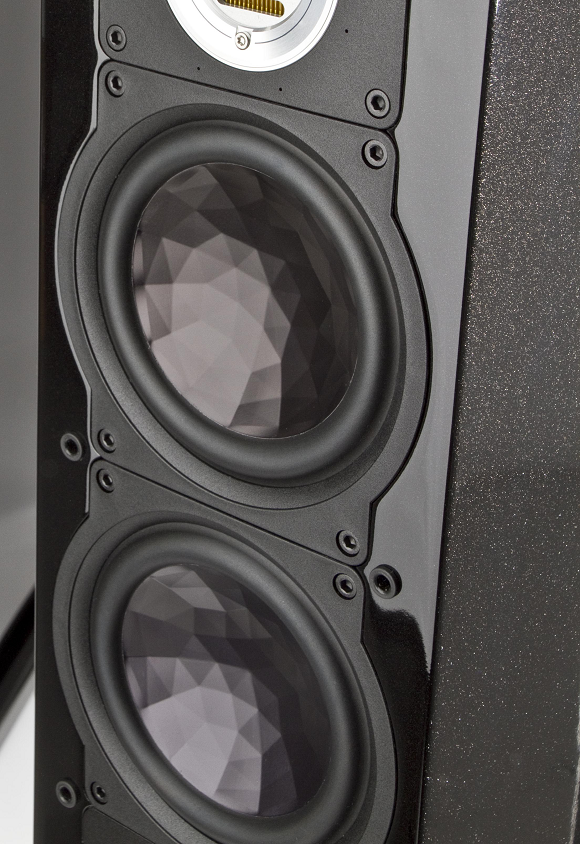

Midbass Unit

TT 150 AS-XR sapphire midbass used in: FS 247 SE.

All woofers and midrange drivers of the 240 series contain the new "Crystal Membrane" (patent pending) and their design is based on the well-known "Aluminium-Sandwich AS Technology" which was developed by ELAC a couple of years ago. The crystal-shaped inverse aluminium dome is joined to the paper cone in a special glueing process resulting the desired sandwich construction.

The stamping of the aluminium foil looks like the surface of a large crystal, this is where the term "Crystal Membrane" come from. This stamping stiffens the aluminium dome considerably which diminishes the membrane-internal resonances resulting in less sound coloration and additionally improves the large signal behaviour noticeably.

The voice coil is not only - like usually - joined to the neck of the paper cone but also to the bottom of the aluminium dome. This design results in the expansion of the transmission range of the respective woofers or midrange drivers by nearly an octave. Therefore the abbreviation "XR" (eXtended Range) has been introduced.

ELAC FS 247 Sapphire Edition - TT 150 AS-XR midbass driver
