Element EA101EQ-G

ELAC Element EA101EQ-G Integrated Amplifier side

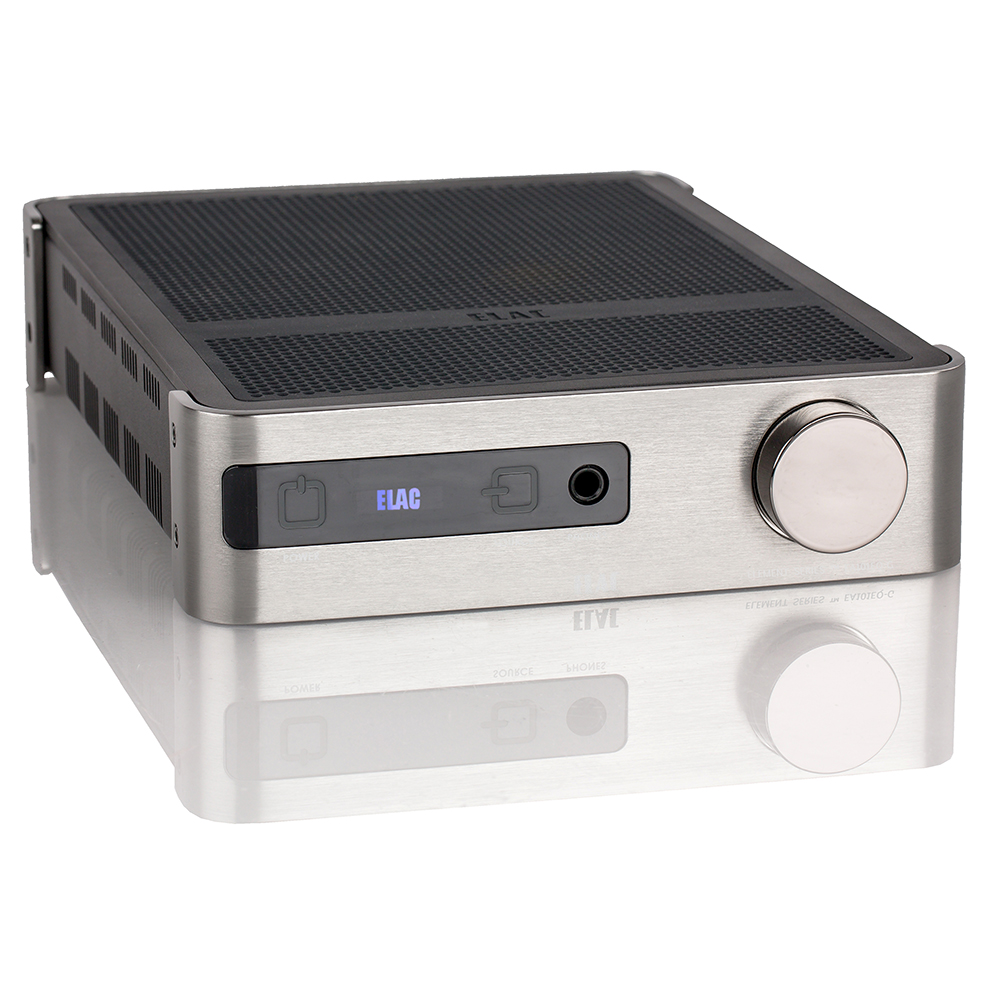

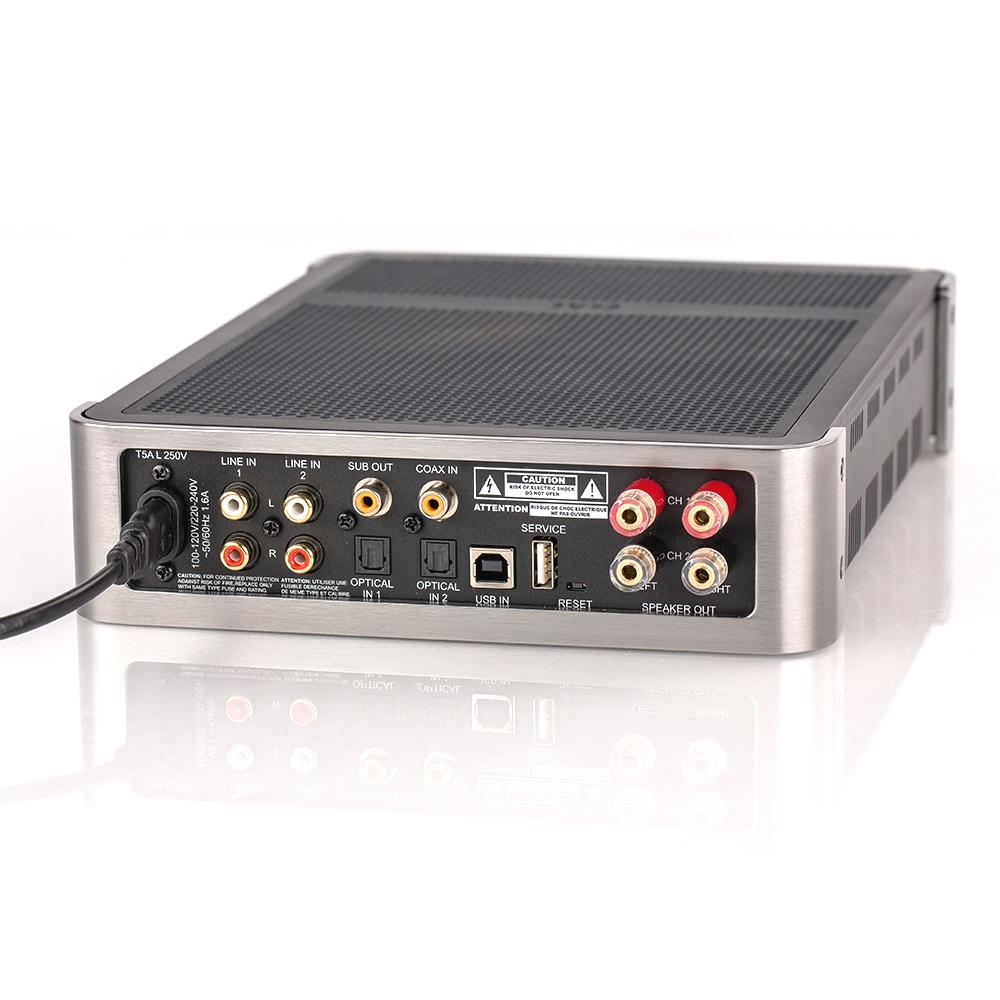

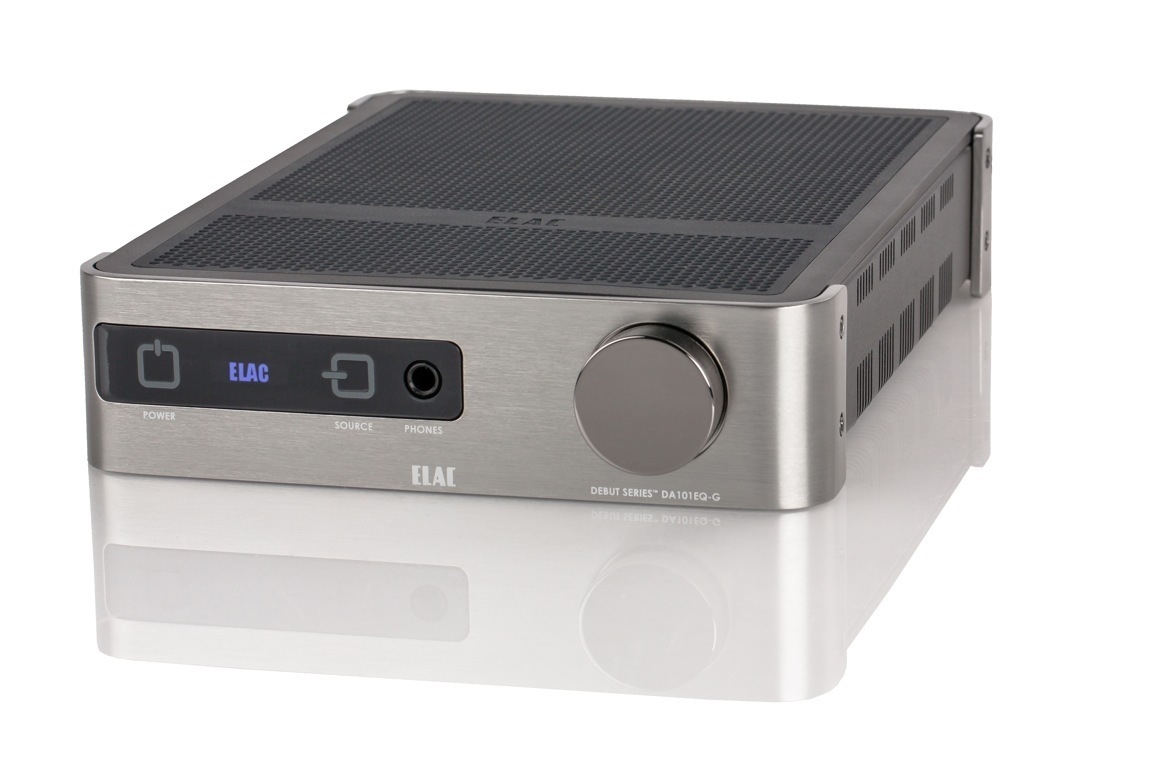

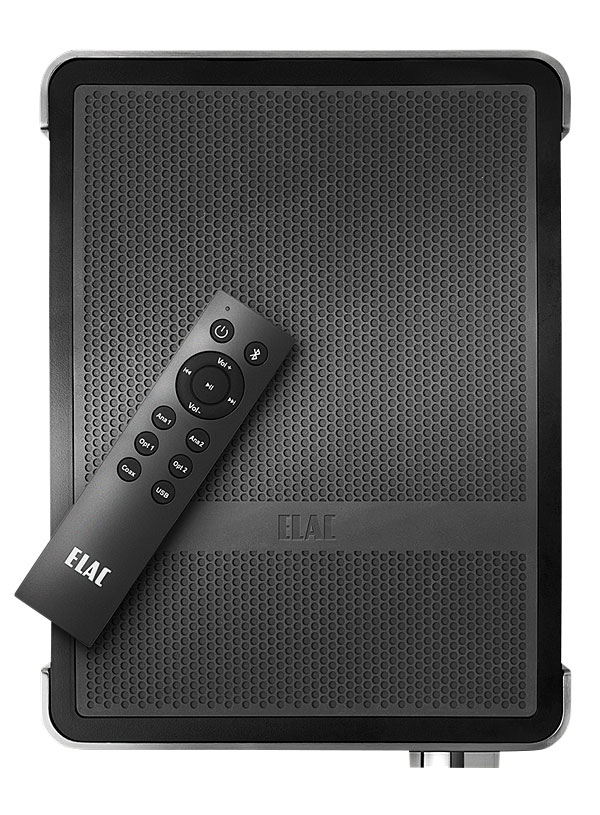

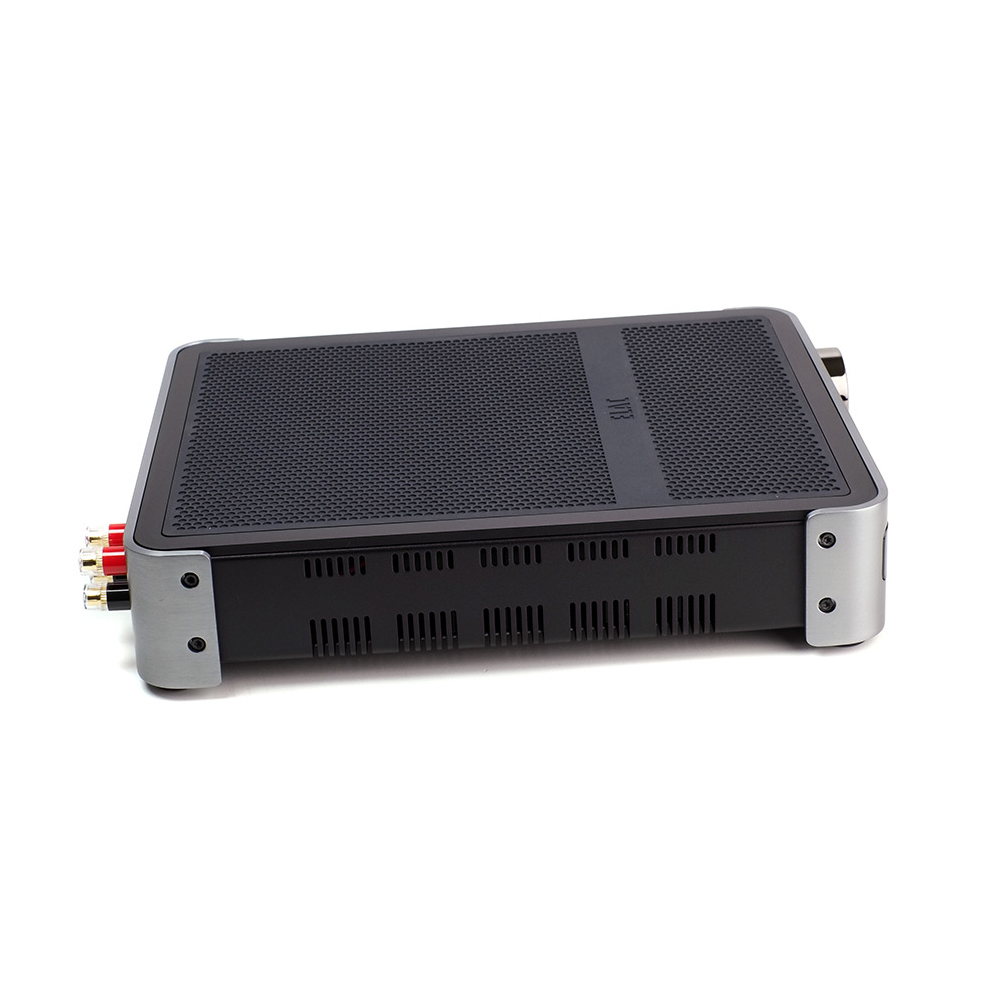

ELAC Element EA101EQ-G Integrated Amplifier side ELAC Element EA101EQ-G Integrated Amplifier front ELAC Element EA101EQ-G Integrated Amplifier back ELAC Element EA101EQ-G Integrated Amplifier top


Changes the rules of engagement: 80 Watt-per-channel integrated amp with DSP

This integrated amplifier marks ELAC’s return to the amplifier category. The EA Series EA101EQ-G Integrated Amplifier solves two of the biggest problems with two-channel audio: proper blending of a subwoofer with your main speakers and room correction. Our advanced DSP and innovative smartphone application provide all the tools necessary for anyone to achieve a true audiophile system at an affordable price.

The EA101EQ-G makes quite a statement and is guaranteed to change the rules of the game for integrated amplifiers, with sound quality and feature-rich control flexibility that make it the go-to solution for a no-compromise sound system. Once you experience what it can do—especially with the new Debut, Uni-Fi, or Line 240.3 loudspeakers—your world of sound just might be altered forever.

Technical Information

Amplifier: BASH Digital Fidelity Tracking Amplifier
Power output Continuous (@ 1kHz 2 channels driven): 2 x 80 Watts into 4 ohms, 2 x 40 Watts into 8 ohms, 2 x 70 Watts into 2 ohms
Power output burst (CEA 2010 @ 1kHz 1 channel driven): 120 Watts into 4 ohms @ 1kHz, 65 Watts into 8 ohms @ 1kHz, 170 Watts into 2 ohms @ 1kHz
Power and THD+N, 1kHz: 4 ohms 70 Watts @ .07%, 8 ohms 40 Watts @ .03%
Signal-to-Noise Ratio (Full Power Digital input): 101dB
Broadband Frequency Response: 20Hz to 40kHz +/- 1.8dB
Analog inputs: 2x Stereo RCA
Digital inputs: 1x coaxial, 2x optical (192kHz 24-bit), 1x USB (192kHz 24-bit asynchronous)
Outputs: 2x Speaker Output, 1x Subwoofer Output, 1x Headphone output (100mW @ 16 ohms)
Bluetooth audio: Yes with aptX
Audio Decoding: Dolby Digital
Display: OEL
App Control: iOS and Android control app
Room Correction: ABC (Auto Blend & Calibrate)
Power Consumption: Power Off 120Vac: .86W, Auto Off 120Vac: 5.45W
Dimensions (W x H x D): 22 x 5.4 x 30 cm
Weight: 2.3kg
Available finishes: Silver

ELAC Element EA101EQ-G brochure ELAC Element EA101EQ-G manual
Brochure Manual
