Cyrus DAC X+ Features:
- True balanced DAC tuned to produce the purest Cyrus sound
- All digital inputs are upsampled to 24bit/192kHz. - The D/A converter will upgrade any digital source
- Sophisticated re-clocking circuit - High accuracy sources are digitally re-clocked by a close tolerance circuit with triple quartz references ensuring low jitter
- True balanced topology throughout - Fully balanced topology from the digital domain to the analogue output stage
- Dual mono DAC cards - Dual mono design improves the focus and the the clarity of the system
- Expertly designed PSU - The power supply is cascaded through a number of sophisticated regulation stages and isolation techniques that ensure each section receives an unrestricted, noise free, power supply
- Extensive PSU refinements - Greater resolution from the analogue stages, the subtlety and emotion of the musical performance is preserved
- Extensive use of Star-earthing - Ability to resolve to very low signal levels
- Optically isolated digital control system - Control signals have no influence on the music signal
- PSX-R₂ socket to upgrade for greater resolution and dynamics
 |
 |

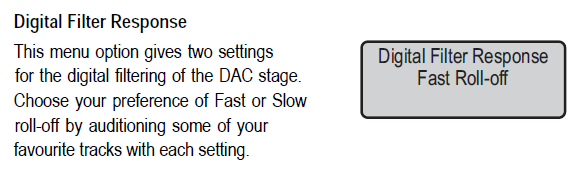

- Digital Filter Response: Fast or Slow roll-off - Gives two settings for the digital filtering of the DAC stage.
Choose your preference of Fast or Slow roll-off by auditioning some of your
favourite tracks

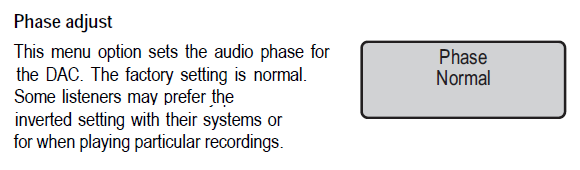

- Phase adjust: Normal or Inverted - Sets the audio phase for the DAC. Some listeners may prefer the inverted setting with their systems or
for when playing particular recordings

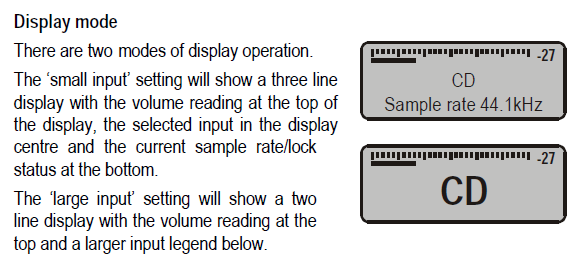

- Operation display mode: Small input or Large input
Product Overview

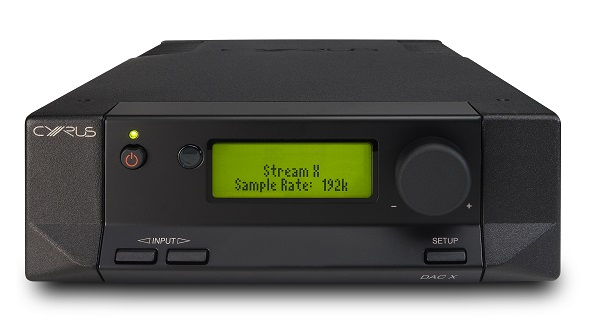

The DAC X+ upsampling audio D/A converter features dual mono DACs and a balanced audio design throughout the analogue domain. The DAC X+ is a high-end upgrade for a CD transport or other digital audio sources, connecting between the digital outputs of the sources and a preamplifier.

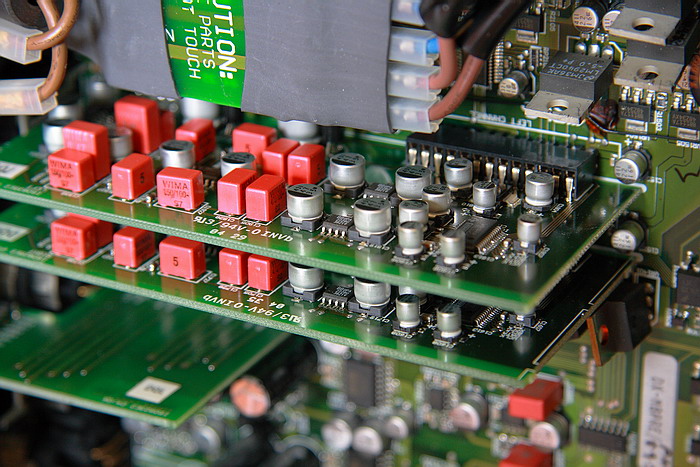

Inside, four fully balanced 24-bit DAC chips convert digital sources to analogue in a process which has been painstakingly designed and tested to ensure high definition sound quality, no interference and no distortion.
|
DAC X+: |

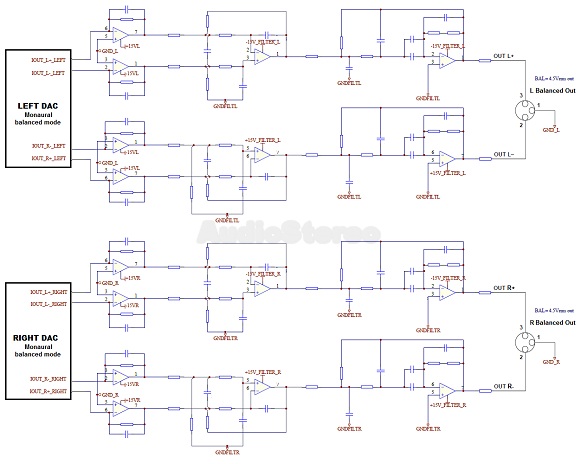

Dual mono, four 24bit/192kHz DACs balanced design - Low noise, 4 pole balanced analog filter - Expertly designed power supply, sophisticated regulation stages |
|
Technical Information
Specifications
Digital Input: 500mV pk-pk 75 Ω
Digital Output: 500mV pk-pk 75 Ω
Sample rate tolerance: +/-1 00ppm of 32/44.1 /48kHz and multiples to 192k
Sample rate tolerance (wide): Any sample rate in range 32k – 192k
Fixed Out Level: 2.3V
Balanced Out Level: 4.6V
Output Impendance:
47Ω
THD+N: 0.002% (0dBFS)
S/N ratio: 115dBA (PCM in, 0dBFS)
Dimensions (H x W x D): 73 x 215 x 360 mm
Finish: Brushed black, Quartz silver
Weight: 3.8kg

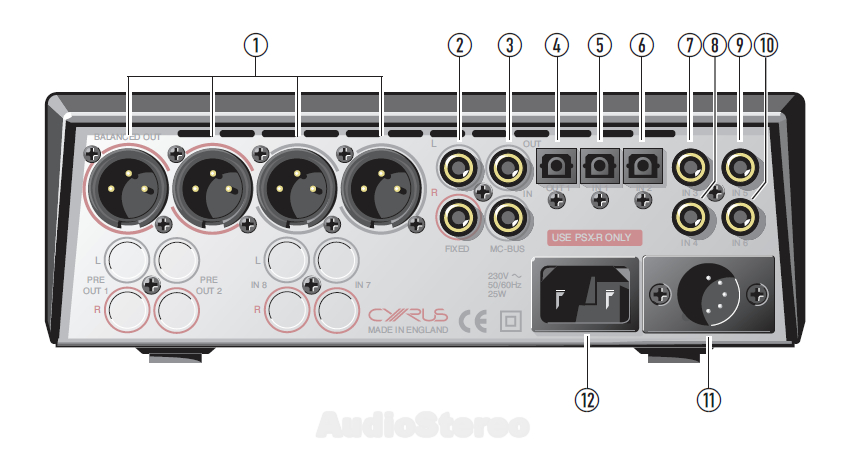

Inputs
Digital Inputs - 6 SPDIF (4 coaxial + 2 optical)
Outputs
Analogue Outputs (unbalanced) - 1 stereo line output (via RCA jacks)
Analogue Outputs (balanced) - 2 stereo line outputs (via XLR)
Digital Outputs - 1 SPDIF (optical)
Construction
Enclosure: Cyrus Inverted die-cast chassis
Material: Lightweight non-magnetic alloy
Internal power Supplies
1 x 75 VA Toroidal transformer
Twin windings dedicated to the digital and analogue DAC sections
Entirely separate power regulation for the DAC and analogue filter sections
Two-stage
regulation is used for critical stages with remote shunt regulators located within the heart of the audio
circuitry.
External power Supplies
Highly regulated PSX-R₂ upgradeable
Communications
MC-BUS™ System BUS |
